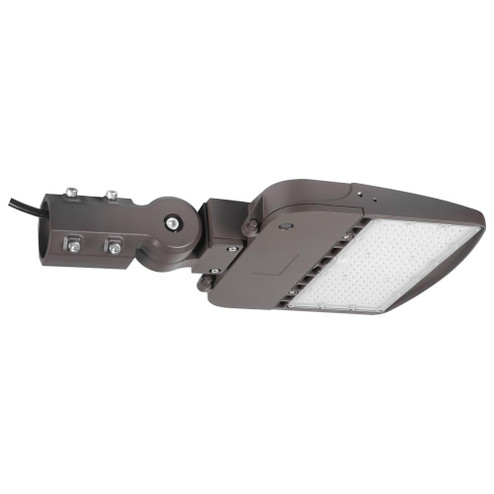

LED Area Light Type III; 100W; Bronze Finish; 4000K; 120-277V {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- BULB HOURS:
- 50000
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.42.6000
- LENGTH:
- 20.71
- LUMENS:
- 13793L
- SHIP CARTON HEIGHT:
- 5.71''
- SHIP CARTON LENGTH:
- 23.23
- SHIP CARTON WIDTH:
- 14.37''
- SHIP WEIGHT:
- 8.289999999999999
- WARRANTY:
- 5-YEARS
- CARTON CUBIC FEET:
- 1.1031
- CARTONS PER UNIT:
- 1
- COLOR TEMPRATURE:
- COOL WHITE
- CRI:
- 80+
- DIMMABLE FUNCTION:
- 0-10V DIMMING
- DLC APPROVED:
- YES
- DLC ID:
- PLVSBYUF3507
- IP RATING:
- IP65
- LOCATION RATING:
- WET
- OPERATING TEMP:
- -40C (-40F) TO +45C (+113F)
- PACK TYPE:
- BOX
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 4KV
- QUANTITY AVAILABLE AT MANUFACTURER:
- 204
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 3.11
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 12.40
- PHOTOCELL:
- OPTIONAL
- ANSI BASE:
- INTEGRATED
- B_U_G_RATING:
- B3-U2-G3
- CCT SELECTABLE:
- NO
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- DARK SKY RATED:
- NO
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- OUTDOOR POLE/ARM-MOUNTED AREA AND ROADWAY LUMINAIRES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- MAINTENANCE FREE - NO BULB TO CHANGE
- FEATURE 2:
- DIE-CAST ALUMINUM BODY
- FEATURE 3:
- UV STABILIZED POWDER COASTED BRONZE FINISH
- FEATURE 4:
- SLIP-FITTER MOUNT INCLUDED
- FEATURE 5:
- IP65 RATED
- FEATURE 6:
- MULTIPLE MOUNTING OPTIONS AVAILABLE
- FEATURE 7:
- ADD-ON SENSORS AVAILABLE
- FINISH:
- BRONZE
- HID EQUIV:
- 250W
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- IOT ENABLED:
- NO
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- SATCO NUVO'S 65-840 100W LED AREA LIGHT TYPE III PROVIDES COOL WHITE LIGHT ENGINEERED FOR THE HIGHEST PERFORMANCE IN MULTIPLE APPLICATIONS. THE LAMP'S HIGH LUMEN COUNT PROVIDES SUPERIOR ILLUMINATION. SATCO NUVO'S LED AREA LIGHTS BUILT US...
- MATERIAL:
- DIE-CAST ALUMINUM
- OPERATING FREQUENCY:
- 50/60HZ
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 4000K
- WEIGHT LB.:
- 7.88
- STYLE:
- UTILITY
- AMPS:
- 1.000-0.361A
- SDS SHEET LINK:
- #REF!
- IMPACT RATING (IK):
- IK10
- BULB KELVIN:
- COOL WHITE
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- LAWFUL FOR SALE
- OPERATING TEMPRATURE:
- -40C (-40F) TO +45C (+113F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CULUS - CERTIFIED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- WIDTH RANGE:
- 20-25''
- IMAGE INFO:
- ''65-840.JPG:DEFAULT''
- ADDITIONAL INFO:
- POWDER COATED
- INCLUDES:
- 2-3/8 INCH SLIP-FITTER MOUNT
- SPECIFICATION NOTES:
- TYPE III LIGHT DISTRIBUTION
- More Info {1}:
- ADD-ON SENSORS AVAILABLE
- More Info {2}:
- DIE-CAST ALUMINUM BODY
- More Info {3}:
- IP65 RATED
- More Info {4}:
- MAINTENANCE FREE - NO BULB TO CHANGE
- More Info {5}:
- MULTIPLE MOUNTING OPTIONS AVAILABLE
- More Info {6}:
- SLIP-FITTER MOUNT INCLUDED
- CONNECTION:
- HARDWIRE
- WATTAGE SELECTABLE:
- NO
- INCANDESCENT EQUIVALENT:
- 500W
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- COOL WHITE
- EACH HEIGHT:
- 5.71''
- EACH LENGTH:
- 23.23
- EACH WIDTH:
- 14.37''
- TARIFF CODE:
- 9405.42.6000
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 1.1031
- EACH QUANTITY:
- 1
- EFFICACY:
- 137.93 LPW
- JA8 COMPLIANT:
- NO
- R9 VALUE:
- 12
- ROMANCE COPY:
- SATCO NUVO'S LED AREA LIGHT TYPE III PROVIDES COOL WHITE LIGHT ENGINEERED FOR THE HIGHEST PERFORMANCE IN MULTIPLE APPLICATIONS. THE LAMP'S HIGH LUMEN COUNT PROVIDES SUPERIOR ILLUMINATION. SATCO NUVO'S LED AREA LIGHTS BUILT USING DIE CAST...
- SHORT DESCRIPTION:
- 100W LED AREA LIGHT TYPE III
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 15%
- MOUNTING PROCEDURE:
- WALL/PIPE ARM
- ORDER IN MULTIPLES OF:
- 1
- STANDARD STYLE:
- PATH LIGHTS
- CATEGORY:
- OUTDOOR
- SUB CATEGORY:
- AREA LIGHT
- COUNTRY OF ORIGIN:
- VIETNAM
- 5/2/2025 14:
- 17
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
