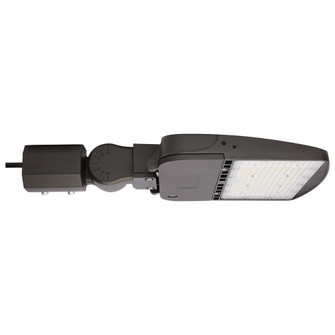

LED Area Light Type III; 100W; Bronze Finish; 4000K; 277-480V {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- BULB HOURS:
- 50000
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.42.6000
- LENGTH:
- 20.71
- LUMENS:
- 13793L
- SHIP CARTON HEIGHT:
- 5.71''
- SHIP CARTON LENGTH:
- 23.23
- SHIP CARTON WIDTH:
- 14.37''
- SHIP WEIGHT:
- 8.289999999999999
- WARRANTY:
- 5 YEAR LIMITED - FIXTURES
- CARTON CUBIC FEET:
- 1.1031
- CARTONS PER UNIT:
- 1
- COLOR TEMPRATURE:
- COOL WHITE
- CRI:
- 80
- DIMMABLE FUNCTION:
- 0-10V DIMMING
- DLC APPROVED:
- YES
- DLC ID:
- PL5AI0EPHH72
- IP RATING:
- IP65
- LOCATION RATING:
- WET
- OPERATING TEMP:
- -40C (-40F) TO +45C (+113F)
- PACK TYPE:
- BOX
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 4KV
- QUANTITY AVAILABLE AT MANUFACTURER:
- 76
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 3.11
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 12.40
- PHOTOCELL:
- OPTIONAL
- ANSI BASE:
- INTEGRATED
- B_U_G_RATING:
- B3-U2-G3
- CCT SELECTABLE:
- NO
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- DARK SKY RATED:
- NO
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- OUTDOOR POLE/ARM-MOUNTED AREA AND ROADWAY LUMINAIRES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- MAINTENANCE FREE - NO BULB TO CHANGE
- FEATURE 2:
- DIE-CAST ALUMINUM BODY
- FEATURE 3:
- UV STABILIZED POWDER COASTED BRONZE FINISH
- FEATURE 4:
- SLIP-FITTER MOUNT INCLUDED
- FEATURE 5:
- IP65 RATED
- FEATURE 6:
- MULTIPLE MOUNTING OPTIONS AVAILABLE
- FEATURE 7:
- ADD-ON SENSORS AVAILABLE
- FINISH FAMILY:
- BRONZE
- HID EQUIV:
- 250W
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- IOT ENABLED:
- NO
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- SATCO
- MATERIAL:
- DIE-CAST ALUMINUM
- OPERATING FREQUENCY:
- 50/60HZ
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 4000K
- WEIGHT LB.:
- 7.88
- STYLE:
- UTILITY
- AMPS:
- 0.361-0.208A
- SDS SHEET LINK:
- #REF!
- IMPACT RATING (IK):
- IK10
- BULB KELVIN:
- COOL WHITE
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- LAWFUL FOR SALE
- OPERATING TEMPRATURE:
- -40C (-40F) TO +45C (+113F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CULUS - CERTIFIED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- WIDTH RANGE:
- 20-25''
- IMAGE INFO:
- ''''
- ADDITIONAL INFO:
- POWDER COATED
- INCLUDES:
- 2-3/8 INCH SLIP-FITTER MOUNT
- SPECIFICATION NOTES:
- TYPE III LIGHT DISTRIBUTION
- More Info {1}:
- ADD-ON SENSORS AVAILABLE
- More Info {2}:
- DIE-CAST ALUMINUM BODY
- More Info {3}:
- IP65 RATED
- More Info {4}:
- MAINTENANCE FREE - NO BULB TO CHANGE
- More Info {5}:
- MULTIPLE MOUNTING OPTIONS AVAILABLE
- More Info {6}:
- SLIP-FITTER MOUNT INCLUDED
- CONNECTION:
- HARDWIRE
- WATTAGE SELECTABLE:
- NO
- INCANDESCENT EQUIVALENT:
- 500W
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- COOL WHITE
- EACH HEIGHT:
- 5.71''
- EACH LENGTH:
- 23.23
- EACH WIDTH:
- 14.37''
- TARIFF CODE:
- 9405.42.6000
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 1.1031
- EACH QUANTITY:
- 1
- EFFICACY:
- 137.93 LPW
- JA8 COMPLIANT:
- NO
- R9 VALUE:
- 15
- ROMANCE COPY:
- SATCO
- SHORT DESCRIPTION:
- 100W LED AREA LIGHT TYPE III
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 8.90%
- MOUNTING PROCEDURE:
- WALL/PIPE ARM
