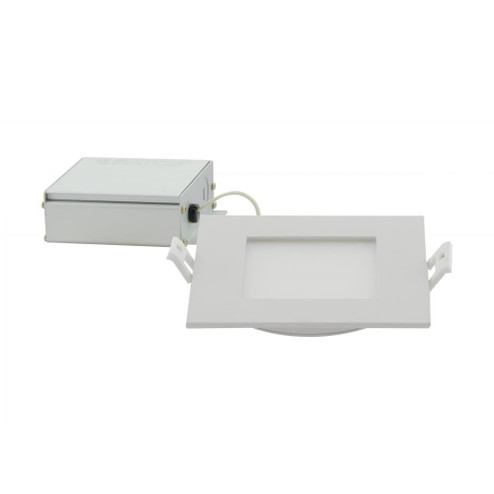

10 Watt; LED Direct Wire Downlight; Edge-lit; 4 inch; CCT Selectable; 120 volt; Dimmable; Square; Remote Driver {ADDITIONAL FINISH INFORMATION: ''White''}
- BULB DIMMABLE:
- Yes - Dimmable
- BULB HOURS:
- 50000
- BULB TYPE:
- LED
- HARMONIZED CODES:
- 9405.11.8010
- LENGTH:
- 4.72
- LUMENS:
- 650L
- SHIP CARTON HEIGHT:
- 5.39''
- SHIP CARTON LENGTH:
- 6.65
- SHIP CARTON WIDTH:
- 2.36''
- WARRANTY:
- 5 Year Limited - Fixtures
- BEAM SPREAD:
- 108
- CA PROP-65:
- Lead
- CARTON CUBIC FEET:
- 0.049
- CARTONS PER UNIT:
- 1
- CEC:
- CALIFORNIA T24 2016 - 2022 JA8 LISTED
- CEC TERSE:
- Lawful for sale in California
- CEC WEB TEXT:
- California T24 Listed
- CEILING APERTURE:
- 4.25 in. Cutout
- CRI:
- 90
- INCANDESCENT EQUIVALENT:
- 45W
- IP RATING:
- IP20
- MAX DRYWALL THICKNESS:
- 1/2 in.
- OPERATING TEMPRATURE:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- Box
- REPLACES:
- S11609 S11610 S11611
- SAFETY LISTING:
- CETLUS - LISTED
- HEIGHT:
- 0.90
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 4.72
- WIDTH RANGE:
- 0-15''
- CEILING:
- YES
- WALL:
- YES
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- BULB KELVIN:
- Warm to Cool White
- DIMMABLE:
- Yes-Dimmable
- DIMMABLE TYPE:
- Reverse Phase Dimmer
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- BULB SHAPE:
- Integrated LED
- REPLACEABLE LIGHT SOURCE:
- No
- AVAILABLE FOR PURCHASE:
- NO
- DIMMABLE FUNCTION:
- DIMMING RANGE FROM 100 TO LESS THAN OR EQUAL TO 20 PERCENT DEPENDING ON DIMMER CONTROL
- QUANTITY AVAILABLE AT MANUFACTURER:
- 2035
- ADDITIONAL INFO:
- CANDLEPOWER: 230
- ANSI BASE:
- INTEGRATED
- CANDLE POWER:
- 230
- CCT SELECTABLE:
- YES
- CLEARANCE HEIGHT:
- 2''
- CONNECTION:
- DIRECT WIRED
- DIMMING TYPE:
- REVERSE PHASE OR PHASE SELECTABLE
- ES UNIQUE ID:
- ESID-2369680
- FCC COMPLIANT:
- YES
- FEATURE 1:
- COLORQUICK CCT SELECTABLE
- FEATURE 2:
- 90 CRI
- FEATURE 3:
- WET LOCATION RATED
- FEATURE 4:
- DIMMABLE
- FEATURE 5:
- IC RATED
- FEATURE 6:
- AIR TIGHT RATED
- FINISH FAMILY:
- WHITE
- FIXTURE SHAPE:
- SQUARE
- HAS DRIVER:
- YES
- IC RATED:
- YES
- INDOOR OUTDOOR:
- INDOOR
- LENS FINISH:
- FROST
- LENS MATERIAL:
- POLY METHYL METHACRYLATE (PMMA)
- LONG DESCRIPTION:
- SATCO
- MATERIAL:
- ALUMINUM
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- OPERATING FREQUENCY:
- 60HZ
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- REC SPACING BETWEEN FIXTURES:
- 3 FT. TO 4 FT.
- ROHS COMPLIANT:
- YES
- SLOPED CEILING COMPATIBLE:
- NO
- SPECIFICATION NOTES:
- LUMENS (L) VARY WITH COLOR TEMPERATURE (K): 2700K 600L / 3000K 620L / 3500K 650L / 4000K 650L / 5000K 630L
- TEMPERATURE (CCT):
- 2700K/3000K/3500K/4000K/5000K
- TRIM COLOR:
- WHITE
- WEIGHT LB.:
- 0.77
- LAMPS:
- YES
- STYLE:
- UTILITY
- AMPS:
- 0.083A
- CAN SIZE:
- 4 IN.
- More Info {1}:
- CANDLEPOWER: 230
- More Info {2}:
- ENERGY STAR RATED AND TITLE 24 COMPLIANT
- More Info {3}:
- FIVE COLOR TEMPERATURE SETTINGS
- More Info {4}:
- LUMENS (L) VARY WITH COLOR TEMPERATURE (K): 2700K 600L / 3000K 620L / 3500K 650L / 4000K 650L / 5000K 630L
- More Info {5}:
- NO RECESSED CAN REQUIRED
- More Info {6}:
- WET LOCATION RATED
- INSTALLATION NOTES:
- **IF YOU PURCHASE THE 5W EMERGENCY DRIVER (S8000) OR THE 10W EMERGENCY DRIVER (S8002) YOU MUST ALSO PURCHASE THE EMERGENCY DRIVER ENCLOSURE (80-973)
- SDS CLASS:
- LED_LAMP
- FEATURE 10:
- 120V
- FEATURE 7:
- TITLE 24 COMPLIANT
- FEATURE 8:
- ENERGY STAR CERTIFIED
- FEATURE 9:
- 108-DEGREE BEAM ANGLE
- WATTAGE SELECTABLE:
- NO
- IMAGE INFO:
- ''''
- AIR TIGHT:
- YES
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EFFICACY:
- 65.00 LPW
- JA8 COMPLIANT:
- YES
- R9 VALUE:
- 51
- ROMANCE COPY:
- SATCO
- SHORT DESCRIPTION:
- 10WLED/DW/EL/4/CCT-SEL/SQ/RD
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- YES
- TOTAL HARMONIC DISTORTION:
- <20%
- TRIM MATERIAL:
- ALUMINUM
