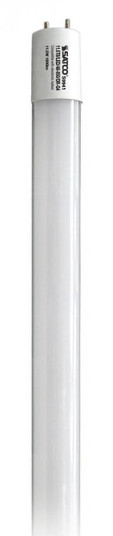

11.5 Watt T8 LED; Medium bi-pin base; 5000K; 50000 Average rated hours; 1800 Lumens {ADDITIONAL FINISH INFORMATION: ''White''}
- BULB DIMMABLE:
- YES-DIMMABLE
- BULB HOURS:
- 50000
- BULB KELVIN:
- 5000K
- BULB SHAPE:
- T8
- DIAMETER:
- 1
- HARMONIZED CODES:
- 8539.50.0051
- LENGTH:
- 48
- LUMENS:
- 1800L
- SHIP CARTON HEIGHT:
- 1''
- SHIP CARTON LENGTH:
- 47.7
- SHIP CARTON WIDTH:
- 1''
- SHIP WEIGHT:
- 0.51
- WARRANTY:
- 5 Year Limited - T8 LED Bulbs
- BEAM SPREAD:
- 220
- BULB ANSI BASE:
- G13
- BULB BASE:
- Medium Bi Pin
- BULB FINISH:
- Gloss White
- CARTON CUBIC FEET:
- 0.0276
- CARTONS PER UNIT:
- 1
- CEC:
- Exempt - Base Not Regulated
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- COLOR TEMPRATURE:
- Natural Light
- CRI:
- 82
- DLC APPROVED:
- NO
- DLC ID:
- P5CMBUYB
- FLUORESCENT EQUIVALENT:
- 25W-32W
- LAMP FILAMENT:
- LED
- LENS:
- YES
- LOCATION RATING:
- Damp
- NOMINAL LENGTH:
- 48
- NSF APPROVED:
- YES
- OPERATING TEMP:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- Sleeve
- WATTS:
- 11.5W
- WIDTH:
- 1.00
- WIDTH RANGE:
- 0-15''
- LAMPS:
- YES
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- DIMMABLE:
- Yes-Dimmable
- More Info {1}:
- Check Ballast MFG for Dimmer Compatibility Only in Type A mode
- DIMMABLE TYPE:
- Ballast Dependent
- DIMMABLE FUNCTION:
- ONLY IN TYPE A MODE CHECK BALLAST MFG FOR DIMMER COMPATIBILITY
- AVAILABLE FOR PURCHASE:
- NO
- QUANTITY AVAILABLE AT MANUFACTURER:
- 196
- FCC COMPLIANT:
- YES
- LENS FINISH:
- GLOSS WHITE
- ORDER IN MULTIPLES OF:
- 10
- POWER FACTOR:
- 0.96
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SDS SHEET LINK:
- SDS/LED_LAMP.PDF
- TECHNOLOGY:
- LED
- CCT SELECTABLE:
- NO
- BURNING POSITION:
- UNIVERSAL
- BALLASTING REQUIREMENTS:
- MAY NOT BE COMPATIBLE WITH ALL RAPID START BALLASTS DIRECT REPLACEMENT-FOR USE ON INSTANT STARTAND RAPID START BALLASTS WITH NO REWIRING REQUIRED
- LAMP BALLAST TYPE A/B/C:
- TYPE A
- WATTAGE SELECTABLE:
- NO
- ENCLOSURE RATING:
- 0
- BAA COMPLIANT:
- NO
- INCANDESCENT EQUIVALENT:
- 60W
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EFFICACY:
- 156.52 LPW
- SHORT DESCRIPTION:
- 11.5T8/LED/48-850/DR-DM
- TITLE 20 COMPLIANT:
- NO
- EA LENGTH:
- 47.7
- SHAP CARTON WIDTH:
- 1''
- BALLAST BYPASS DIRECT:
- DIRECT
- FLOURESCENT EQUIVALENT:
- 25W-32W
- INSTALLATION NOTES:
- NOT FOR USE IN VAPOR TIGHT FIXTURES.
