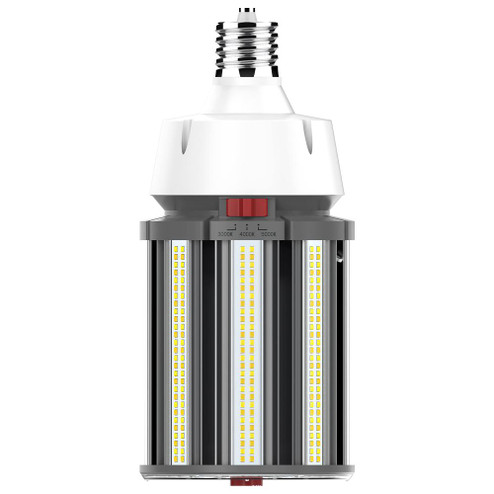

120/100/80 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Extended Mogul base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- NO
- BULB HOURS:
- 50000
- BULB KELVIN:
- 3000K/4000K/5000K
- DIAMETER:
- 5.11
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 8539.52.0091
- LENGTH:
- 11.33
- LUMENS:
- 16800L/14000L/11200L
- SHIP CARTON HEIGHT:
- 5.51''
- SHIP CARTON LENGTH:
- 12.99
- SHIP CARTON WIDTH:
- 5.51''
- SHIP WEIGHT:
- 4.07
- VOLTS:
- 120V-277V
- WARRANTY:
- 5-YEARS
- WEIGHT:
- 3.48
- BEAM SPREAD:
- 300
- BULB ANSI BASE:
- EX39
- BULB BASE:
- MOGUL EXTENDED
- BULB FINISH:
- WHITE
- BURNING POSITION:
- BASE UP OR DOWN
- CARTON CUBIC FEET:
- 0.2282
- CARTONS PER UNIT:
- 1
- CRI:
- 80+
- DIMMABLE FUNCTION:
- ONLY DIMMABLE THROUGH WATTAGE SELECTION SWITCH ON LAMP
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- HID EQUIVALENT:
- 600W/400W/320W
- HOUSING COLOR:
- DARK GRAY
- LAMP FILAMENT:
- LED
- LOCATION RATING:
- DAMP
- OPERATING TEMP:
- -40C (-40F) TO +60C (+140F)
- PACK TYPE:
- BOX
- WATTS:
- 120W/100W/80W
- LAMPS:
- YES
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- WIDTH:
- 5.11
- WIDTH RANGE:
- 0-15''
- CEC:
- EXEMPT - BASE NOT REGULATED
- QUANTITY AVAILABLE AT MANUFACTURER:
- 438
- COLOR TEMPRATURE:
- WARM TO COOL WHITE
- IP RATING:
- IP64
- NSF APPROVED:
- NO
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 4KV
- IMAGE INFO:
- ''S23145.JPG:DEFAULT''
- BULB SHAPE:
- CORNCOB
- ADDITIONAL INFO:
- SAFETY CABLE PROVIDED WITH S23143 S23144 S23145 ONLY AND IS REQUIRED UPON INSTALLATION OF THESE HIGH BAY BASE-UP APPLICATIONS. (PLEASE SEE INSTRUCTIONS)
- BALLAST BYPASS DIRECT:
- BALLAST BYPASS
- BALLASTING REQUIREMENTS:
- BALLAST BYPASS
- CCT SELECTABLE:
- YES
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- DLC APPROVED:
- YES
- DLC CLASSIFICATION:
- STANDARD
- DLC ID:
- S-52OTYR
- DLC PRIMARY USE:
- REPLACEMENT LAMPS FOR OUTDOOR POLE/ARM-MOUNTED DECORATIVE LUMINAIRES (TYPE B)
- ENCLOSURE RATING1:
- YES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- CCT SELECTABLE-3000K 4000K 5000K
- FEATURE 2:
- WATTAGE SELECTABLE
- FEATURE 3:
- ENCLOSED FIXTURE RATED
- FEATURE 4:
- ADVANCED THERMAL MANAGEMENT
- FEATURE 5:
- DAMP LOCATION RATED
- FEATURE 6:
- 4KV BUILT IN SURGE PROTECTION
- FEATURE 7:
- RATED FOR 50000 HOURS OF USE
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- IOT ENABLED:
- NO
- LAMP BALLAST TYPE A/B/C:
- TYPE B
- LENS MATERIAL:
- PLASTIC
- LONG DESCRIPTION:
- SATCO NUVO'S S23145 WATTAGE AND CCT SELECTABLE HI-PRO LED LAMP IS AN ENERGY EFFICIENT LIGHTING SOLUTION FOR LARGE SCALE LIGHTING APPLICATIONS. ILLUMINATE GYMNASIUMS FACTORY FLOORS HEALTH CLUBS OR ANY VENUE WHERE HIGH CEILINGS REQUIRE SU...
- MINIMUM COMPARTMENT SIZE:
- LENGTH: 9.85 IN. WIDTH: 9.85 IN. HEIGHT: 12.60 IN.''
- OPERATING FREQUENCY:
- 50/60HZ
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- TECHNOLOGY:
- LED
- WATTAGE SELECTABLE:
- YES
- MATERIAL:
- PLASTIC (PS)
- STANDARD STYLE:
- TRADITIONAL
- More Info {1}:
- POWER SELECTABLE
- More Info {2}:
- ADVANCED THERMAL MANAGEMENT
- More Info {3}:
- CCT SELECTABLE-3000K 4000K 5000K
- More Info {4}:
- DAMP LOCAION RATED
- More Info {5}:
- ENCLOSED FIXTURE RATED
- More Info {6}:
- RATED FOR 50000 HOURS OF USE
- More Info {7}:
- WATTAGE SELECTABLE
- BAA COMPLIANT:
- NO
- INCANDESCENT EQUIVALENT:
- 1000W/600W/500W
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- SDS SHEET LINK:
- #REF!
- B.U. G. RATING:
- B3-U5-G5
- EFFICACY:
- 140.00/140.00/140.00 LPW
- ENCLOSED FIXTURE USE:
- YES
- R9 VALUE:
- 11
- ROMANCE COPY:
- THE NEWEST GENERATION OF SATCO NUVO'S POPULAR HI-PRO COMMERCIAL LED LAMPS PROVIDES UP TO 80 PERCENT IN ENERGY SAVINGS AND BRINGS ADVANCED FEATURES ALLOWING THEM TO ADJUST TO MORE APPLICATIONS. THE CCT WATTAGE SELECTABLE CAPABILITY BUILT IN...
- SHORT DESCRIPTION:
- 120W/LED/CCT/100-277V/EX39
- STYLE:
- CONTEMPORARY
- TITLE 20 COMPLIANT:
- EXEMPT
- TOTAL HARMONIC DISTORTION:
- 13.90%
- CA PROP-65:
- LEAD
- EA LENGTH:
- 12.99
- SHAP CARTON WIDTH:
- 5.51''
- INSTALLATION NOTES:
- NOT FOR USE IN VAPOR TIGHT FIXTURES.
- TITLE 24 COMPLIANT:
- NO
- JA8 COMPLIANT:
- NO
- BULB DIMMABLE:
- YES-DIMMABLE
- START TYPE:
- CONTEMPORARY
- DIMMING TYPE:
- STEP DIMMING
- ORDER IN MULTIPLES OF:
- 1
- FINISH:
- LIGHT BULBS
- CATEGORY:
- LED
- SUB-CATEGORY:
- HID REPLACEMENTS
- COUNTRY OF ORIGIN:
- CHINA
- 5/2/2025 14:
- 20
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
