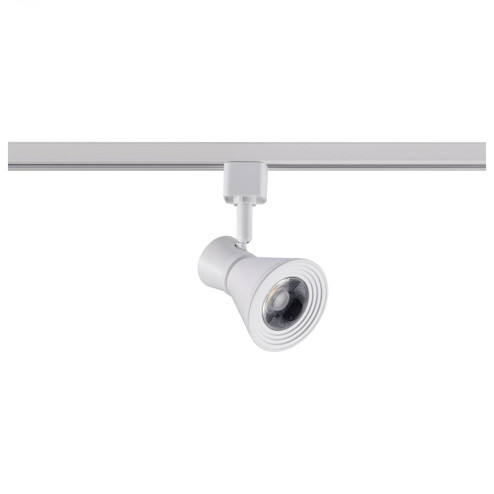

12 Watt LED Cinch Track Head; 3000K; Matte White Finish {ADDITIONAL FINISH INFORMATION: ''Matte White''}
- AVAILABLE FOR PURCHASE:
- YES
- STYLE:
- CONTEMPORARY
- BULB HOURS:
- 30000
- BULB KELVIN:
- WARM WHITE
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.11.6010
- LUMENS:
- 1020L
- SHIP CARTON HEIGHT:
- 6.5''
- SHIP CARTON LENGTH:
- 3.74
- SHIP CARTON WIDTH:
- 3.74''
- WARRANTY:
- 3 YEAR LIMITED - FIXTURES
- AMPS:
- 0.100A
- BEAM SPREAD:
- 36
- CA PROP-65:
- LEAD
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- NO
- CEC:
- CALIFORNIA T24 2016 - 2022 JA8 LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- CRI:
- 90
- DIMMABLE FUNCTION:
- 120V ONLY
- FCC COMPLIANT:
- YES
- FEATURE 1:
- INTEGRATED LED FEATURING 12 WATTS WITH 1020 LUMENS 3000K IN SOFT WHITE AND 90 CRI
- FEATURE 2:
- DIMENSIONS: 3.25 IN H X 3.88 IN W X 5.25 INCH EXT
- FEATURE 3:
- CONTEMPORARY DESIGN WITH MODERN ELEMENTS
- FEATURE 4:
- ALUMINUM AND STEEL CONSTRUCTION
- FEATURE 5:
- MATTE WHITE
- FEATURE 6:
- DRY LOCATION RATED WITH A BEAM SPREAD OF 36 DEGREES
- FEATURE 7:
- 3 YEAR WARRANTY
- FEATURE 8:
- VISIT SATCO.COM FOR ACCESSORIES TO CREATE THE PERFECT TRACK SYSTEM SOLUTION
- FEATURE 9:
- INSTRUCTIONS AND MOUNTING HARDWARE INCLUDED FOR EASY INSTALLATION
- LENS MATERIAL:
- POLY METHYL METHACRYLATE (PMMA)
- MATERIAL:
- ALUMINUM / STEEL
- OPERATING FREQUENCY:
- 60HZ
- OPERATING TEMPRATURE:
- -20C (-4F) TO +40C (+104F)
- PACK TYPE:
- KRAFT BOX
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SAFETY LISTING:
- CETLUS - LISTED
- TEMPERATURE (CCT):
- 3000K
- WEIGHT LB.:
- 0.57
- QUANTITY AVAILABLE AT MANUFACTURER:
- 19
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 3.25
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 3.88
- WIDTH RANGE:
- 0-15''
- INCANDESCENT EQUIVALENT:
- 75W
- REPLACEABLE LIGHT SOURCE:
- NO
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- REPLACES:
- #REF!
- SDS SHEET LINK:
- #REF!
- AVG RATED HOURS:
- 30000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM WHITE
- EACH HEIGHT:
- 6.5''
- EACH LENGTH:
- 3.74
- EACH WIDTH:
- 3.74''
- TARIFF CODE:
- 9405.11.6010
- BEAM ANGLE:
- 36
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EACH QUANTITY:
- 1
- EFFICACY:
- 85.00 LPW
- JA8 COMPLIANT:
- YES
- POWER FACTOR:
- 0.94
- R9 VALUE:
- 60
- SHORT DESCRIPTION:
- 12W LED CINCH TRACK HEAD 36
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- YES
- WATTAGE SELECTABLE:
- NO
- IMAGE INFO:
- ''''
- ANSI BASE:
- INTEGRATED
- EACH CUBE:
- 0.0526
- TRACK HEAD STYLE:
- H-STYLE
- INDOOR OUTDOOR:
- INDOOR
- MOUNTING PROCEDURE:
- TRACK
