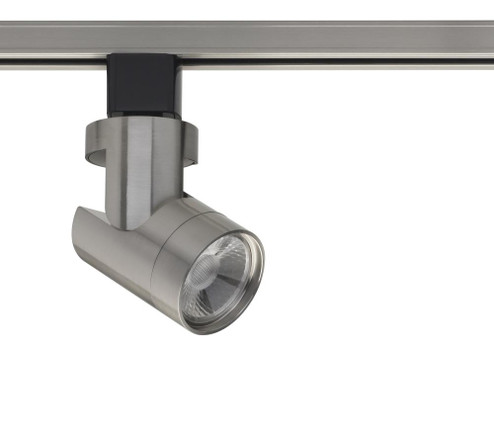

1 Light - LED - 12W Track Head - Barrel - Brushed Nickel - 24 Deg. Beam {ADDITIONAL FINISH INFORMATION: ''Brushed Nickel''}
- STYLE:
- Contemporary
- BULB DIMMABLE:
- Yes - Dimmable
- BULB HOURS:
- 30000
- BULB SHAPE:
- Integrated LED
- BULB TYPE:
- LED
- DIAMETER:
- 2.19
- EXTENDS:
- 5.75
- HARMONIZED CODES:
- 9405.11.6020
- LENGTH:
- 3.75
- LUMENS:
- 1020L
- SHIP CARTON HEIGHT:
- 6.5''
- SHIP CARTON LENGTH:
- 3.46
- SHIP CARTON WIDTH:
- 3.46''
- SHIP WEIGHT:
- 0.84
- VOLTAGE:
- 120V
- WARRANTY:
- 3 Year Limited - Fixtures
- BEAM ANGLE:
- 24
- CARTON CUBIC FEET:
- 0.045
- CARTONS PER UNIT:
- 1
- CEC:
- CALIFORNIA T24 2016 - 2022 JA8 LISTED
- COLOR TEMPRATURE:
- Warm White
- CRI:
- 90
- LOCATION RATING:
- Dry
- PACK TYPE:
- Box
- HEIGHT:
- 2.25
- WIDTH:
- 2.25
- FINISH:
- NICKEL
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- BULBS:
- 12W WATT:12W WATT:1
- STANDARD STYLE:
- CONTEMPORARY
- DIMMABLE:
- Yes-Dimmable
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- YES
- DIMMABLE FUNCTION:
- 120V ONLY
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- ANSI BASE:
- INTEGRATED
- DIMMING TYPE:
- REVERSE PHASE OR PHASE SELECTABLE
- FCC COMPLIANT:
- YES
- FEATURE 1:
- NEW MONO POINTS
- FEATURE 2:
- NEW LINEAR TRACK BARS
- FEATURE 3:
- EXPANDED TRACK HEAD OFFERING
- FEATURE 4:
- CUSTOMIZABLE ACCENT LIGHTING FOR LOW TO MID CEILING
- FEATURE 5:
- RESIDENTIAL AND COMMERCIAL
- FINISH FAMILY:
- NICKEL
- INDOOR OUTDOOR:
- INDOOR
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- TEMPERATURE (CCT):
- 3000K
- TRACK HEAD STYLE:
- BARREL
- WEIGHT LB.:
- 0.8
- LAMPS:
- YES
- AMPS:
- 0.100A
- SDS SHEET LINK:
- #REF!
- LONG DESCRIPTION:
- SATCO'S TH435 12-WATT BARREL TRACK HEAD IS A SLEEK LIGHTING SOLUTION FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS. THIS BRUSHED NICKEL FIXTURE IS DIMMABLE DURABLE AND HAS A 24 DEGREE BEAM SPREAD. VERSATILE AND CONTEMPORARY THIS TRACK HEA...
- SDS CLASS:
- LED_FIXTURE
- BULB KELVIN:
- WARM WHITE
- BEAM SPREAD:
- 24
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CETLUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CCT SELECTABLE:
- NO
- WATTAGE SELECTABLE:
- NO
- INCANDESCENT EQUIVALENT:
- 75W
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 30000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM WHITE
- EACH HEIGHT:
- 6.5''
- EACH LENGTH:
- 3.46
- EACH WIDTH:
- 3.46''
- TARIFF CODE:
- 9405.11.6020
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.045
- EACH QUANTITY:
- 1
- EFFICACY:
- 85.00 LPW
- JA8 COMPLIANT:
- YES
- MATERIAL:
- ALUMINUM / STEEL
- OPERATING FREQUENCY:
- 60HZ
- R9 VALUE:
- 60
- ROMANCE COPY:
- SATCO'S 12-WATT BARREL TRACK HEAD IS A SLEEK LIGHTING SOLUTION FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS. THIS BRUSHED NICKEL FIXTURE IS DIMMABLE DURABLE AND HAS A 24 DEGREE BEAM SPREAD. VERSATILE AND CONTEMPORARY THIS TRACK HEAD DELI...
- SHORT DESCRIPTION:
- 12W LED TRACK HEAD BARREL
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- YES
- POWER FACTOR:
- 0.94
