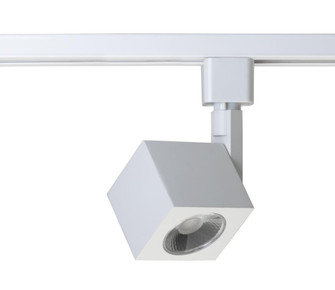

1 Light - LED - 12W Track Head - Square - White - 36 Deg. Beam {ADDITIONAL FINISH INFORMATION: ''White''}
- STYLE:
- Contemporary
- BULB DIMMABLE:
- Yes - Dimmable
- BULB HOURS:
- 30000
- BULB SHAPE:
- Integrated LED
- BULB TYPE:
- LED
- EXTENDS:
- 5.5
- HARMONIZED CODES:
- 9405.11.6020
- LENGTH:
- 2.38
- LUMENS:
- 1020L
- SHIP CARTON HEIGHT:
- 6.5''
- SHIP CARTON LENGTH:
- 4.06
- SHIP CARTON WIDTH:
- 2.52''
- SHIP WEIGHT:
- 0.92
- VOLTAGE:
- 120V
- WARRANTY:
- 3 Year Limited - Fixtures
- BEAM ANGLE:
- 36
- CARTON CUBIC FEET:
- 0.0385
- CARTONS PER UNIT:
- 1
- CEC:
- CALIFORNIA T24 2016 - 2022 JA8 LISTED
- COLOR TEMPRATURE:
- Warm White
- CRI:
- 90
- LOCATION RATING:
- Dry
- PACK TYPE:
- Box
- HEIGHT:
- 2.25
- WIDTH:
- 2.75
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- BULBS:
- 12W WATT:12W WATT:1
- STANDARD STYLE:
- TRADITIONAL
- DIMMABLE:
- Yes-Dimmable
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- YES
- DIMMABLE FUNCTION:
- 120V ONLY
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- ANSI BASE:
- INTEGRATED
- DIMMING TYPE:
- REVERSE PHASE OR PHASE SELECTABLE
- FCC COMPLIANT:
- YES
- FEATURE 1:
- NEW MONO POINTS
- FEATURE 2:
- NEW LINEAR TRACK BARS
- FEATURE 3:
- EXPANDED TRACK HEAD OFFERING
- FEATURE 4:
- CUSTOMIZABLE ACCENT LIGHTING FOR LOW TO MID CEILING
- FEATURE 5:
- RESIDENTIAL AND COMMERCIAL
- FINISH FAMILY:
- WHITE
- FIXTURE SHAPE:
- SQUARE
- INDOOR OUTDOOR:
- INDOOR
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- TEMPERATURE (CCT):
- 3000K
- TRACK HEAD STYLE:
- SQUARE
- WEIGHT LB.:
- 0.87
- LAMPS:
- YES
- AMPS:
- 0.100A
- SDS SHEET LINK:
- #REF!
- LONG DESCRIPTION:
- SATCO'S TH463 12-WATT SQUARE TRACK HEAD IS A SLEEK LIGHTING SOLUTION FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS. THIS WHITE FIXTURE IS DIMMABLE DURABLE AND HAS A 36 DEGREE BEAM SPREAD. VERSATILE AND CONTEMPORARY THIS TRACK HEAD DELIVER...
- SDS CLASS:
- LED_FIXTURE
- BULB KELVIN:
- WARM WHITE
- BEAM SPREAD:
- 36
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CETLUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CCT SELECTABLE:
- NO
- WATTAGE SELECTABLE:
- NO
- INCANDESCENT EQUIVALENT:
- 75W
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 30000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM WHITE
- EACH HEIGHT:
- 6.5''
- EACH LENGTH:
- 4.06
- EACH WIDTH:
- 2.52''
- TARIFF CODE:
- 9405.11.6020
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.0385
- EACH QUANTITY:
- 1
- EFFICACY:
- 85.00 LPW
- JA8 COMPLIANT:
- YES
- MATERIAL:
- ALUMINUM / STEEL
- OPERATING FREQUENCY:
- 60HZ
- POWER FACTOR:
- 0.94
- R9 VALUE:
- 60
- ROMANCE COPY:
- SATCO'S 12-WATT SQUARE TRACK HEAD IS A SLEEK LIGHTING SOLUTION FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS. THIS WHITE FIXTURE IS DIMMABLE DURABLE AND HAS A 36 DEGREE BEAM SPREAD. VERSATILE AND CONTEMPORARY THIS TRACK HEAD DELIVERS 300...
- SHORT DESCRIPTION:
- 12W LED TRACK HEAD SQUARE
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- YES
