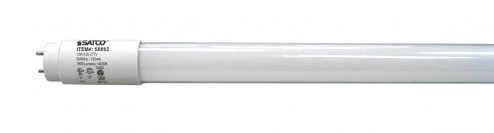

13 Watt T8 LED; Medium bi-pin base; 4000K; 50000 Hours; 1900 Lumens; Type A/B; Ballast Dependant or Ballast Bypass; Single or Double Ended Wiring {ADDITIONAL FINISH INFORMATION: ''White''}
- BULB DIMMABLE:
- YES-DIMMABLE
- BULB HOURS:
- 50000
- BULB KELVIN:
- 4000K
- BULB SHAPE:
- T8
- DIAMETER:
- 1
- HARMONIZED CODES:
- 8539.52.0051
- LENGTH:
- 47.78
- LUMENS:
- 1950L
- SHIP CARTON HEIGHT:
- 1.1''
- SHIP CARTON LENGTH:
- 48
- SHIP CARTON WIDTH:
- 1.1''
- SHIP WEIGHT:
- 0.5
- VOLTS:
- 120V-277V
- WARRANTY:
- 5 Year Limited - T8 LED Bulbs
- BEAM SPREAD:
- 180
- BULB ANSI BASE:
- G13
- BULB BASE:
- Medium Bi Pin
- BULB FINISH:
- Frost
- CARTON CUBIC FEET:
- 0.0336
- CARTONS PER UNIT:
- 1
- CEC:
- Exempt - Base Not Regulated
- COLOR TEMPRATURE:
- Cool White
- CRI:
- 83
- DLC APPROVED:
- YES
- DLC ID:
- PLIR7BJW4P8T
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- HOUSING COLOR:
- White
- LAMP FILAMENT:
- LED
- LENS:
- YES
- LOCATION RATING:
- Damp
- NOMINAL LENGTH:
- 48
- NSF APPROVED:
- YES
- OPERATING TEMP:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- Sleeve
- SHATTER PROOF TEXT:
- PET Coated
- WATTS:
- 13W
- WIDTH:
- 1.00
- LAMPS:
- YES
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- STANDARD STYLE:
- TRADITIONAL
- DIMMABLE:
- Yes-Dimmable
- More Info {1}:
- Check Ballast MFG for Dimmer Compatibility Only in Type A mode
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- DIMMABLE FUNCTION:
- ONLY IN TYPE A MODE CHECK BALLAST MFG FOR DIMMER COMPATIBILITY
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- NO
- QUANTITY AVAILABLE AT MANUFACTURER:
- 9251
- BALLASTING REQUIREMENTS:
- BALLAST REQUIRED (TYPE A) OR BALLAST BYPASS (TYPE B)
- DLC CLASSIFICATION:
- STANDARD
- DLC PRIMARY USE:
- DUAL MODE INTERNAL DRIVER (UL TYPE A AND TYPE B)
- ENCLOSURE RATING1:
- YES
- FCC COMPLIANT:
- YES
- LAMP BALLAST TYPE A/B/C:
- TYPE A/B
- LENS FINISH:
- FROST
- MATERIAL:
- GLASS
- OPERATING FREQUENCY:
- 50/60HZ
- ORDER IN MULTIPLES OF:
- 25
- POWER FACTOR:
- 0.96
- QUANTITY IN PACK:
- 1
- RATED FOR VAPOR TIGHT FIXTURE:
- NO
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SDS SHEET LINK:
- #REF!
- SPECIFICATION NOTES:
- BALLAST COMPATIBLE - BARE LAMP IS 12W BALLAST BYPASS - 13W. PROTECTION FROM ARCING- POWER MUST BE TURNED OFF PRIOR TO INSTALLING LAMPS. SOCKETS MUST BE IN GOOD WORKING ORDER NOT BROKEN CRACKED OR ELECTRICALLY COMPROMISED. IF ARCING OCC...
- TECHNOLOGY:
- LED
- CCT SELECTABLE:
- NO
- FLUORESCENT EQUIVALENT:
- 28W/32W
- BURNING POSITION:
- UNIVERSAL
- BALLAST BYPASS DIRECT:
- DUAL
- WATTAGE SELECTABLE:
- NO
- BAA COMPLIANT:
- NO
- INCANDESCENT EQUIVALENT:
- 50W
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EFFICACY:
- 146.15 LPW
- ENCLOSED FIXTURE USE:
- YES
- LAMP END TYPE:
- SINGLE ENDED DOUBLE ENDED
- R9 VALUE:
- 1
- SHORT DESCRIPTION:
- 13T8/LED/48-840/DUAL/BP-DR
- TITLE 20 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 20%
- EA LENGTH:
- 48
- SHAP CARTON WIDTH:
- 1.1''
- FLOURESCENT EQUIVALENT:
- 28W/32W
- INSTALLATION NOTES:
- NOT FOR USE IN VAPOR TIGHT FIXTURES.
- SURGE PROTECTION:
- BUILT-IN-SURGE PROTECTION - 0.7KV
- WEIGHT:
- 0.45
