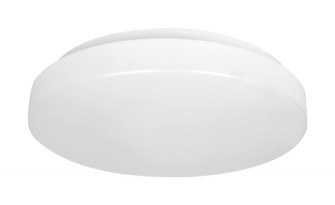

14 inch; Acrylic Round; Flush Mounted; LED Light Fixture; CCT Selectable with Microwave Sensor ; White Finish; 120V {ADDITIONAL FINISH INFORMATION: ''White''}
- BULB DIMMABLE:
- Non-Dimmable
- BULB HOURS:
- 50000
- BULB TYPE:
- LED
- DIAMETER:
- 14
- HARMONIZED CODES:
- 9405.11.8010
- LUMENS:
- 1230L-1330L
- SHIP CARTON HEIGHT:
- 15.75''
- SHIP CARTON LENGTH:
- 3.75
- SHIP CARTON WIDTH:
- 15.75''
- SHIP WEIGHT:
- 2.5
- WARRANTY:
- 5 Year Limited - Fixtures
- CARTON CUBIC FEET:
- 0.5383
- CARTONS PER UNIT:
- 1
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- COLOR TEMPRATURE:
- Warm to Cool White
- CRI:
- 90
- LOCATION RATING:
- Damp
- OPERATING TEMP:
- -20C (-4F) TO +40C (+104F)
- PACK TYPE:
- COLOR BOX
- PHOTOCELL:
- Integrated on/off Microwave Sensor
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- STANDARD STYLE:
- TRADITIONAL
- HEIGHT:
- 3.55
- WIDTH:
- 14.00
- DIMMABLE:
- Non-Dimmable
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- BULB SHAPE:
- Integrated LED
- HEIGHT RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- NO
- FINISH:
- WHITE
- QUANTITY AVAILABLE AT MANUFACTURER:
- 0
- ANSI BASE:
- INTEGRATED
- CCT SELECTABLE:
- YES
- CLOSET RATED:
- YES
- CONNECTION:
- HARDWIRE
- ES UNIQUE ID:
- ESID-2370415
- FCC COMPLIANT:
- YES
- FEATURE 1:
- SELECT FROM 3 COLOR TEMPERATURES 3000K 4000K 5000K TO SET THE PERFECT ROOM TONE
- FEATURE 2:
- MICROWAVE SENSOR MOTION DETECTION
- FEATURE 3:
- DAMP RATED FOR INDOOR USE
- FEATURE 4:
- DURABLE PMMA COVER
- FEATURE 5:
- 90 CRI HIGH COLOR RENDITION
- FEATURE 6:
- D:14.00 INCHES H:3.55 INCHES
- FINISH FAMILY:
- WHITE
- INDOOR OUTDOOR:
- INDOOR
- LONG DESCRIPTION:
- THE 62-1213 14 INCH ROUND FLUSH MOUNTED LED LIGHT FIXTURE OFFERS A FROSTED WHITE ACRYLIC LENS SATCO'S COLORQUICK CCT SELECTABILITY AND MICROWAVE MOTION DETECTION SENSORS ENABLING THE LIGHTS TO GO ON AND OFF AS THE ROOM IS ENTERED AND EXI...
- MATERIAL:
- STEEL
- MOUNTING PROCEDURE:
- CEILING/WALL
- NUMBER OF LAMPS:
- 1
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 3000K/4000K/5000K
- WEIGHT LB.:
- 1.82
- LAMPS:
- YES
- STYLE:
- CONTEMPORARY
- AMPS:
- 0.171A
- SDS SHEET LINK:
- #REF!
- BULB KELVIN:
- WARM TO COOL WHITE
- CA PROP-65:
- LEAD
- INCANDESCENT EQUIVALENT:
- 100W
- NEC COMPLIANCE:
- CLOTHES CLOSET CERTIFIED - REG: 410.16 (A)(3) AND 410.16 (C)(5)
- OPERATING TEMPRATURE:
- -20C (-4F) TO +40C (+104F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CETLUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- INSTALLATION NOTES:
- CEILING/WALL MOUNTING
- LENS MATERIAL:
- ACRYLIC
- CEC WEB TEXT:
- LAWFUL FOR SALE
- REPLACES:
- #REF!
- SLOPED CEILING COMPATIBLE:
- YES
- WATTAGE SELECTABLE:
- NO
- CEILING:
- YES
- OPERATING FREQUENCY:
- 60HZ
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM TO COOL WHITE
- EACH HEIGHT:
- 15.75''
- EACH LENGTH:
- 3.75
- EACH WIDTH:
- 15.75''
- TARIFF CODE:
- 9405.11.8010
- BAA COMPLIANT:
- NO
- EACH CUBE:
- 0.5383
- EACH QUANTITY:
- 1
- EFFICACY:
- 60.00/62.44/64.88 LPW
- JA8 COMPLIANT:
- NO
- R9 VALUE:
- 77
- ROMANCE COPY:
- LED CLOUD FIXTURES NOW FEATURE SATCO'S COLORQUICK SELECTABLE CCT TECHNOLOGY FOR EVEN MORE VERSATILITY. SIMPLE CCT SELECTION AND VERSATILE DESIGN. THE SATCO CLOUD FIXTURE IS TRULY AN ALL PURPOSE LIGHTING SOLUTION.
- SENSOR DETECTION RANGE:
- 10%/30%/50%/75%/100%
- SENSOR MOUNTING HEIGHT:
- 2.5M - 6M''
- SENSOR MOUNTING TYPE:
- CEILING
- SENSOR OPERATING TEMPERATURE:
- -20C (-4F) TO +55C (+131F)
- SENSOR OPERATION:
- 2.5M - 6M
- SENSOR TIME DELAY:
- 5S 30S 1MIN 5MIN 10MIN 20MIN 30MIN
- SHORT DESCRIPTION:
- 14'' ACRYLIC LED FLUSH FIXTURE
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- POWER FACTOR:
- 0.92
