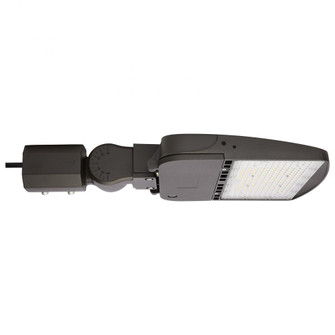

LED Area Light Type V; 150W; Bronze Finish; 4000K; 277-480V {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- STYLE:
- UTILITY
- ADDITIONAL INFO:
- POWDER COATED
- BULB HOURS:
- 50000
- BULB KELVIN:
- COOL WHITE
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.42.6000
- LENGTH:
- 20.71
- LUMENS:
- 19507L
- SHIP CARTON HEIGHT:
- 5.71''
- SHIP CARTON LENGTH:
- 23.23
- SHIP CARTON WIDTH:
- 14.37''
- WARRANTY:
- 5 YEAR LIMITED - FIXTURES
- AMPS:
- 0.542-0.313A
- B_U_G_RATING:
- B5-U3-G2
- CA PROP-65:
- LEAD
- CARTON CUBIC FEET:
- 1.1031
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- NO
- CRI:
- 80
- DARK SKY RATED:
- NO
- DIMMABLE FUNCTION:
- 0-10V DIMMING
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- OUTDOOR POLE/ARM-MOUNTED AREA AND ROADWAY LUMINAIRES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- MAINTENANCE FREE - NO BULB TO CHANGE
- FEATURE 10:
- 5-YEAR WARRANTY
- FEATURE 2:
- DIE-CAST ALUMINUM BODY
- FEATURE 4:
- SLIP-FITTER MOUNT INCLUDED
- FEATURE 5:
- IP65 RATED
- FEATURE 6:
- MULTIPLE MOUNTING OPTIONS AVAILABLE
- FEATURE 7:
- ADD-ON SENSORS AVAILABLE
- FEATURE 8:
- TYPE V LIGHTING DISTRIBUTION
- FEATURE 9:
- 4KV BUILT-IN SURGE PROTECTION
- HID EQUIV:
- 320W
- IMPACT RATING (IK):
- IK10
- INCLUDES:
- SLIP-FITTER MOUNT
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- IOT ENABLED:
- NO
- IP RATING:
- IP65
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- SATCO
- MATERIAL:
- DIE-CAST ALUMINUM
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMPRATURE:
- -40C (-40F) TO +45C (+113F)
- PACK TYPE:
- BOX
- PHOTOCELL:
- OPTIONAL
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SAFETY LISTING:
- CULUS - CERTIFIED
- SDS CLASS:
- LED_FIXTURE
- SPECIFICATION NOTES:
- TYPE V LIGHT DISTRIBUTION
- TEMPERATURE (CCT):
- 4000K
- WEIGHT LB.:
- 8.08
- QUANTITY AVAILABLE AT MANUFACTURER:
- 47
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 3.11
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 12.40
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- ANSI BASE:
- INTEGRATED
- WATTAGE SELECTABLE:
- NO
- IMAGE INFO:
- ''''
- INCANDESCENT EQUIVALENT:
- 450W
- REPLACEABLE LIGHT SOURCE:
- NO
- REPLACES:
- #REF!
- SDS SHEET LINK:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- COOL WHITE
- EACH HEIGHT:
- 5.71''
- EACH LENGTH:
- 23.23
- EACH WIDTH:
- 14.37''
- TARIFF CODE:
- 9405.42.6000
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 1.1031
- EACH QUANTITY:
- 1
- EFFICACY:
- 130.05 LPW
- JA8 COMPLIANT:
- NO
- R9 VALUE:
- 15
- ROMANCE COPY:
- SATCO
- SHORT DESCRIPTION:
- 150W LED AREA LIGHT TYPE V
- TITLE 20 COMPLIANT:
- NO
- BULB SHAPE1:
- INTEGRATED LED
- MOUNTING PROCEDURE:
- WALL/PIPE ARM
