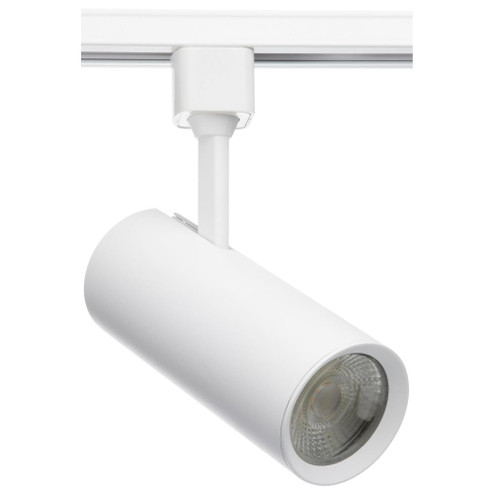

20 Watt; LED Commercial Track Head; White; Cylinder; 36 Degree Beam Angle {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- BULB HOURS:
- 50000
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- EXTENDS:
- 8.25
- HARMONIZED CODES:
- 9405.11.6020
- LENGTH:
- 6.13
- LUMENS:
- 1200L
- SHIP CARTON HEIGHT:
- 9.06''
- SHIP CARTON LENGTH:
- 3.74
- SHIP CARTON WIDTH:
- 3.15''
- SHIP WEIGHT:
- 0.88
- WARRANTY:
- 5 YEAR LIMITED - FIXTURES
- BEAM ANGLE:
- 36
- CARTON CUBIC FEET:
- 0.0618
- CARTONS PER UNIT:
- 1
- CEC:
- CALIFORNIA T24 2016 - 2022 JA8 LISTED
- COLOR TEMPRATURE:
- WARM WHITE
- CRI:
- 93
- DIMMABLE FUNCTION:
- 120V ONLY
- LOCATION RATING:
- DRY
- PACK TYPE:
- BOX
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 2.50
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 2.50
- WIDTH RANGE:
- 0-15''
- QUANTITY AVAILABLE AT MANUFACTURER:
- 149
- FINISH:
- WHITE
- STANDARD STYLE:
- CONTEMPORARY
- IMAGE INFO:
- ''''
- ANSI BASE:
- INTEGRATED
- CCT SELECTABLE:
- NO
- FCC COMPLIANT:
- YES
- FEATURE 1:
- SLEEK DESIGN RUGGED CONSTRUCTION
- FEATURE 2:
- WHITE TEXTURED ALUMINUM FINISH
- FEATURE 3:
- 20W 36 DEG. BEAM ANGLE
- FEATURE 4:
- HIGH CRI AND R9 VALUES
- FEATURE 5:
- SUPERIOR LED PERFORMANCE
- FEATURE 6:
- PRECISE BEAM CONTROL
- FEATURE 7:
- SMOOTH DIMMING CONTROL
- FINISH FAMILY:
- WHITE
- INDOOR OUTDOOR:
- INDOOR
- IOT ENABLED:
- NO
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- THE NEW SATCO NUVO SHOTGUN-STYLE PRO SERIES LED TRACK HEAD OFFERS A DISTINCT LOOK WHILE PROVIDING SUPERIOR ILLUMINATION FOR HIGH-DEMAND APPLICATIONS. BUILT TO WITHSTAND THE DEMANDING EVERYDAY OPERATION THAT COMES WITH USE IN COMMERCIAL SE...
- MATERIAL:
- DIE-CAST ALUMINUM
- QUANTITY IN PACK:
- 1
- SLOPED CEILING COMPATIBLE:
- YES
- TEMPERATURE (CCT):
- 3000K
- TRACK HEAD STYLE:
- CYLINDER
- WEIGHT LB.:
- 0.87
- CEILING:
- YES
- AMPS:
- 0.167A
- SDS SHEET LINK:
- #REF!
- OPERATING FREQUENCY:
- 60HZ
- OPERATING TEMP:
- -20C (-4F) TO +40C (+104F)
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 1KV
- BULB KELVIN:
- WARM WHITE
- BEAM SPREAD:
- 36
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- INCANDESCENT EQUIVALENT:
- 75W
- OPERATING TEMPRATURE:
- -20C (-4F) TO +40C (+104F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CETLUS
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- STYLE:
- CONTEMPORARY
- MOUNTING PROCEDURE:
- TRACK
- ORDER IN MULTIPLES OF:
- 1
- WATTAGE SELECTABLE:
- NO
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM WHITE
- EACH HEIGHT:
- 9.06''
- EACH LENGTH:
- 3.74
- EACH WIDTH:
- 3.15''
- TARIFF CODE:
- 9405.11.6020
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.0618
- EACH QUANTITY:
- 1
- EFFICACY:
- 60.00 LPW
- JA8 COMPLIANT:
- YES
- R9 VALUE:
- 67
- ROMANCE COPY:
- THE NEW SATCO NUVO SHOTGUN-STYLE PRO SERIES LED TRACK HEADS OFFER A DISTINCT LOOK WHILE PROVIDING SUPERIOR ILLUMINATION FOR HIGH-DEMAND APPLICATIONS. BUILT TO WITHSTAND THE DEMANDING EVERYDAY OPERATION THAT COMES WITH USE IN COMMERCIAL SET...
- SHORT DESCRIPTION:
- TRACK PRO SERIES- 20W- WH- 36
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- YES
- POWER FACTOR:
- 0.92
