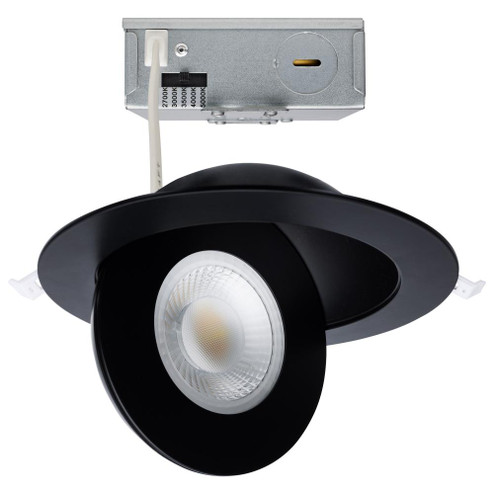

15 Watt; CCT Selectable; LED Direct Wire Downlight; Gimbaled; 6 Inch Round; Remote Driver; Black {ADDITIONAL FINISH INFORMATION: ''Black''}
- AVAILABLE FOR PURCHASE:
- NO
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- BULB HOURS:
- 50000
- BULB KELVIN:
- WARM TO COOL WHITE
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIAMETER:
- 7.48
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.11.8010
- LUMENS:
- 1280L-1400L
- SHIP CARTON HEIGHT:
- 8.19''
- SHIP CARTON LENGTH:
- 8.109999999999999
- SHIP CARTON WIDTH:
- 3.94''
- WARRANTY:
- 5 YEAR LIMITED - LED COMMERCIAL DOWNLIGHTS
- AMPS:
- 0.125A
- ANSI BASE:
- INTEGRATED
- BEAM SPREAD:
- 40
- CA PROP-65:
- LEAD
- CAN SIZE:
- 6 IN.
- CARTON CUBIC FEET:
- 0.1514
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- CALIFORNIA T24 2016 - 2022 JA8 LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- CLEARANCE HEIGHT:
- 3''
- CONNECTION:
- DIRECT WIRED
- CRI:
- 90
- FCC COMPLIANT:
- YES
- FEATURE 1:
- CCT SELECTABLE
- FEATURE 2:
- 360 DEGREE ROTATION
- FEATURE 3:
- 0 TO 80 DEGREE AIMING ANGLE
- FEATURE 4:
- DAMP LOCATION RATED
- FEATURE 5:
- LONG LIFE 50000 HOURS
- FEATURE 6:
- ENERGY STAR CERTIFIED
- FIXTURE SHAPE:
- ROUND
- HAS DRIVER:
- YES
- HAS EMERGENCY BATTERY:
- NO
- IC RATED:
- YES
- INCANDESCENT EQUIVALENT:
- 75W
- INDOOR OUTDOOR:
- INDOOR
- IOT ENABLED:
- NO
- IP RATING:
- IP42
- LENS MATERIAL:
- PLASTIC
- LONG DESCRIPTION:
- THE BLACK SIX INCH ROUND SATCO S11862 GIMBALED DOWNLIGHT DELIVERS MULTIPLE ADVANTAGES TO ANY GENERAL RECESSED LIGHTING PROJECT. OUR COLORQUICK TECHNOLOGY ALLOWS THE USER TO CHOOSE THE COLOR TEMPERATURE FROM FIVE DIFFERENT SETTINGS AND BR...
- MATERIAL:
- ALUMINUM
- MAX DRYWALL THICKNESS:
- 1 IN.
- MOUNTING PROCEDURE:
- RECESSED CEILING
- OPERATING FREQUENCY:
- 60HZ
- OPERATING TEMPRATURE:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- BOX
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- REC SPACING BETWEEN FIXTURES:
- 3 FT. TO 4 FT.
- REPLACEABLE LIGHT SOURCE:
- NO
- ROHS COMPLIANT:
- YES
- SAFETY LISTING:
- CETLUS - LISTED
- SLOPED CEILING COMPATIBLE:
- YES
- TEMPERATURE (CCT):
- 2700K/3000K/3500K/4000K/5000K
- CEILING:
- YES
- WALL:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 1364
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 2.17
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 7.48
- WIDTH RANGE:
- 0-15''
- STYLE:
- UTILITY
- WEIGHT LB.:
- 1.06
- ES UNIQUE ID:
- ESID-2470768
- More Info {1}:
- 0 TO 80 DEGREE AIMING ANGLE
- More Info {2}:
- 360 DEGREE ROTATION
- More Info {3}:
- CCT SELECTABLE
- More Info {4}:
- DAMP LOCATION RATED
- More Info {5}:
- ENERGY STAR CERTIFIED
- More Info {6}:
- LONG LIFE 50000 HOURS
- INSTALLATION NOTES:
- **IF YOU PURCHASE THE 5W EMERGENCY DRIVER (S8000) OR THE 10W EMERGENCY DRIVER (S8002) YOU MUST ALSO PURCHASE THE EMERGENCY DRIVER ENCLOSURE (80-973)
- SDS CLASS:
- LED_LAMP
- DIMMING TYPE:
- FORWARD PHASE
- WATTAGE SELECTABLE:
- NO
- IMAGE INFO:
- ''''
- AIR TIGHT:
- YES
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EFFICACY:
- 85.33/89.33/93.33 LPW
- JA8 COMPLIANT:
- YES
- R9 VALUE:
- 59
- ROMANCE COPY:
- THESE LOW PROFILE CCT SELECTABLE REMOTE DRIVER DOWNLIGHTS DELIVER MULTIPLE ADVANTAGES TO ANY GENERAL RECESSED LIGHTING PROJECT. OUR COLORQUICK TECHNOLOGY ALLOWS THE USER TO CHOOSE THE COLOR TEMPERATURE FROM FIVE DIFFERENT SETTINGS AND BRI...
- SHORT DESCRIPTION:
- 15WLED/GBL/6/CCT/RND/BLK
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- YES
- CEILING APERTURE:
- 6.313 IN. CUTOUT
