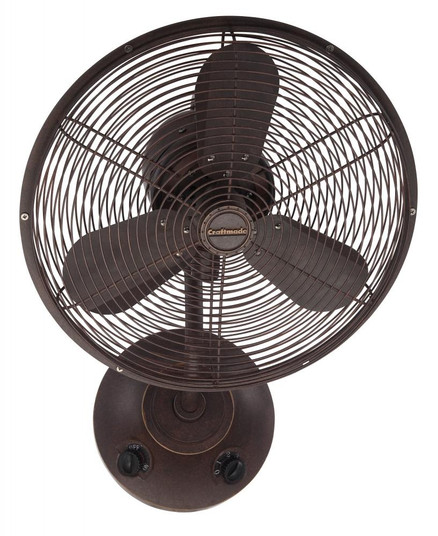

16'' Wall Mount Fan Increase your cool, indoors or out, with the Retro-inspired damp-rated Bellows I 16'' wall mount fan. with a heavy-duty, 3-speed oscillating motor and 14'' blades, this wall-mounted fan combines the retro style of a table fan with the power and efficiency of a ceiling fan. Finished in your choice of Aged Bronze Textured or Stainless Steel, it features separate knobs for oscillating and speed control. The fan can be hung and plugged in, with 40'' corded plug or hard-wired if necessary. {ADDITIONAL FINISH INFORMATION: ''Aged Bronze Textured''}
- OPTION:
- DAMP RATED
- STYLE:
- TRANSITIONAL
- FAMILY:
- BELLOWS I
- AIR FLOW CFM:
- 1382.74
- AIR FLOW EFFICIENCY:
- 31.71
- AMPERAGE:
- 0.38
- BACKPLATE HEIGHT:
- 8.47''
- BACKPLATE WIDTH:
- 8.47''
- BLADE FINISH:
- Aged Bronze
- BLADE PITCH:
- 7
- BLADE SPAN:
- 14
- BLADE TYPE:
- Fits Only
- BLADES INCLUDED:
- 3
- CANOPY:
- 3.52 H X 8.46 W
- EXTENSION:
- 21
- INTRODUCTION DATE:
- 01/18/2013
- LIGHT KIT INCLUDED:
- NOT ADAPTABLE
- MATERIAL:
- SILICON STEEL COPPER
- MOTOR FAN SPEED:
- 3
- MOTOR SIZE:
- 82 X 25
- MOTOR TYPE:
- AC
- SOLD IN PACK OF:
- 1
- SPECIAL FEATURES:
- 14'' Steel Blades (Included)
- SPECIAL FEATURES1:
- Heavy Duty 3Speed Oscillating Motor
- SPECIAL FEATURES2:
- Limited Lifetime Warranty
- SPECIAL FEATURES3:
- Not Light Kit Adaptable
- SPECIAL FEATURES4:
- Suitable for Damp Locations
- SPECIAL FEATURES5:
- Wall Mount Installation Comes PreWired with 40'' Corded 3Prong Plug End with Replaceable Fuse
- VOLTAGE:
- 120 V/60 HZ
- WARRANTY:
- LIMITED LIFETIME WARRANTY
- WIRE INCLUDED:
- 80
- ADA COMPLIANT:
- No
- BACKPLATE DEPTH:
- 3.52
- BLADE COUNT:
- 3
- BLADE FEATURES:
- Blades Included
- BLADE MATERIAL:
- Steel
- BLADE SWEEP OPTIONS:
- 14
- CONTROL METHOD:
- Rotary Switch
- CONTROL STATUS:
- Not Compatible
- CONTROL TYPES INCLUDED:
- Rotary Switch
- ENERGY STAR:
- No
- FINISH GROUP:
- Bronze
- FLUSH MOUNT HEIGHT:
- 21.004''
- GLASS/SHADE INCLUDED:
- No
- HOUSING SIZE:
- 16
- LEADWIRE LENGTH:
- 18
- LIGHT KIT ADAPTABLE:
- No
- LIGHT KIT OPTIONS:
- Not Light Kit Adaptable
- MOTOR DIAMETER:
- 82
- MOTOR HEIGHT:
- 25''
- MOTOR MATERIAL:
- Silicon Steel
- MOTORRPM 1:
- 1604
- MOTORRPM 2:
- 1261
- MOTORRPM 3:
- 835
- MOUNTING METHOD:
- Wall Mount
- PROP 65:
- Yes
- REVERSIBLE BLADES:
- No
- ROOM SIZE:
- Small rooms (up to 8 X 10)
- SAFETY RATING:
- CETLUS APPROVED
- SLOPE MOUNT:
- No
- UP DOWN CAPABILITY:
- No
- WATTS:
- 43.6
- HEIGHT:
- 19.18
- HEIGHT RANGE:
- 15-20''
- WIDTH:
- 14.00
- WIDTH RANGE:
- 15-20''
- FINISH:
- BRONZE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Transitional
- AVAILABLE FOR PURCHASE:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 116
- IMAGE INFO:
- ''''
- SHIP CARTON HEIGHT:
- 18.7''
- SHIP CARTON LENGTH:
- 28.03
- SHIP CARTON WIDTH:
- 15.75''
- SHIP WEIGHT:
- 19.62
- BULB INCLUDED:
- NO
- CANOPY HEIGHT:
- 3.52''
- CANOPY WIDTH:
- 8.46''
- CETLUS APPROVED:
- YES
- IP CUBIC:
- 4.78
- MOUNTING LOCATION:
- DAMP
- NUMBER OF BLADES:
- 3
- REVERSIBLE MOTOR:
- NO
- COLLECTION - FAMILY:
- BELLOWS I
- BULB DIMMABLE:
- N/A
- BULB SHAPE:
- N/A
- KELVIN:
- N/A
- More Info {1}:
- BELLOWS I INDOOR/OUTDOOR BLADES INCLUDED
- More Info {2}:
- HEAVY_DUTY 3 SPEED OSCILLATING MOTOR
- COLOR RENDERING INDEX (CRI):
- N/A
- DOWNROD 1 LENGTH (IN):
- 0
- DOWNROD 1 QTY:
- 0
- DOWNROD 2 LENGTH (IN):
- 0
- DOWNROD 2 QTY:
- 0
- LEADWIRE LENGTH (IN):
- 80
- PRODUCT TYPE:
- WALL FAN (BLADES INCLUDED)
- CFM LOW:
- 82X25
- More Info {3}:
- LIMITED LIFETIME WARRANTY
- More Info {4}:
- NOT LIGHT KIT ADAPTABLE
- More Info {5}:
- SEPERATE CONTROL KNOBS FOR SPEED CONTROL AND OSCILLATION FEATURES
- More Info {6}:
- WALL MOUNT INSTALLATION
- More Info {7}:
- WALL MOUNT INSTALLATION
- ARM PITCH:
- 7
- DAMP RATED:
- YES
- CARTON CUBIC FEET:
- 4.78
- INDOOR:
- YES
- LOCATION RATING:
- DAMP RATED
- MOUNT TYPE:
- WALL
- WEIGHT:
- 13.73
- DARK SKY:
- NO
- PACKAGE QUANTITY:
- 1
- WIFI CONTROL INCLUDED:
- NO
- OUTDOOR:
- YES
- OPTION1:
- OUTDOOR
