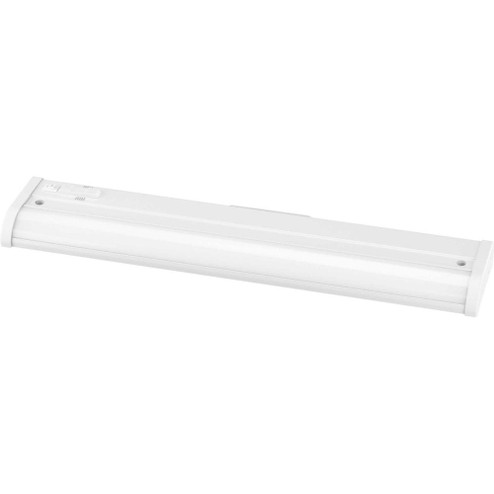

Combine elegant design with energy-efficient LED light in the Hide-A-Lite Collection 1-Light 18-Inch Satin White Modern LED Linear Undercabinet Light. The fixture's frame is coated in a crisp satin white finish. An access plate and quick connect wire connectors make installation easy. The fixture is directly wired. Two armored cable fittings are included. The 5-CCT selectable LED light engine offers flexibility in application, allowing the choice of 5 different color temperatures allowing for the best lighting color to fulfill the design intent. An on-off switch on the front allows for easy task light illumination. {ADDITIONAL FINISH INFORMATION: ''Satin White''}
- OPTION:
- DAMP RATED
- STYLE:
- Commodity Contemporary Modern Traditional Transitional Utilitarian
- FAMILY:
- Hide-a-Lite
- NUMBER OF BULBS:
- 1
- BACKPLATE HEIGHT:
- 0.12''
- BACKPLATE WIDTH:
- 17.27''
- BULB HOURS:
- 50000
- INTRODUCTION DATE:
- 01/01/2021
- KELVIN:
- 2700 3000 3500 4000 5000
- LENGTH:
- 17.50
- LUMENS / LIGHT OUTPUT:
- 457
- MATERIAL:
- Aluminum
- SHIP CARTON HEIGHT:
- 3.58''
- SHIP CARTON LENGTH:
- 19.12
- SHIP CARTON WIDTH:
- 1.37''
- SHIP WEIGHT:
- 1.40
- SPECIAL FEATURES:
- Application: Combine elegant design with energy-efficient LED light in the Hide-A-Lite Collection 1-Light 18-Inch Satin White Modern LED Linear Undercabinet Light ideal for any bar closet garage kitchen laundry room pantry self-stora...
- VENDOR SHIP METHOD:
- NON UPS SHIPPABLE FALSE
- VOLTAGE:
- 120 VAC
- WARRANTY:
- 5-year limited
- WEIGHT:
- 1.02
- WIRE INCLUDED:
- 6 IN
- AMERICANS WITH DISABILITIES ACT:
- Yes
- BACKPLATE DEPTH:
- 3.02
- CAN BE MOUNTED UP OR DOWN:
- NO
- COLOR GENERIC:
- White
- CONSTRUCTION MATERIAL:
- Housing
- CONVERTIBLE FIXTURE INCLUDES BOTH MOUNTS:
- FALSE
- CRI:
- 90
- DAMP RATED:
- Yes
- DARK SKY:
- NO
- DESIGN SERIES:
- No
- DIMMING COMPATABILITY:
- EATON AAL06 IDEVICES IDEV009 LEVITON_TRIMATRON 6681 LEVITON IPI06-1LZ LEVITON 6672 LEVITON 6674 LUTRON NTEVL-300 LUTRON DVELV-300P LUTRON DVCL-253P LUTRON CASETA WIRELESS LUTRON AYCL-153P LUTRON SCL-153P LUTRON TGCL-153-PH-WH LUTRON MACL-1...
- DIMMING PROTOCOL:
- Triac/Forward Phase ELV/Reverse Phase
- DIMMING RANGE:
- Dims to 10% Brightness
- FINISH:
- WHITE
- FREQUENCY RATING:
- 60 Hz
- GROUNDED CONVENIENCE OUTLET INCLUDED:
- NO
- JA8:
- 2019
- LAMP TYPE BASIC:
- solid state
- LED:
- Yes
- LUMEN PER WATT:
- 70
- MOUNT LOCATION:
- Undercabinet
- NON UPS SHIPPABLE:
- FALSE
- POST TOP FITS STANDARD:
- NO
- PROPOSITION 65 CANCER:
- Yes
- PROPOSITION 65 REPRODUCTIVE HARM:
- Yes
- PROPOSITION 65 WARNING REQUIRED?:
- Yes
- QUICK INSTALL CANOPY:
- NO
- QUICK LINK CONNECTOR:
- NO
- ROOM TYPE:
- Bar Closets Garage Kitchen Laundry Pantry Self-storage Store Rooms Utility Work Areas
- SAFETY RATING:
- cCSAus
- SHORT DESCRIPTION:
- 18'' LED white linear 5-CCT selectable undercabinet light
- SOCKET BASE TYPE:
- Integrated
- STARTING TEMPERATURE - MINIMUM:
- -25 °C
- SUB BRAND:
- Progress LED
- HEIGHT:
- 1.05
- WIDTH:
- 3.28
- LAMPS:
- YES
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- BULBS:
- 6.5 WATT INTEGRATED LED:6.5 WATT INTEGRATED LED:1
- STANDARD STYLE:
- TRADITIONAL
- WEIGHT OF FIXTURE EXCEEDS NEC LIMITS:
- No
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 0-15''
- FINISH TYPE:
- Painted
- AVAILABLE FOR PURCHASE:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- SPECIAL FEATURES1:
- APPLICATION: IDEAL FOR ANY GREAT ROOM BEDROOM LIVING ROOM OR BONUS ROOM. STYLES: PERFECT FOR FARMHOUSE RUSTIC AND COASTAL STYLE SETTINGS. IDEAL FOR BOOSTING AIRFLOW IN SMALLER SPACES. BLADES: 12 SWEEPING BLADES ARE COATED IN A RUSTIC ...
- TITLE 24:
- YES
- OPTION1:
- ENERGY EFFICIENT
- OPTION2:
- ENERGY STAR
- OPTION3:
- TITLE 24
- BULB TYPE:
- INTEGRATED LED
- BULB BASE:
- INTEGRATED
- BULB CRI:
- 90 CRI
- BULB INCLUDED:
- YES
- CERTIFIED LISTED LOCATION:
- DAMP LOCATION LISTED
- CONSTRUCTION MATERIAL MAIN PART:
- HOUSING
- ENERGY EFFICIENT:
- YES
- ENERGY STAR:
- YES
- LAMP WATTAGE:
- 6.5
- LUMENS PER WATT:
- 70.00
- PROP 65:
- YES
- PROP 65 DESCRIPTION:
- REPRODUCTIVE HARM CANCER
- STARTING TEMPERATURE MINIMUM:
- -25 °C
- TITLE 20:
- NO
