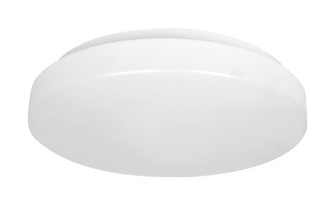

19 inch; Flush Mounted LED Fixture; CCT Selectable; Round; White Acrylic {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- YES
- STYLE:
- UTILITY
- BULB HOURS:
- 50000
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIAMETER:
- 19
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.11.8010
- LUMENS:
- 2527L-2732L
- WARRANTY:
- 5 YEAR LIMITED - FIXTURES
- CARTONS PER UNIT:
- 1
- CRI:
- 90
- DIMMABLE FUNCTION:
- DIMMING RANGE FROM 100 TO LESS THAN OR EQUAL TO 20 PERCENT DEPENDING ON DIMMER CONTROL
- LOCATION RATING:
- DAMP
- OPERATING TEMP:
- -20C (-4F) TO +40C (+104F)
- PHOTOCELL:
- NO PHOTOCELL
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 4.75
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 19.00
- WIDTH RANGE:
- 15-20''
- FINISH:
- WHITE
- STANDARD STYLE:
- TRADITIONAL
- QUANTITY AVAILABLE AT MANUFACTURER:
- 185
- SHIP CARTON HEIGHT:
- 21.85''
- SHIP CARTON LENGTH:
- 5.31
- SHIP CARTON WIDTH:
- 21.85''
- SHIP WEIGHT:
- 3.81
- CARTON CUBIC FEET:
- 1.4671
- COLOR TEMPRATURE:
- WARM TO COOL WHITE
- BEAM ANGLE:
- 130
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 1KV
- CCT SELECTABLE:
- YES
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- CLOSET RATED:
- YES
- CONNECTION:
- HARDWIRE
- DIMMING TYPE:
- FORWARD PHASE OR REVERSE PHASE OR PHASE SELECTABLE OR TRIAC
- ES UNIQUE ID:
- ESID-2394820
- FCC COMPLIANT:
- YES
- FEATURE 1:
- CCT SELECTABLE
- FEATURE 2:
- ENERGY STAR RATED
- FEATURE 3:
- COMPLIES WITH NEC 410.16(A)(3) AND NEC 410.16(C)(5)
- FEATURE 4:
- 90 CRI
- FEATURE 5:
- RATED FOR 50K HOURS
- FEATURE 6:
- 5 YEAR WARRANTY
- FINISH FAMILY:
- WHITE
- FIXTURE SHAPE:
- ROUND
- INDOOR OUTDOOR:
- INDOOR
- IOT ENABLED:
- NO
- LENS FINISH:
- WHITE
- LENS MATERIAL:
- ACRYLIC
- LONG DESCRIPTION:
- NUVO'S 62-1218 LED CLOUD FIXTURE NOW FEATURES SATCO'S COLORQUICK SELECTABLE CCT TECHNOLOGY VERSIONS FOR EVEN MORE VERSATILITY. THIS 19 INCH ROUND OPTION WITH A PMMA NON-YELLOWING LENS AND A DAMP LOCATION RATING MAKES THIS FIXTURE BOTH DUR...
- MATERIAL:
- STEEL
- MOUNTING PROCEDURE:
- CEILING/WALL
- PACK TYPE:
- BOX
- POWER FACTOR:
- 0.97
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- SLOPED CEILING COMPATIBLE:
- YES
- TEMPERATURE (CCT):
- 3000K/4000K/5000K
- WEIGHT LB.:
- 3.01
- CEILING:
- YES
- AMPS:
- 0.267A
- SDS SHEET LINK:
- #REF!
- BULB KELVIN:
- WARM TO COOL WHITE
- BEAM SPREAD:
- 130
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- LAWFUL FOR SALE
- INCANDESCENT EQUIVALENT:
- 75W
- NEC COMPLIANCE:
- CLOTHES CLOSET CERTIFIED - REG: 410.16 (A)(3) AND 410.16 (C)(5)
- OPERATING TEMPRATURE:
- -20C (-4F) TO +40C (+104F)
- REPLACEABLE LIGHT SOURCE:
- NO
- REPLACES:
- #REF!
- SAFETY LISTING:
- CETLUS
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- WATTAGE SELECTABLE:
- NO
- OPERATING FREQUENCY:
- 60HZ
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM TO COOL WHITE
- EACH HEIGHT:
- 21.85''
- EACH LENGTH:
- 5.31
- EACH WIDTH:
- 21.85''
- TARIFF CODE:
- 9405.11.8010
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 1.4671
- EACH QUANTITY:
- 1
- EFFICACY:
- 78.97/82.17/85.38 LPW
- JA8 COMPLIANT:
- NO
- R9 VALUE:
- 78
- ROMANCE COPY:
- LED CLOUD FIXTURES NOW FEATURE SATCO'S COLORQUICK SELECTABLE CCT TECHNOLOGY VERSIONS FOR EVEN MORE VERSATILITY. OFFERED IN BOTH SQUARE AND ROUND OPTIONS WITH A PMMA NON-YELLOWING LENS AND A DAMP LOCATION RATING THESE FIXTURES ARE BOTH DUR...
- SHORT DESCRIPTION:
- 19'' ACRYLIC LED FLUSH FIXTURE
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- IMAGE INFO:
- ''''
- ANSI BASE:
- INTEGRATED
