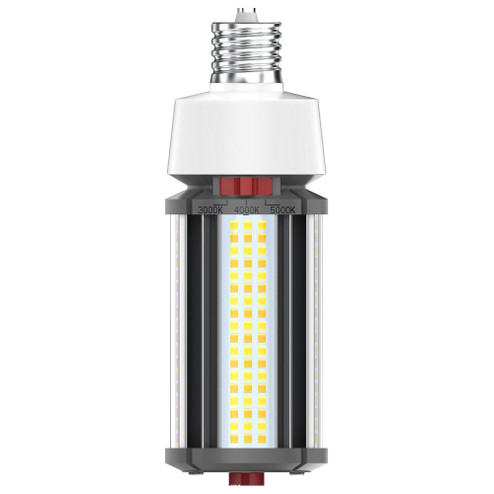

27/22/18 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Extended Mogul base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- NO
- BULB HOURS:
- 50000
- BULB KELVIN:
- 3000K/4000K/5000K
- DIAMETER:
- 2.32
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 8539.52.0091
- LENGTH:
- 7.48
- LUMENS:
- 3780L/3080L/2520L
- SHIP CARTON HEIGHT:
- 2.83''
- SHIP CARTON LENGTH:
- 8.859999999999999
- SHIP CARTON WIDTH:
- 2.83''
- SHIP WEIGHT:
- 0.95
- VOLTS:
- 120V-277V
- WARRANTY:
- 5-YEARS
- WEIGHT:
- 0.75
- BEAM SPREAD:
- 360
- BULB ANSI BASE:
- EX39
- BULB BASE:
- MOGUL EXTENDED
- BULB FINISH:
- WHITE
- BURNING POSITION:
- UNIVERSAL
- CARTON CUBIC FEET:
- 0.0411
- CARTONS PER UNIT:
- 1
- CRI:
- 80+
- DIMMABLE FUNCTION:
- DIMMABLE ONLY VIA THE WATTAGE/LUMEN SELECTABLE DIAL INCLUDED ON LAMP
- HID EQUIVALENT:
- 125W/100W/75W
- HOUSING COLOR:
- DARK GRAY
- LAMP FILAMENT:
- LED
- LOCATION RATING:
- DAMP
- OPERATING TEMP:
- -30C (-22F) TO +45C (+113F)
- PACK TYPE:
- BOX
- WATTS:
- 27W/22W/18W
- LAMPS:
- YES
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- WIDTH:
- 2.32
- WIDTH RANGE:
- 0-15''
- CEC:
- EXEMPT - BASE NOT REGULATED
- QUANTITY AVAILABLE AT MANUFACTURER:
- 116
- COLOR TEMPRATURE:
- WARM TO COOL WHITE
- IP RATING:
- IP64
- NSF APPROVED:
- NO
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 4KV
- IMAGE INFO:
- ''S23151.JPG:DEFAULT''
- BULB SHAPE:
- CORNCOB
- ADDITIONAL INFO:
- SAFETY CABLE PROVIDED WITH S23143 S23144 S23145 ONLY AND IS REQUIRED UPON INSTALLATION OF THESE HIGH BAY BASE-UP APPLICATIONS. (PLEASE SEE INSTRUCTIONS)
- BALLAST BYPASS DIRECT:
- BALLAST BYPASS
- BALLASTING REQUIREMENTS:
- BALLAST BYPASS
- CCT SELECTABLE:
- YES
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- DLC APPROVED:
- YES
- DLC CLASSIFICATION:
- STANDARD
- DLC ID:
- S-HJ4T6Y
- DLC PRIMARY USE:
- REPLACEMENT LAMPS FOR OUTDOOR POLE/ARM-MOUNTED DECORATIVE LUMINAIRES (TYPE B)
- ENCLOSURE RATING:
- BOTH
- FCC COMPLIANT:
- YES
- FEATURE 1:
- CCT SELECTABLE-3000K 4000K 5000K
- FEATURE 2:
- WATTAGE SELECTABLE
- FEATURE 3:
- ENCLOSED FIXTURE RATED
- FEATURE 4:
- ADVANCED THERMAL MANAGEMENT
- FEATURE 5:
- DAMP LOCATION RATED
- FEATURE 6:
- 4KV BUILT IN SURGE PROTECTION
- FEATURE 7:
- RATED FOR 50000 HOURS OF USE
- FEATURE 8:
- DLC LISTED
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- IOT ENABLED:
- NO
- LAMP BALLAST TYPE A/B/C:
- TYPE B
- LENS MATERIAL:
- PLASTIC
- LONG DESCRIPTION:
- THE NEWEST GENERATION OF OUR POPULAR HI-PRO COMMERCIAL LED LAMPS PROVIDES UP TO 80 PERCENT IN ENERGY SAVINGS AND BRINGS ADVANCED FEATURES ALLOWING THEM TO ADJUST TO MORE APPLICATIONS. SATCO NUVO'S S23151 HAS CCT AND WATTAGE SELECTABLE CAPA...
- MATERIAL:
- ALUMINUM
- OPERATING FREQUENCY:
- 50/60HZ
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- TECHNOLOGY:
- LED
- WATTAGE SELECTABLE:
- YES
- ENCLOSURE RATING1:
- YES
- STANDARD STYLE:
- TRADITIONAL
- DIMMING TYPE:
- STEP DIMMING
- More Info {1}:
- POWER SELECTABLE
- More Info {2}:
- ADVANCED THERMAL MANAGEMENT
- More Info {3}:
- CCT SELECTABLE-3000K 4000K 5000K
- More Info {4}:
- DAMP LOCAION RATED
- More Info {5}:
- DLC LISTED
- More Info {6}:
- ENCLOSED FIXTURE RATED
- More Info {7}:
- RATED FOR 50000 HOURS OF USE
- More Info {8}:
- WATTAGE SELECTABLE
- ORDER IN MULTIPLES OF:
- 1
- BAA COMPLIANT:
- NO
- INCANDESCENT EQUIVALENT:
- 100W
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- SDS SHEET LINK:
- #REF!
- B.U. G. RATING:
- B1-U5-G2
- EFFICACY:
- 140.00/140.00/140.00 LPW
- ENCLOSED FIXTURE USE:
- YES
- R9 VALUE:
- 28
- ROMANCE COPY:
- THE NEWEST GENERATION OF SATCO NUVO'S POPULAR HI-PRO COMMERCIAL LED LAMPS PROVIDES UP TO 80 PERCENT IN ENERGY SAVINGS AND BRINGS ADVANCED FEATURES ALLOWING THEM TO ADJUST TO MORE APPLICATIONS. THE CCT WATTAGE SELECTABLE CAPABILITY BUILT IN...
- SHORT DESCRIPTION:
- 27W/LED/CCT/100-277V/EX39
- STYLE:
- CONTEMPORARY
- TITLE 20 COMPLIANT:
- EXEMPT
- TOTAL HARMONIC DISTORTION:
- 15.50%
- CA PROP-65:
- LEAD
- EA LENGTH:
- 8.859999999999999
- SHAP CARTON WIDTH:
- 2.83''
- INSTALLATION NOTES:
- NOT FOR USE IN VAPOR TIGHT FIXTURES.
- TITLE 24 COMPLIANT:
- NO
- JA8 COMPLIANT:
- NO
- BULB DIMMABLE:
- BOX
- START TYPE:
- CONTEMPORARY
- FINISH:
- LIGHT BULBS
- CATEGORY:
- LED
- SUB-CATEGORY:
- HID REPLACEMENTS
- COUNTRY OF ORIGIN:
- CHINA
- 5/2/2025 21:
- 28
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
