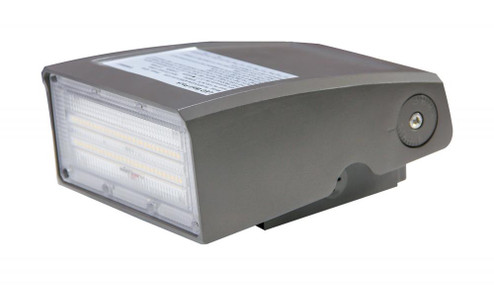

28 Watt Adjustable LED Wall Pack; CCT Selectable; 3360-3500 Lumens; DLC Premium {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- STYLE:
- Utility
- BULB DIMMABLE:
- 1-10V Dimming Only
- BULB HOURS:
- 50000
- BULB TYPE:
- LED
- EXTENDS:
- 10.46
- LUMENS:
- 3360L-3500L
- SHIP CARTON HEIGHT:
- 6.3''
- SHIP CARTON LENGTH:
- 10.43
- SHIP CARTON WIDTH:
- 8.47''
- SHIP WEIGHT:
- 4.08
- WARRANTY:
- 5 Year Limited - Fixtures
- ADDITIONAL INFO:
- Fixture head is adjustable 0-90 degrees from wall
- BEAM ANGLE:
- 65x95
- CARTON CUBIC FEET:
- 0.3221
- CARTONS PER UNIT:
- 1
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- CRI:
- 80
- DLC APPROVED:
- Yes
- DLC ID:
- PLR9U25CE35P
- IP RATING:
- IP65
- LOCATION RATING:
- Wet
- OPERATING TEMP:
- -40C (-40F) TO +40C (+104F)
- PACK TYPE:
- Box
- SURGE PROTECTION:
- Built-in surge protection - 4KV
- HEIGHT:
- 8.08
- WIDTH:
- 6.50
- LOCAL_ON_DISPLAY:
- 1
- ON DISPLAY IN SHOWROOM:
- Yes
- IN STOCK IN SHOWROOM:
- No
- HARMONIZED CODES:
- 9405.42.6000
- COLOR TEMPRATURE:
- Warm to Cool White
- FINISH:
- BRONZE
- Standard Style:
- Traditional
- DIMMABLE:
- Yes-Dimmable
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- BULB SHAPE:
- Integrated LED
- DIMMABLE FUNCTION:
- 0-10V DIMMING ONLY
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 21
- ANSI BASE:
- INTEGRATED
- B_U_G_RATING:
- B1-U2-G1
- CCT SELECTABLE:
- YES
- DIMMING TYPE:
- 0-10V
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- OUTDOOR FULL-CUTOFF WALL-MOUNTED AREA LUMINAIRES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- IP65 RATING FOR ALL-WEATHER DURABILITY
- FEATURE 2:
- 90 DEGREE ADJUSTABLE HEAD
- FEATURE 3:
- 0-10V DIMMING
- FEATURE 4:
- MAINTENANCE FREE
- FEATURE 5:
- POLYCARBONATE LENS DIE-CAST ALUMINUM BODY
- FEATURE 6:
- OPERATING TEMPERATURE: -40C (-40F) TO A MAXIMUM OF 40C (104F)
- FINISH FAMILY:
- BRONZE
- HAS DRIVER:
- YES
- HID EQUIV:
- 70W-100W
- INDOOR OUTDOOR:
- OUTDOOR
- LENS MATERIAL:
- IMPACT RESISTANT PC
- LONG DESCRIPTION:
- SATCO
- MATERIAL:
- DIE-CAST ALUMINUM
- MOUNTING PROCEDURE:
- WALL
- NUMBER OF LAMPS:
- 1
- OPERATING FREQUENCY:
- 50-60HZ
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 3000K/4000K/5000K
- WEIGHT LB.:
- 3.31
- WIRE TEMP RATING:
- 105C (221F)
- LAMPS:
- YES
- DARK SKY RATED:
- NO
- AMPS:
- 0.233-0.101A
- SDS SHEET LINK:
- #REF!
- BULB KELVIN:
- WARM TO COOL WHITE
- BEAM SPREAD:
- 65X95
- CA PROP-65:
- LEAD
- INCANDESCENT EQUIVALENT:
- 200W
- OPERATING TEMPRATURE:
- -40C (-40F) TO +40C (+104F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CULUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- More Info {1}:
- 0-10V DIMMING
- More Info {2}:
- 90 DEGREE ADJUSTABLE HEAD
- More Info {3}:
- IP65 RATING FOR ALL-WEATHER DURABILITY
- More Info {4}:
- MAINTENANCE FREE
- More Info {5}:
- OPERATING TEMPERATURE: -40C (-40F) TO A MAXIMUM OF 40C (104F)
- More Info {6}:
- POLYCARBONATE LENS DIE-CAST ALUMINUM BODY
- CONNECTION:
- HARDWIRE
- CEC WEB TEXT:
- LAWFUL FOR SALE
- WATTAGE SELECTABLE:
- NO
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM TO COOL WHITE
- EACH HEIGHT:
- 6.3''
- EACH LENGTH:
- 10.43
- EACH WIDTH:
- 8.470000000000001''
- TARIFF CODE:
- 9405.42.6000
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.3221
- EACH QUANTITY:
- 1
- EFFICACY:
- 120.00/122.50/125.00 LPW
- JA8 COMPLIANT:
- NO
- ROMANCE COPY:
- THIS RUGGED WALL PACK FEATURES COLOR QUICK SELECTABLE COLOR TEMPERATURE ALONG WITH ADVANCEMENTS IN DESIGN TO MINIMIZE LIGHT TRESPASS. THE PACK IS DLC PREMIUM CERTIFIED AND DELIVERS 50000 HOURS OF SUPERIOR ENERGY-EFFICIENT LED LIGHT.
- SHORT DESCRIPTION:
- 28W ADJUSTABLE WALL PACK
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 9.70%
- WALL:
- YES
