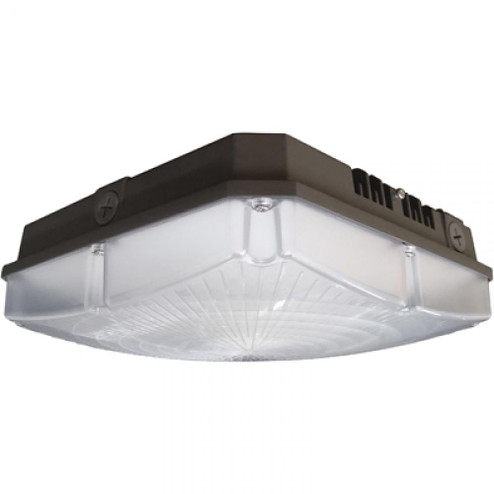

LED Canopy Fixture; 28W; 4000K; 120-277V {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- STYLE:
- Utility
- BULB DIMMABLE:
- 1-10V Dimming Only
- BULB HOURS:
- 50000
- BULB SHAPE:
- Integrated LED
- BULB TYPE:
- LED
- HARMONIZED CODES:
- 9405.11.6020
- LENGTH:
- 8.5
- LUMENS:
- 3360L
- SHIP CARTON HEIGHT:
- 10.51''
- SHIP CARTON LENGTH:
- 10.39
- SHIP CARTON WIDTH:
- 5.04''
- SHIP WEIGHT:
- 3.53
- VOLTAGE:
- 277V
- WARRANTY:
- 5-YEARS
- CARTON CUBIC FEET:
- 0.3185
- CARTONS PER UNIT:
- 1
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- COLOR TEMPRATURE:
- Cool White
- CRI:
- 80+
- DLC APPROVED:
- Yes
- DLC ID:
- PL9JAGKOXH4R
- IP RATING:
- IP65
- LOCATION RATING:
- Wet
- OPERATING TEMP:
- -40C (-40F) TO +40C (+104F)
- PACK TYPE:
- Box
- PHOTOCELL:
- Multiple Optional Sensors Available
- HEIGHT:
- 3.75
- WIDTH:
- 8.50
- FINISH:
- SPECIALTY ITEMS
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- BULBS:
- 28W WATT:28W WATT:1
- BEAM ANGLE:
- 150
- STANDARD STYLE:
- TRADITIONAL
- DIMMABLE:
- Yes-Dimmable
- DIMMABLE FUNCTION:
- 0-10V DIMMING ONLY
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- NO
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 0
- ANSI BASE:
- INTEGRATED
- B_U_G_RATING:
- B2-U3-G1
- CONNECTION:
- DIRECT WIRED
- DIMMING TYPE:
- 0-10V
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- PARKING GARAGE LUMINAIRES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- LENGTH: 8.50 INCHES WIDTH: 8.50 INCHES HEIGHT: 3.75 INCHES''
- FEATURE 2:
- DIMMABLE
- FEATURE 3:
- WET LOCATION RATED FOR OUTDOOR USE
- FEATURE 4:
- 150 DEGREE BEAM SPREAD
- FEATURE 5:
- SUPERIOR 80 CRI LIGHT QUALITY
- FEATURE 6:
- 5 YEAR LIMITED WARRANTY
- FEATURE 7:
- 3360 LUMENS
- FEATURE 8:
- RATED FOR 50000 HOURS
- FEATURE 9:
- UV STABILIZED POWDER COATED FINISH
- FINISH FAMILY:
- BRONZE
- FIXTURE SHAPE:
- SQUARE
- INDOOR OUTDOOR:
- OUTDOOR
- LONG DESCRIPTION:
- SATCO NUVO'S 65-138 28 WATT 8.5 INCH LOW PROFILE CANOPY FIXTURE PROVIDES BROAD EVEN LIGHT DISTRIBUTION. PERFECT FOR COMMERCIAL OR LARGE AREA LIGHTING APPLICATIONS THIS DIMMABLE SQUARE FIXTURE IS MADE OF DIE CAST ALUMINUM WITH A BRONZE ...
- MATERIAL:
- DIE-CAST ALUMINUM
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 4000K
- WEIGHT LB.:
- 3.35
- LAMPS:
- YES
- AMPS:
- 0.280-0.101A
- SDS SHEET LINK:
- #REF!
- BULB KELVIN:
- COOL WHITE
- BEAM SPREAD:
- 150
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- LAWFUL FOR SALE
- OPERATING TEMPRATURE:
- -40C (-40F) TO +40C (+104F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CULUS - CERTIFIED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CCT SELECTABLE:
- NO
- LENS MATERIAL:
- POLYCARBONATE (PC)
- WATTAGE SELECTABLE:
- NO
- INCANDESCENT EQUIVALENT:
- 200W
- OPERATING FREQUENCY:
- 50/60HZ
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- COOL WHITE
- EACH HEIGHT:
- 10.51''
- EACH LENGTH:
- 10.39
- EACH WIDTH:
- 5.04''
- TARIFF CODE:
- 9405.11.6020
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.3185
- EACH QUANTITY:
- 1
- EFFICACY:
- 120.00 LPW
- JA8 COMPLIANT:
- NO
- R9 VALUE:
- 21
- ROMANCE COPY:
- SATCO NUVO'S 28 WATT 8.5 INCH LOW PROFILE CANOPY FIXTURE PROVIDES BROAD EVEN LIGHT DISTRIBUTION. PERFECT FOR COMMERCIAL OR LARGE AREA LIGHTING APPLICATIONS THIS DIMMABLE SQUARE FIXTURE IS MADE OF DIE CAST ALUMINUM WITH A BRONZE FINISH....
- SHORT DESCRIPTION:
- 28W LED CANOPY FIXTURE 8.5''
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 10.20%
- ORDER IN MULTIPLES OF:
- 1
- IMAGE INFO:
- 4/29/2025 4:23
- CATEGORY:
- SURFACE MOUNT
- SUB CATEGORY:
- CANOPY FIXTURE
- ADDITIONAL INFO:
- UV STABILIZED POWDER COATED FINISH
- COUNTRY OF ORIGIN:
- VIETNAM
- 4/29/2025 14:
- 18
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
- IOT ENABLED:
- NO
