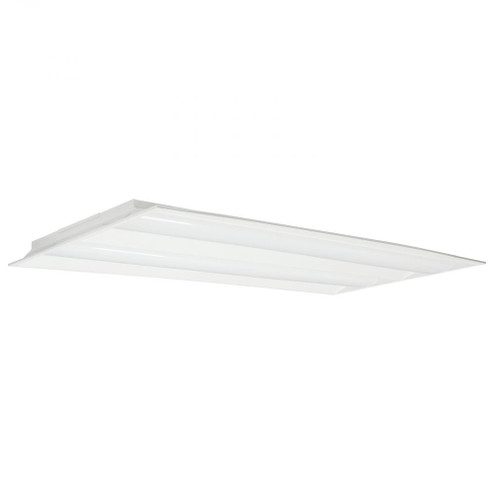

2X4 Emergency Backup; Double Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- BULB HOURS:
- 50000
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.10.6020
- LENGTH:
- 47.72
- SHIP CARTON HEIGHT:
- 25.71''
- SHIP CARTON LENGTH:
- 49.49
- SHIP CARTON WIDTH:
- 4.33''
- SHIP WEIGHT:
- 16.1
- WARRANTY:
- 5-YEARS
- ANSI BASE:
- INTEGRATED
- BEAM ANGLE:
- 120
- CARTON CUBIC FEET:
- 3.1883
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- FCC COMPLIANT:
- YES
- FIXTURE SHAPE:
- RECTANGLE
- FLICKER FREE:
- YES
- HAS DRIVER:
- YES
- HAS EMERGENCY BATTERY:
- YES
- IC RATED:
- YES
- INDOOR OUTDOOR:
- INDOOR
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- PACK TYPE:
- BOX
- PANEL SIZE:
- 2X4
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- LAMPS:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 114
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 3.02
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 23.74
- WIDTH RANGE:
- 20-25''
- SDS SHEET LINK:
- #REF!
- SDS CLASS:
- LED_FIXTURE
- ADDITIONAL INFO:
- 90 MINUTE BATTERY RUNTIME
- LUMENS:
- 3300L-5750L
- BEAM SPREAD:
- 120
- CA PROP-65:
- LEAD
- CRI:
- 80+
- DIMMABLE FUNCTION:
- 0-10V DIMMING
- DLC CLASSIFICATION:
- STANDARD
- DLC PRIMARY USE:
- 2X4 LUMINAIRES FOR AMBIENT LIGHTING OF INTERIOR COMMERCIAL SPACES
- HID EQUIV:
- 70W-125W
- IP RATING:
- IP20
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMPRATURE:
- -20C (-4F) TO +40C (+104F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CULUS - CERTIFIED
- WATTAGE SELECTABLE:
- YES
- CEC:
- T20 SBCS LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- AMPS:
- 0.300-0.108/0.400-0.144/0.500-0.181A
- FEATURE 1:
- 3 CCT SELECTABLE ( 3500K 4000K 5000K)
- FEATURE 2:
- 3 WATTAGE SELECTABLE (30W 35W 40W)
- FEATURE 3:
- 0-10V DIMMABLE
- FEATURE 4:
- DLC LISTED
- FEATURE 5:
- LENGTH: 47.72 INCHES X WIDTH: 23.74 INCHES X HEIGHT: 3.02 INCHES''
- LONG DESCRIPTION:
- SATCO NUVO'S 65-697 2X4 EMERGENCY BACKUP DOUBLE BASKET RECTANGULAR TROFFER COMES IN FIELD SELECTABLE POWER AND COLOR OPTIONS. CHOOSE FROM THREE DISTINCT WATTAGE SETTINGS AND COLOR TEMPERATURES DURING INSTALLATION. ENGINEERED WITH CUTTING-E...
- TEMPERATURE (CCT):
- 3500K/4000K/5000K
- WEIGHT LB.:
- 15.54
- INCANDESCENT EQUIVALENT:
- 125W
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- EACH HEIGHT:
- 25.71''
- EACH LENGTH:
- 49.49
- EACH WIDTH:
- 4.33''
- TARIFF CODE:
- 9405.10.6020
- BAA COMPLIANT:
- NO
- EACH CUBE:
- 3.1883
- EACH QUANTITY:
- 1
- EFFICACY:
- 110.00/113.13/115.00 LPW
- JA8 COMPLIANT:
- NO
- LENS MATERIAL:
- POLY METHYL METHACRYLATE (PMMA)
- MATERIAL:
- STEEL
- R9 VALUE:
- 14
- ROMANCE COPY:
- SATCO NUVO'S VERSATILE SINGLE AND DOUBLE BASKET TROFFERS NOW COME IN FIELD SELECTABLE POWER AND COLOR OPTIONS. CHOOSE FROM THREE DISTINCT WATTAGE SETTINGS AND COLOR TEMPERATURES DURING INSTALLATION. ENGINEERED WITH CUTTING-EDGE DRIVER TECH...
- SHORT DESCRIPTION:
- 2X4 EM DOUBLE BASKET TROFFER
- TITLE 20 COMPLIANT:
- YES
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- <20%
- COLOR TEMPERATURE:
- NEUTRAL WHITE TO NATURAL LIGHT
- ORDER IN MULTIPLES OF:
- 1
- BATTERY CHEMISTRY:
- LITHIUM-ION (LI-ION)
- FINISH:
- RECESSED LTG.
- IMAGE INFO:
- 4/29/2025 4:24
- STANDARD STYLE:
- OTHER RECESSED LTG.
- CATEGORY:
- TROFFER
- SUB CATEGORY:
- DOUBLE BASKET
- COUNTRY OF ORIGIN:
- CHINA
- 4/29/2025 14:
- 17
- HAS CAMERA:
- NO
- IOT ENABLED:
- NO
