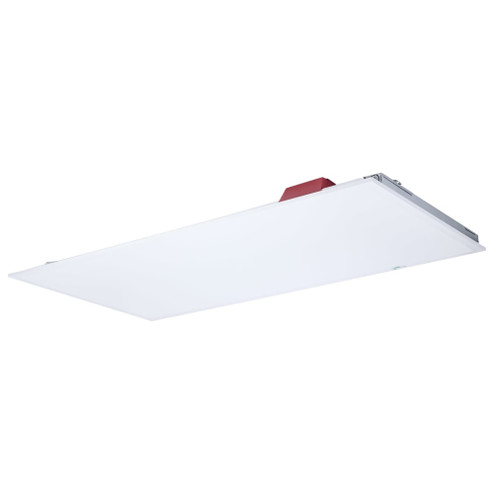

30/40/50 Wattage Selectable LED 2ft x 4ft Backlit Panel; 35K/4K/5K CCT Selectable; Emergency Battery; 120-347 Range Voltage; White Finish {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- NO
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- STYLE:
- UTILITY
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- NEUTRAL WHITE TO NATURAL LIGHT
- DIMMABLE:
- YES-DIMMABLE
- EACH HEIGHT:
- 24.69''
- EACH LENGTH:
- 48.7
- EACH WIDTH:
- 2.91''
- LENGTH:
- 47.76
- LUMENS:
- 3750L/4500L/6250L
- TARIFF CODE:
- 9405.11.6020
- WARRANTY:
- 5-YEARS
- AMPS:
- 0.080-0.420A
- ANSI BASE:
- INTEGRATED
- BAA COMPLIANT:
- NO
- BATTERY CHEMISTRY:
- LIFEPO4
- BEAM ANGLE:
- 120
- CA PROP-65:
- LEAD
- CCT SELECTABLE:
- YES
- CEC:
- T20 LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- CONNECTION:
- HARDWIRE
- CRI:
- 80+
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- DIMMABLE FUNCTION:
- 0-10V DIMMING
- DLC CLASSIFICATION:
- PREMIUM STANDARD
- DLC PRIMARY USE:
- 2X4 LUMINAIRES FOR AMBIENT LIGHTING OF INTERIOR COMMERCIAL SPACES LOW-BAY LUMINAIRES FOR COMMERCIAL AND INDUSTRIAL BUILDINGS
- EACH CUBE:
- 2.0249
- EACH QUANTITY:
- 1
- EFFICACY:
- 125.00/112.50/125.00 LPW
- FCC COMPLIANT:
- YES
- FEATURE 1:
- FIELD SELECTABLE - 3 CCT AND 3 WATTAGE
- FEATURE 2:
- 2X4 PANEL
- FEATURE 3:
- EMERGENCY BATTERY BACKUP MODEL
- FEATURE 4:
- 120-347 VOLTAGE
- FEATURE 5:
- STEEL BODY WITH DIE-CAST ALUMINUM TRIM FOR SEAMLESS CORNERS
- FEATURE 6:
- TAA COMPLIANT
- FEATURE 7:
- DAMP LOCATION RATED
- FEATURE 8:
- 5 YEAR WARRANTY
- FEATURE 9:
- 50000 HOUR FUNCTIONAL LIFE
- FIXTURE SHAPE:
- RECTANGLE
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- YES
- INCANDESCENT EQUIVALENT:
- 250W
- INDOOR OUTDOOR:
- INDOOR
- IOT ENABLED:
- NO
- IP RATING:
- IP20
- LENS MATERIAL:
- POLYSTYRENE (PS)
- LONG DESCRIPTION:
- THE SATCO NUVO 65-1676 BACKLIT PANEL PROVIDES DEPENDABLE ILLUMINATION WITH SELECTABLE WATTAGES OF 30W 40W OR 50W AND UNIVERSAL VOLTAGE OPERATION AT 120–347V. THIS 2X4 MODEL INCLUDES AN INTEGRATED EMERGENCY BATTERY THAT DELIVERS 90 MINUTE...
- MATERIAL:
- DIE-CAST ALUMINUM
- MOUNTING PROCEDURE:
- CEILING
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMP:
- -17C (+1.4F) TO +45C (+113F)
- ORDER IN MULTIPLES OF:
- 1
- PACK TYPE:
- BOX
- PANEL SIZE:
- 2X4
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- REPLACEABLE LIGHT SOURCE:
- NO
- ROHS COMPLIANT:
- YES
- ROMANCE COPY:
- SATCO NUVO BACKLIT PANELS DELIVER RELIABLE PERFORMANCE WITH THE FLEXIBILITY TO SUIT A WIDE RANGE OF APPLICATIONS. AVAILABLE IN SIX STANDARD AND SIX EMERGENCY MODELS THESE PANELS COME IN 1X4 2X2 AND 2X4 SIZES WITH UNIVERSAL VOLTAGE OPER...
- SAFETY LISTING:
- CULUS - CERTIFIED
- SHORT DESCRIPTION:
- 2X4 LED EM BACKLIT FLAT PANEL
- TEMPERATURE (CCT):
- 3500K/4000K/5000K
- TITLE 20 COMPLIANT:
- YES
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- <20%
- WATTAGE SELECTABLE:
- YES
- WEIGHT LB.:
- 10.69
