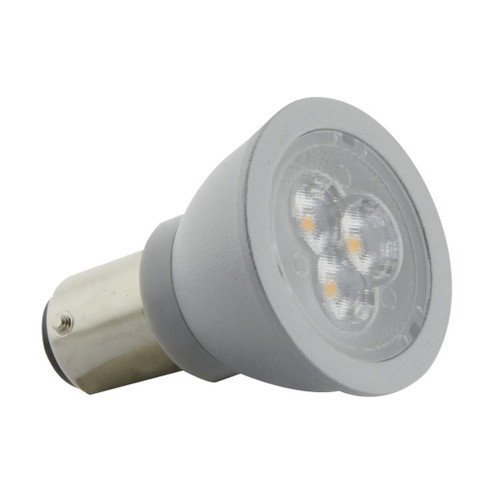

3 Watt; ALR12 LED; 3000K; Double Contact Base; 12 Volt {ADDITIONAL FINISH INFORMATION: ''Gray''}
- BULB HOURS:
- 15000
- BULB KELVIN:
- 3000K
- BULB SHAPE:
- ALR12
- DIAMETER:
- 1.38
- DIMMABLE:
- Non-Dimmable
- HARMONIZED CODES:
- 8539.52.0091
- LENGTH:
- 1.77
- LUMENS:
- 220L
- SHIP CARTON HEIGHT:
- 1.89''
- SHIP CARTON LENGTH:
- 1.47
- SHIP CARTON WIDTH:
- 1.47''
- SHIP WEIGHT:
- 0.07
- VOLTS:
- 12V
- WARRANTY:
- 3 YEAR LIMITED - 10 HR PER DAY
- WEIGHT:
- 0.05
- BEAM SPREAD:
- 31
- BULB ANSI BASE:
- BA15d
- BULB BASE:
- Bayonet Double Contact
- BULB FINISH:
- GRAY
- CARTON CUBIC FEET:
- 0.0024
- CARTONS PER UNIT:
- 1
- CBCP:
- 300
- CEC:
- Exempt - Base Not Regulated
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- COLOR TEMPRATURE:
- WARM WHITE
- CRI:
- 80+
- ENCLOSURE RATING:
- NO
- HID EQUIVALENT:
- 20W
- HOUSING COLOR:
- Silver
- INCANDESCENT EQUIVALENT:
- 20W
- LAMP FILAMENT:
- LED
- LENS:
- YES
- LOCATION RATING:
- Damp
- OPERATING TEMP:
- -25C (-13F) TO +45C (+113F)
- PACK TYPE:
- Box
- PHOTOCELL:
- No
- WATTS:
- 3W
- LAMPS:
- YES
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- WIDTH:
- 1.38
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- NO
- QUANTITY AVAILABLE AT MANUFACTURER:
- 5521
- IMAGE INFO:
- ''''
- CCT SELECTABLE:
- NO
- FCC COMPLIANT:
- YES
- FEATURE 1:
- MOL: 1.77 INCHES MOD: 1.38 INCHES
- FEATURE 2:
- GRAY FINISH
- FEATURE 3:
- MATERIAL: ALUMINUM AND POLYCARBONATE
- FEATURE 4:
- 3000K WARM WHITE LIGHT
- FEATURE 5:
- 220 LUMENS
- FEATURE 6:
- DAMP LOCATION RATED FOR INDOOR USE
- FEATURE 7:
- BAYONET DOUBLE CONTACT BASE
- FEATURE 8:
- RATED FOR 15000 HOURS
- FEATURE 9:
- 3-YEAR LIMITED WARRANTY
- HAS EMERGENCY BATTERY:
- NO
- INDOOR OUTDOOR:
- INDOOR
- IOT ENABLED:
- NO
- LENS FINISH:
- CLEAR
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- SATCO'S S29005 3-WATT ALR12 LED ELEVATOR AND DISPLAY LAMP IS YOUR BEST CHOICE TO REDUCE HEAT BUILD-UP FROM OLDER HALOGEN TECHNOLOGIES WHILE REDUCING ENERGY AND MAINTENANCE COSTS. THE FAMILIAR LOOK AND PERFORMANCE OF THIS LAMP MAKES IT PERF...
- MATERIAL:
- ALUMINUM / POLYCARBONATE (PC)
- OPERATING FREQUENCY:
- 60HZ
- POWER FACTOR:
- >0.5
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SDS SHEET LINK:
- #REF!
- TECHNOLOGY:
- LED
- FINISH:
- GRAY
- BURNING POSITION:
- UNIVERSAL
- ORDER IN MULTIPLES OF:
- 1
- More Info {1}:
- 220 LUMENS
- More Info {2}:
- 3-YEAR LIMITED WARRANTY
- More Info {3}:
- 3000K WARM WHITE LIGHT
- More Info {4}:
- BAYONET DOUBLE CONTACT BASE
- More Info {5}:
- DAMP LOCATION RATED FOR INDOOR USE
- More Info {6}:
- MATERIAL: ALUMINUM AND POLYCARBONATE
- More Info {7}:
- MOL: 1.77 INCHES MOD: 1.38 INCHES
- More Info {8}:
- RATED FOR 15000 HOURS
- DLC APPROVED:
- NO
- WATTAGE SELECTABLE:
- NO
- BAA COMPLIANT:
- NO
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- EFFICACY:
- 73.33 LPW
- ENCLOSED FIXTURE USE:
- NO
- R9 VALUE:
- 12
- ROMANCE COPY:
- SATCO'S 3-WATT ALR12 LED ELEVATOR AND DISPLAY LAMP IS YOUR BEST CHOICE TO REDUCE HEAT BUILD-UP FROM OLDER HALOGEN TECHNOLOGIES WHILE REDUCING ENERGY AND MAINTENANCE COSTS. THE FAMILIAR LOOK AND PERFORMANCE OF THIS LAMP MAKES IT PERFECT FOR...
- SHORT DESCRIPTION:
- 3WLED/GBF/ELEVATOR/12V AC/DC
- STYLE:
- TRANSITIONAL
- TITLE 20 COMPLIANT:
- EXEMPT
- CA PROP-65:
- LEAD
- BULB DIMMABLE:
- NON-DIMMABLE
- EA LENGTH:
- 1.47
- SHAP CARTON WIDTH:
- 1.47''
- DLC CLASSIFICATION:
- SPECIAL APPLICATION
- START TYPE:
- TRANSITIONAL
- TITLE 24 COMPLIANT:
- NO
- JA8 COMPLIANT:
- NO
