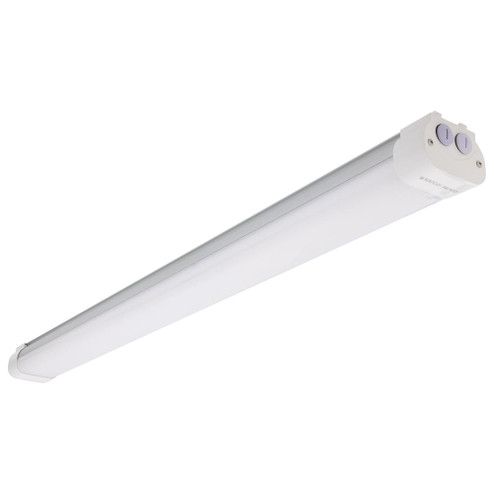

4 Foot; LED Tri-Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming; 120V-347V {ADDITIONAL FINISH INFORMATION: ''White / Gray''}
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- STYLE:
- UTILITY
- BULB HOURS:
- 50000
- BULB KELVIN:
- WARM TO COOL WHITE
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.42.6000
- LENGTH:
- 47.24
- LUMENS:
- 5040L-7669L
- SHIP CARTON HEIGHT:
- 4.33''
- SHIP CARTON LENGTH:
- 49.61
- SHIP CARTON WIDTH:
- 6.89''
- WARRANTY:
- 5 YEAR LIMITED - FIXTURES
- AMPS:
- 0.333-0.115/0.417-0.144/0.500-0.173A
- ANSI BASE:
- INTEGRATED
- BEAM SPREAD:
- 115
- CA PROP-65:
- LEAD
- CARTON CUBIC FEET:
- 0.8565
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- CRI:
- 80
- DIMMABLE FUNCTION:
- 0-10V DIMMING
- FCC COMPLIANT:
- YES
- FIXTURE SHAPE:
- LINEAR
- FLICKER FREE:
- NO
- HAS DRIVER:
- YES
- HID EQUIV:
- 125W-150W
- IMPACT RATING (IK):
- IK08
- INCANDESCENT EQUIVALENT:
- 300W-400W
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- IOT ENABLED:
- NO
- IP RATING:
- IP65
- LENS MATERIAL:
- POLYCARBONATE (PC)
- MATERIAL:
- PLASTIC
- NSF APPROVED:
- YES
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMPRATURE:
- -40C (-40F) TO +45C (+113F)
- PACK TYPE:
- BOX
- POWER FACTOR:
- >0.96
- QUANTITY IN PACK:
- 1
- REPLACEABLE LIGHT SOURCE:
- NO
- ROHS COMPLIANT:
- YES
- SAFETY LISTING:
- CETLUS - LISTED
- SDS CLASS:
- LED_FIXTURE
- SDS SHEET LINK:
- #REF!
- TEMPERATURE (CCT):
- 3000K/4000K/5000K
- WATTAGE SELECTABLE:
- YES
- WEIGHT LB.:
- 4.41
- QUANTITY AVAILABLE AT MANUFACTURER:
- 63
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 3.11
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 3.98
- WIDTH RANGE:
- 0-15''
- FINISH:
- COMBINATION FINISHES
- IMAGE INFO:
- ''''
- DLC CLASSIFICATION:
- STANDARD STANDARD
- DLC PRIMARY USE:
- DIRECT LINEAR AMBIENT LUMINAIRES LOW-BAY LUMINAIRES FOR COMMERCIAL AND INDUSTRIAL BUILDINGS
- FEATURE 1:
- 120-347 VOLTAGE - FOR USE IN CANADA
- FEATURE 2:
- HEAT AND TAMPER RESISTANT WATER-RESISTANT AND DUST-PROOF. CAN BE USED IN FOOD-PROCESSING FACILITIES
- FEATURE 3:
- IP65 AND IK08 RATED
- FEATURE 4:
- CCT AND WATTAGE SELECTABLE
- FEATURE 5:
- 2KV BUILT-IN SURGE PROTECTION
- FEATURE 6:
- NON-CORROSIVE (PC) POLYCARBONATE HOUSING
- FEATURE 7:
- 0-10V DIMMABLE
- LONG DESCRIPTION:
- SATCO
- MOUNTING PROCEDURE:
- CEILING/WALL
- FEATURE 10:
- HIGH LUMENS PER WATT RATIO
- FEATURE 8:
- FCC AND ROHS COMPLIANT
- FEATURE 9:
- 5 YEAR WARRANTY
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM TO COOL WHITE
- EACH HEIGHT:
- 4.33''
- EACH LENGTH:
- 49.61
- EACH WIDTH:
- 6.89''
- TARIFF CODE:
- 9405.42.6000
- BAA COMPLIANT:
- NO
- BEAM ANGLE:
- 115
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.8565
- EACH QUANTITY:
- 1
- EFFICACY:
- 126.00/127.09/127.82 LPW
- JA8 COMPLIANT:
- NO
- RATED FOR VAPOR TIGHT FIXTURE:
- YES
- ROMANCE COPY:
- SATCO
- SHORT DESCRIPTION:
- 4' LED TRI-PROOF LINEAR
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 16.20%
