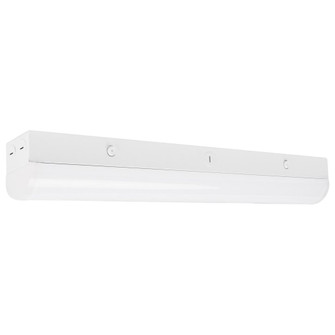

LED 4 ft; Linear Strip Light; 30W/40W/50W; White Finish; CCT Selectable; 100-277V; Integrated EM & Sensor {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- YES
- STYLE:
- UTILITY
- BULB HOURS:
- 50000
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.11.6010
- LENGTH:
- 48
- LUMENS:
- 3900L-6750L
- SHIP CARTON HEIGHT:
- 5.31''
- SHIP CARTON LENGTH:
- 50.08
- SHIP CARTON WIDTH:
- 5.2''
- SHIP WEIGHT:
- 5.73
- WARRANTY:
- 5 YEAR LIMITED - FIXTURES
- BEAM ANGLE:
- 120
- CARTON CUBIC FEET:
- 0.8002
- CARTONS PER UNIT:
- 1
- CRI:
- 80+
- DIMMABLE FUNCTION:
- 0-10V DIMMING
- OPERATING TEMP:
- -20C (-4F) TO +60C (+140F)
- PHOTOCELL:
- HAS PHOTOCELL
- QUANTITY AVAILABLE AT MANUFACTURER:
- 44
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 3.27
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 2.95
- WIDTH RANGE:
- 0-15''
- ADDITIONAL INFO:
- EM MODE 4W/90 MIN RUN TIME. OTHER DLC LISTINGS: S-UZ1QD6 STANDARD DIRECT LINEAR AMBIENT LUMINAIRES.
- LOCATION RATING:
- DAMP
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 2KV
- COLOR TEMPRATURE:
- NEUTRAL WHITE TO DAYLIGHT
- B_U_G_RATING:
- B2-U4-G2
- CCT SELECTABLE:
- YES
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- CONNECTION:
- DIRECT WIRED
- DLC APPROVED:
- YES
- DLC CLASSIFICATION:
- PREMIUM STANDARD STANDARD
- DLC ID:
- S-XSNARP S-UZ1QD6
- DLC PRIMARY USE:
- STAIRWELL AND PASSAGEWAY LUMINAIRES DIRECT LINEAR AMBIENT LUMINAIRES LOW-BAY LUMINAIRES FOR COMMERCIAL AND INDUSTRIAL BUILDINGS
- FCC COMPLIANT:
- YES
- FEATURE 1:
- FLICKER FREE DRIVER
- FEATURE 2:
- CCT SELECTABLE (3500K/4000K/5000K)
- FEATURE 3:
- QUICK RELEASE FEATURE FOR EASY OPENING AND INSTALLATION
- FEATURE 4:
- INTEGRATED EM (8W/90 MINUTE RUN TIME)
- FEATURE 5:
- INTEGRATED MICROWAVE SENSOR WITH BI-LEVEL DIMMING AND ON/OFF CAPABILITIES
- FEATURE 6:
- 5 YEAR LIMITED WARRANTY
- FEATURE 7:
- MULTIPLE MOUNTING OPTIONS
- FEATURE 8:
- 2KV SURGE PROTECTION
- FINISH FAMILY:
- WHITE
- FIXTURE SHAPE:
- RECTANGLE
- FLICKER FREE:
- YES
- FLR EQUIV:
- 128W
- HAS DRIVER:
- YES
- HAS EMERGENCY BATTERY:
- YES
- HID EQUIV:
- 100W-150W
- IOT ENABLED:
- NO
- IP RATING:
- IP20
- LENS FINISH:
- FROST
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- SATCO
- MATERIAL:
- STEEL
- MOUNTING PROCEDURE:
- CEILING
- NSF APPROVED:
- NO
- OPERATING FREQUENCY:
- 50/60HZ
- PACK TYPE:
- BOX
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 3500K/4000K/5000K
- WATTAGE SELECTABLE:
- YES
- WEIGHT LB.:
- 4.41
- AMPS:
- 0.250-0.108/0.333-0.144/0.417-0.181A
- SDS SHEET LINK:
- #REF!
- BULB KELVIN:
- NEUTRAL WHITE TO DAYLIGHT
- BEAM SPREAD:
- 120
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- LAWFUL FOR SALE
- OPERATING TEMPRATURE:
- -20C (-4F) TO +60C (+140F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CULUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- IMAGE INFO:
- ''''
- MOUNTING DIAMETER:
- 4.75
- More Info {1}:
- 2KV SURGE PROTECTION
- More Info {2}:
- 5 YEAR LIMITED WARRANTY
- More Info {3}:
- CCT SELECTABLE (3500K/4000K/5000K)
- More Info {4}:
- FLICKER FREE DRIVER
- More Info {5}:
- INTEGRATED EM (8W/90 MINUTE RUN TIME)
- More Info {6}:
- INTEGRATED MICROWAVE SENSOR WITH BI-LEVEL DIMMING AND ON/OFF CAPABILITIES
- More Info {7}:
- MULTIPLE MOUNTING OPTIONS
- More Info {8}:
- QUICK RELEASE FEATURE FOR EASY OPENING AND INSTALLATION
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- ANSI BASE:
- INTEGRATED
- INCANDESCENT EQUIVALENT:
- 125W
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- NEUTRAL WHITE TO DAYLIGHT
- EACH HEIGHT:
- 5.31''
- EACH LENGTH:
- 50.08
- EACH WIDTH:
- 5.2''
- TARIFF CODE:
- 9405.11.6010
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EACH CUBE:
- 0.8002
- EACH QUANTITY:
- 1
- EFFICACY:
- 130.00/133.13/135.00 LPW
- JA8 COMPLIANT:
- NO
- ROMANCE COPY:
- SATCO
- SHORT DESCRIPTION:
- 4' LINEAR STRIP W/ EM & SENSOR
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 12.10%
- INDOOR OUTDOOR:
- INDOOR
- ORDER IN MULTIPLES OF:
- 1
