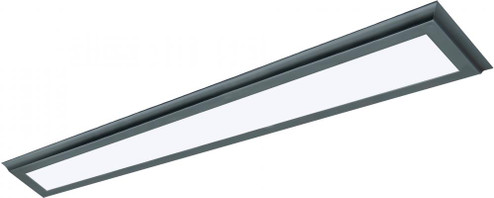

40W; 7 in.; x 49 in.; Surface Mount LED Fixture; 3000K; Bronze Finish; 120/277V {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- STYLE:
- Utility
- BULB DIMMABLE:
- 120V only
- BULB HOURS:
- 50000
- BULB SHAPE:
- Integrated LED
- BULB TYPE:
- LED
- HARMONIZED CODES:
- 9405.11.8020
- LENGTH:
- 49
- LUMENS:
- 2800L
- SHIP CARTON HEIGHT:
- 2.24''
- SHIP CARTON LENGTH:
- 50.39
- SHIP CARTON WIDTH:
- 8.58''
- SHIP WEIGHT:
- 6.63
- VOLTAGE:
- 277V
- WARRANTY:
- 5 Year Limited - Fixtures
- CARTON CUBIC FEET:
- 0.5604
- CARTONS PER UNIT:
- 1
- CEC:
- CALIFORNIA T24 2016 - 2022 JA8 LISTED
- COLOR TEMPRATURE:
- Warm White
- CRI:
- 90
- LOCATION RATING:
- Damp
- OPERATING TEMP:
- -17C (+1.4F) TO +45C (+113F)
- PACK TYPE:
- Box
- HEIGHT:
- 1.00
- WIDTH:
- 7.00
- FINISH:
- BRONZE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- BULBS:
- 40W WATT INTEGRATED LED:40W WATT INTEGRATED LED:1
- STANDARD STYLE:
- TRADITIONAL
- DIMMABLE:
- Yes-Dimmable
- DIMMABLE FUNCTION:
- 120V ONLY
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 149
- ANSI BASE:
- INTEGRATED
- CLOSET RATED:
- YES
- CONNECTION:
- DIRECT WIRED
- DIMMING TYPE:
- REVERSE PHASE OR PHASE SELECTABLE
- ES UNIQUE ID:
- ESID-2291408
- FCC COMPLIANT:
- YES
- FEATURE 1:
- LENGTH: 49.00 INCHES WIDTH: 7.00 INCHES HEIGHT: 1.00 INCH''
- FEATURE 2:
- BRONZE FINISH
- FEATURE 3:
- 5 YEAR LIMITED WARRANTY
- FEATURE 4:
- 2800 LUMENS
- FEATURE 5:
- DIMMABLE
- FEATURE 6:
- 3000K WARM WHITE LIGHT
- FEATURE 7:
- SUPERIOR 90 CRI LIGHT QUALITY
- FEATURE 8:
- RATED FOR 50000 HOURS
- FEATURE 9:
- FCC AND ROHS COMPLIANT
- FINISH FAMILY:
- BRONZE
- FIXTURE SHAPE:
- LINEAR
- INDOOR OUTDOOR:
- INDOOR
- LONG DESCRIPTION:
- SATCO'S 62-1187 40 WATT LINEAR LED SURFACE MOUNT FIXTURE IS A SLEEK LIGHTING SOLUTION FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS. ILLUMINATE KITCHENS BATHROOMS HALLWAYS OFFICES AND RETAIL SPACES WITH THIS DIMMABLE EASY TO INSTALL L...
- MATERIAL:
- ALUMINUM
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- OPERATING FREQUENCY:
- 50/60HZ
- POWER FACTOR:
- 0.8
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 3000K
- WEIGHT LB.:
- 6.3
- LAMPS:
- YES
- AMPS:
- 0.333/0.144A
- SDS SHEET LINK:
- #REF!
- BULB KELVIN:
- WARM WHITE
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- NEC COMPLIANCE:
- CLOTHES CLOSET CERTIFIED - REG: 410.16 (A)(3) AND 410.16 (C)(5)
- OPERATING TEMPRATURE:
- -17C (+1.4F) TO +45C (+113F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CETLUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CCT SELECTABLE:
- NO
- WATTAGE SELECTABLE:
- NO
- INCANDESCENT EQUIVALENT:
- 175W
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM WHITE
- EACH HEIGHT:
- 2.24''
- EACH LENGTH:
- 50.39
- EACH WIDTH:
- 8.58''
- TARIFF CODE:
- 9405.11.8020
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EACH CUBE:
- 0.5604
- EACH QUANTITY:
- 1
- EFFICACY:
- 70.00 LPW
- JA8 COMPLIANT:
- YES
- ROMANCE COPY:
- SATCO'S 40 WATT LINEAR LED SURFACE MOUNT FIXTURE IS A SLEEK LIGHTING SOLUTION FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS. ILLUMINATE KITCHENS BATHROOMS HALLWAYS OFFICES AND RETAIL SPACES WITH THIS DIMMABLE EASY TO INSTALL LED FIXTU...
- SHORT DESCRIPTION:
- 40W/LED/7''X49''/FLUSH/3K/BRZ
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- YES
