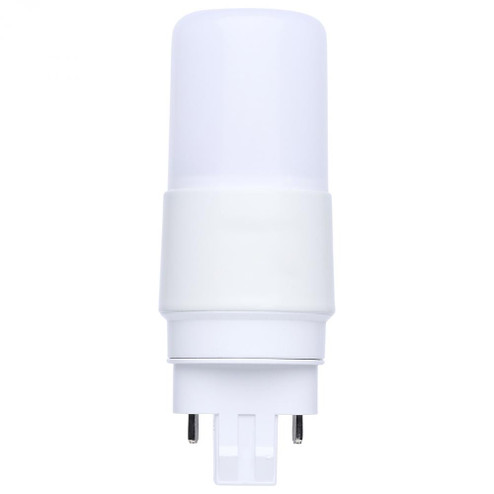

5 Watt; PL LED; GX23 Base; Frost Finish; Type A/B Dual Ballast; 3000K; 120-277 Range Voltage {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- NO
- VOLTS:
- 120V-277V
- BULB DIMMABLE:
- NON-DIMMABLE
- BULB HOURS:
- 50000
- BULB KELVIN:
- 3000K
- BULB SHAPE:
- PL
- DIAMETER:
- 1.52
- EA LENGTH:
- 1.77
- HARMONIZED CODES:
- 8539.52.0091
- LENGTH:
- 4.09
- LUMENS:
- 610L
- SHAP CARTON WIDTH:
- 1.77''
- SHIP CARTON HEIGHT:
- 4.21''
- SHIP WEIGHT:
- 0.14
- WARRANTY:
- 5-YEARS
- WEIGHT:
- 0.11
- BAA COMPLIANT:
- NO
- BALLAST BYPASS DIRECT:
- DUAL
- BEAM SPREAD:
- 300
- BULB ANSI BASE:
- GX23
- BULB BASE:
- GX23
- BURNING POSITION:
- UNIVERSAL
- CARTON CUBIC FEET:
- 0.0076
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- NO
- CEC:
- EXEMPT - BASE NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- COLOR TEMPRATURE:
- SOFT WHITE
- CRI:
- 80+
- DLC APPROVED:
- NO
- EFFICACY:
- 122.00 LPW
- ENCLOSED FIXTURE USE:
- YES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- TYPE A+B DUAL MODE
- FEATURE 2:
- COMPACT LED DESIGN
- FEATURE 3:
- 120-277V RANGE VOLTAGE
- FEATURE 4:
- GX23 BASE
- FEATURE 5:
- DAMP LOCATION RATED
- FEATURE 6:
- 50000 HOUR FUNCTIONAL LIFE
- FEATURE 7:
- 5 YEAR WARRANTY
- FLOURESCENT EQUIVALENT:
- 13W
- HAS CAMERA:
- NO
- HAS EMERGENCY BATTERY:
- NO
- HOUSING COLOR:
- WHITE
- INDOOR OUTDOOR:
- INDOOR
- IOT ENABLED:
- NO
- LAMP BALLAST TYPE A/B/C:
- TYPE A/B
- LAMP FILAMENT:
- LED
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LOCATION RATING:
- DAMP
- LONG DESCRIPTION:
- SATCO NUVO'S S21421 CFL REPLACEMENT LAMP DELIVERS RELIABLE ENERGY-EFFICIENT PERFORMANCE IN A COMPACT AND VERSATILE PL SHAPE. THIS 5-WATT MODEL IS DESIGNED TO REPLACE 13-WATT CFLS PROVIDING A 3000K WARM WHITE LIGHT WITH A GX23 BASE. A+B D...
- MATERIAL:
- ALUMINUM
- MINIMUM COMPARTMENT SIZE:
- LENGTH 6.10 IN. WIDTH 6.10 IN. HEIGHT: 7.87 IN.''
- NSF APPROVED:
- YES
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMP:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- BOX
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- ROMANCE COPY:
- SATCO NUVO'S CFL REPLACEMENT LAMPS DELIVER RELIABLE ENERGY-EFFICIENT PERFORMANCE IN A COMPACT AND VERSATILE PL SHAPE. THIS COMPREHENSIVE LINE OFFERS 5W OR 7W OPTIONS TO REPLACE 13W 18W OR 26W CFLS WITH DEDICATED COLOR TEMPERATURES FROM...
- SDS CLASS:
- LED_LAMP
- SHORT DESCRIPTION:
- 5CFL/L/830/GX23/AB/FR/U
- SURGE PROTECTION:
- BUILT-IN-SURGE PROTECTION - 0.5KV
- TECHNOLOGY:
- LED
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- NO
- WATTAGE SELECTABLE:
- NO
- WATTS:
- 5W
- LAMPS:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 1213
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- WIDTH:
- 1.52
- WIDTH RANGE:
- 0-15''
- IMAGE INFO:
- ''S21421.JPG:DEFAULT''
- BALLASTING REQUIREMENTS:
- BALLAST REQUIRED (TYPE A) OR BALLAST BYPASS (TYPE B)
