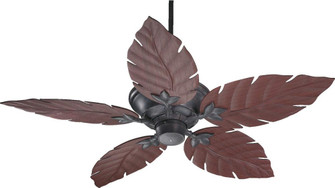

52'' 5BL WINDSOR FAN - TS
- OPTION:
- DRY RATED
- STYLE:
- TRADITIONAL
- FAMILY:
- Windsor
- AIR FLOW CFM:
- 6080
- AIR FLOW EFFICIENCY:
- 89
- AMPERAGE:
- .61/.42/.22
- BLADE FINISH:
- Rosewood
- BLADE FINISH1:
- Walnut
- BLADE PITCH:
- 14
- BLADE SPAN:
- 52
- BLADES INCLUDED:
- 5
- BULB TYPE:
- A
- CHAIN INCLUDED:
- Slide
- DOWN ROD INCLUDED:
- 4
- DOWN ROD INCLUDED1:
- 6
- ELECTRICITY USED:
- 83/34/9
- HEIGHT:
- 11.25
- MOTOR RPM:
- 169/110/54
- MOTOR SIZE:
- 188x15
- SHIP CARTON HEIGHT:
- 11.5''
- SHIP CARTON LENGTH:
- 20
- SHIP CARTON WIDTH:
- 15''
- SHIP WEIGHT:
- 25.15
- SWITCH/CONTROL INCLUDED:
- Hi/Med/Low/Off
- WARRANTY:
- Limited Lifetime
- WEIGHT:
- 25.15
- CARB COMPLIANT:
- No
- CARB REQUIRED:
- Yes
- CARTONS PER UNIT:
- 1
- CEILING TO LOWER EDGE OF BLADE:
- 13.78
- DARK SKY:
- No
- DRY RATED:
- Yes
- ENERGY STAR:
- No
- FAN HOUSING WIDTH:
- 12.6''
- FDA REQUIRED:
- No
- FREIGHT ONLY:
- No
- FWS REQUIRED:
- No
- LACEY REQUIRED:
- No
- MOTOR LEAD WIRE:
- 80
- MOTOR POLES:
- 16
- MOTOR PULL SWITCH TYPE:
- Hi/Med/Low/Off
- MOTOR REVERSE SWITCH TYPE:
- Slide
- OVERALL FAN HEIGHT:
- 15.83''
- PHASE OUT:
- No
- SAFETY RATING:
- UL
- HEIGHT:
- 0.00
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 52.00
- WIDTH RANGE:
- 50-55''
- CEILING:
- YES
- FINISH:
- BRONZE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- STANDARD STYLE:
- TRANSITIONAL
- AVAILABLE FOR PURCHASE:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 128
- LENGTH:
- 20
- ENERGY SAVING:
- YES
- ES LAMP INCLUDED:
- NO
- NOT UL APPROVED:
- NO
- LAMPS:
- YES
- HEIGHT TO CENTER OF OUTLET:
- 13.78''
- ARM PITCH:
- 14
- BLADE SIDE A COLOR:
- ROSEWOOD
- BLADE SIDE B COLOR:
- WALNUT
- DOWNROD LENGTH 1:
- 4
- DOWNROD LENGTH 2:
- 6
- FACILITY:
- QRW
- MASTER PACK:
- 1
- NUMBER OF BLADES:
- 5
- SERIES:
- WINDSOR
- SWEEP:
- 52
- BULB INCLUDED:
- NO
- LOCATION RATING:
- DRY RATED
