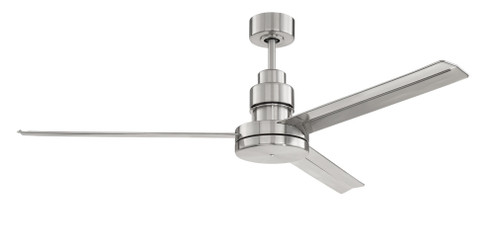

54'' Ceiling Fan with Blades A picture of modern design, the functional minimalism of the Mondo 54'' ceiling fan is also a product of advanced engineering. The unique aileron design of the three long, graceful blades move air with remarkable efficiency. {ADDITIONAL FINISH INFORMATION: ''Brushed Polished Nickel''}
- OPTION:
- WET RATED
- STYLE:
- Contemporary
- FAMILY:
- MONDO 54
- AIR FLOW CFM:
- 6000
- AIR FLOW EFFICIENCY:
- 164
- AMPERAGE:
- 0.47
- BLADE FINISH:
- Brushed Nickel
- BLADE PITCH:
- 13
- BLADE SIZE:
- 25
- BLADE SPAN:
- 54
- BLADE TYPE:
- Fits Only
- BLADES INCLUDED:
- 3
- CANOPY:
- 2.2 H X 5.12 W
- DOWN ROD INCLUDED:
- 1
- INTRODUCTION DATE:
- 01/01/2014
- LIGHT KIT INCLUDED:
- NO
- MATERIAL:
- ALUMINUM STEEL SILICON COPPER
- MOTOR FAN SPEED:
- 6
- MOTOR RPM:
- 191
- MOTOR SIZE:
- 125 X 30
- MOTOR TYPE:
- DC
- REMOTE CONTROL INCLUDED:
- IDC Wall Control (2) and Remote Clamshell (Included)
- SOLD IN PACK OF:
- 1
- SPECIAL FEATURES:
- 54'' Blades in Brushed Nickel (Included)
- SPECIAL FEATURES1:
- 6'' Downrod (Included)
- SPECIAL FEATURES2:
- Dual Mount (Flat or Angled Ceiling)
- SPECIAL FEATURES3:
- Energy Saving 6Speed Reversible DC Motor
- SPECIAL FEATURES4:
- Limited Lifetime Warranty
- SPECIAL FEATURES5:
- REMOTE DIMMING
- SPECIAL FEATURES6:
- SUITABLE FOR DAMP LOCATIONS
- SPECIAL FEATURES7:
- Suitable for Damp Locations
- SWITCH/CONTROL INCLUDED:
- IDC Wall Control (2) and Remote Clamshell (Included)
- VOLTAGE:
- 120 V/60 HZ
- WARRANTY:
- LIMITED LIFETIME WARRANTY
- WIRE INCLUDED:
- 80
- AIRFLOWEFFICIENCY HIGH:
- 192.69
- AMPS HIGH MAX:
- 0.43
- BLADE COUNT:
- 3
- BLADE FEATURES:
- Blades Included
- BLADE LENGTH:
- 25
- BLADE MATERIAL:
- Aluminum
- BLADE SWEEP OPTIONS:
- 54
- BLADE TIP:
- Picture Frame
- BLADE TO CEILING HEIGHT:
- 12.5''
- BLADE WIDTH:
- 3.78''
- CFM HIGH:
- 6000
- CFM HIGH MAX:
- 6031.22
- CFM LOW:
- 1429
- CONTROL METHOD:
- Remote
- CONTROL STATUS:
- Included
- CONTROL TYPE:
- Wall (2) and Clamshell
- CONTROL TYPES INCLUDED:
- Remote Control Wall Control
- DOWNROD DIAMETER:
- 0.5
- DOWNROD QUANTITY:
- 1
- ELECTRICITYUSED HIGH:
- 31.3
- ELECTRICITYUSED LOW:
- 3.14
- ENERGY GUIDE CFM:
- 3857
- ENERGY GUIDE CFM WATTS:
- 185
- ENERGY GUIDE EST YEARLY ENERGY:
- 6
- ENERGY GUIDE WATTS:
- 21
- ENERGY STAR:
- No
- FINISH GROUP:
- Nickel
- GLASS/SHADE INCLUDED:
- No
- HEIGHT W/O LIGHT KIT:
- 14.4''
- HOUSING HEIGHT:
- 9.26''
- HOUSING SIZE:
- 4.92
- LEADWIRE LENGTH:
- 80
- LIGHT KIT ADAPTABLE:
- Yes
- LIGHT KIT OPTIONS:
- Bowl Light Kits
- MOTOR DIAMETER:
- 125
- MOTOR HEIGHT:
- 30''
- MOTOR MATERIAL:
- Silicon Steel
- MOTORRPM 1:
- 195
- MOTORRPM 2:
- 165
- MOTORRPM 3:
- 135
- MOTORRPM LOW:
- 51
- MOUNTING METHOD:
- Dual Mount (Flat or Angled Ceiling)
- NUMBER OF DOWNRODS:
- 1
- PROP 65:
- Yes
- REVERSE LOCATION:
- Transmitter
- REVERSE METHOD:
- Remote
- REVERSIBLE BLADES:
- No
- ROOM SIZE:
- Large rooms (up to 18 X 20)
- SAFETY RATING:
- CETLUS APPROVED
- SLOPE MOUNT:
- Yes
- UP DOWN CAPABILITY:
- No
- WATTS:
- 33.1
- HEIGHT:
- 14.40
- WIDTH:
- 54.00
- WIDTH RANGE:
- 50-55''
- CEILING:
- YES
- FINISH:
- NICKEL
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Contemporary
- AVAILABLE FOR PURCHASE:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- IMAGE INFO:
- ''''
- SHIP CARTON HEIGHT:
- 10.55''
- SHIP CARTON LENGTH:
- 28.19
- SHIP CARTON WIDTH:
- 10.08''
- SHIP WEIGHT:
- 14.4
- BULB INCLUDED:
- NO
- CANOPY HEIGHT:
- 2.2''
- CANOPY WIDTH:
- 5.12''
- CETLUS APPROVED:
- YES
- DOWNROD 1 LENGTH:
- 6
- IP CUBIC:
- 1.73
- MOUNTING LOCATION:
- INDOOR
- NUMBER OF BLADES:
- 3
- REVERSIBLE MOTOR:
- YES
- CFM LOW MAX:
- 1429.8
- COLLECTION - FAMILY:
- MONDO 54''
- BULB DIMMABLE:
- N/A
- BULB SHAPE:
- N/A
- KELVIN:
- N/A
- More Info {1}:
- 6 INCH DOWNROD INCLUDED
- More Info {2}:
- DUAL MOUNT (FLAT OR ANGLED CEILING UP TO 23°)
- COLOR RENDERING INDEX (CRI):
- N/A
- DOWNROD 1 LENGTH (IN):
- 6
- DOWNROD 1 QTY:
- 1
- DOWNROD 2 LENGTH (IN):
- 0
- DOWNROD 2 QTY:
- 0
- LEADWIRE LENGTH (IN):
- 80
- PRODUCT TYPE:
- CEILING FAN (BLADES INCLUDED)
- More Info {3}:
- ENERGY GUIDE 3857 CFM HIGH SPEED 6000 CFM
- More Info {4}:
- ENERGY SAVING 6-SPEED REVERSIBLE DC MOTOR
- More Info {5}:
- IDC REMOTE AND WALL CONTROLS INCLUDED
- More Info {6}:
- LIGHT KIT OPTIONAL (SOLD SEPARATELY)
- More Info {7}:
- LIMITED LIFETIME WARRANTY
- More Info {8}:
- MONDO 54 ALUMINUM BLADES INCLUDED
- More Info {9}:
- SOPHISTICATED DC MOTOR REQUIRES AUTOMATIC 7-MINUTE CALIBRATION PERIOD UPON INSTALLATION. THE REMOTE AND WALL CONTROLS ARE INOPERABLE DURING THAT TIME AFTER WHICH THE FAN REMOTE CONTROL AND WALL CONTROL (IF APPLICABLE) WITH BE FULLY OPERA...
- ARM PITCH:
- 13
- INDOOR:
- YES
- CARTON CUBIC FEET:
- 1.73
- LOCATION RATING:
- WET RATED
- MOUNT TYPE:
- DUAL (FLAT OR ANGLED CEILING)
- WEIGHT:
- 11.24
- DARK SKY:
- NO
- PACKAGE QUANTITY:
- 1
- WIFI CONTROL INCLUDED:
- NO
- DOWNROD 1 QUANTITY:
- 1
- DOWNROD 1 SIZE:
- 6
- WET RATED:
- YES
- DOWNROD LENGTH 1:
- 6
