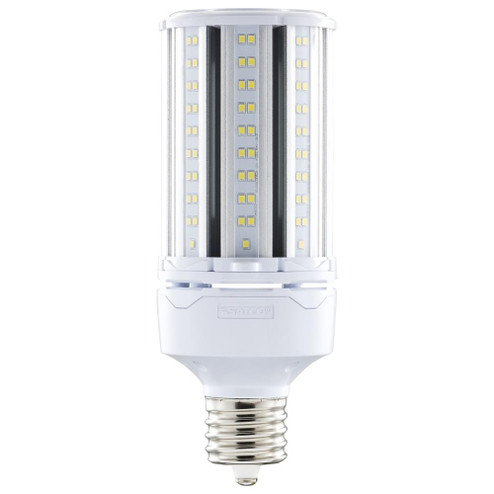

54 Watt LED HID Replacement; 5000K; Extended Mogul base; Type B Ballast Bypass; Economy Hi-Pro {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- NO
- BULB HOURS:
- 35000
- BULB KELVIN:
- 5000K
- BULB SHAPE:
- CORNCOB
- DIAMETER:
- 3.35
- DIMMABLE:
- NON-DIMMABLE
- HARMONIZED CODES:
- 8539.52.0091
- LENGTH:
- 8.779999999999999
- LUMENS:
- 7452L
- SHIP CARTON HEIGHT:
- 9.76''
- SHIP CARTON LENGTH:
- 3.94
- SHIP CARTON WIDTH:
- 3.94''
- SHIP WEIGHT:
- 1.97
- VOLTS:
- 100V-277V
- WARRANTY:
- 3 YEAR LIMITED - HI-PRO
- WEIGHT:
- 1.9
- BEAM SPREAD:
- 300
- BULB ANSI BASE:
- EX39
- BULB BASE:
- MOGUL EXTENDED
- BURNING POSITION:
- UNIVERSAL
- CARTON CUBIC FEET:
- 0.0877
- CARTONS PER UNIT:
- 1
- COLOR TEMPRATURE:
- NATURAL LIGHT
- CRI:
- 80
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- HID EQUIVALENT:
- 250W
- HOUSING COLOR:
- WHITE
- IP RATING:
- IP65
- LAMP FILAMENT:
- LED
- LOCATION RATING:
- DAMP
- OPERATING TEMP:
- -30C (-22F) TO +60C (+140F)
- PACK TYPE:
- BOX
- PHOTOCELL:
- NO
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 3KV
- WATTS:
- 54W
- LAMPS:
- YES
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- WIDTH:
- 3.35
- WIDTH RANGE:
- 0-15''
- CEC:
- EXEMPT - BASE NOT REGULATED
- QUANTITY AVAILABLE AT MANUFACTURER:
- 9529
- IMAGE INFO:
- ''''
- BALLAST BYPASS DIRECT:
- BALLAST BYPASS
- BALLASTING REQUIREMENTS:
- BALLAST BYPASS
- CCT SELECTABLE:
- NO
- ENCLOSURE RATING1:
- YES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- HIGH LUMEN PER WATT RATIO
- FEATURE 2:
- SUPERIOR LED LIGHT OUTPUT
- FEATURE 3:
- RATED FOR USE IN ENCLOSED FIXTURES
- FEATURE 4:
- ADVANCED THERMAL MANAGEMENT
- FEATURE 5:
- SUITABLE FOR USE IN DAMP LOCATIONS
- FEATURE 6:
- UP TO 35000 HOURS OF USE
- FEATURE 7:
- 3KV BUILT-IN SURGE PROTECTION
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- IOT ENABLED:
- NO
- LAMP BALLAST TYPE A/B/C:
- TYPE B
- LENS FINISH:
- CLEAR
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- SATCO'S S49394 54-WATT HI-PRO LED LAMP IS AN ENERGY EFFICIENT LIGHTING SOLUTION FOR LARGE SCALE LIGHTING APPLICATIONS. PERFECT FOR GYMNASIUMS FACTORY FLOORS HEALTH CLUBS AND WAREHOUSES THIS LAMP IS DESIGNED TO DELIVER CLEAN EFFICIENT ...
- MATERIAL:
- ALUMINUM / POLYCARBONATE (PC)
- MINIMUM COMPARTMENT SIZE:
- LENGTH: 8 IN. WIDTH: 8 IN. HEIGHT: 15.75 IN.''
- OPERATING FREQUENCY:
- 50/60HZ
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- TECHNOLOGY:
- LED
- STANDARD STYLE:
- TRADITIONAL
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- More Info {1}:
- 3KV BUILT-IN SURGE PROTECTION
- More Info {2}:
- ADVANCED THERMAL MANAGEMENT
- More Info {3}:
- HIGH LUMEN PER WATT RATIO
- More Info {4}:
- RATED FOR USE IN ENCLOSED FIXTURES
- More Info {5}:
- SUITABLE FOR USE IN DAMP LOCATIONS
- More Info {6}:
- SUPERIOR LED LIGHT OUTPUT
- More Info {7}:
- UP TO 35000 HOURS OF USE
- DLC APPROVED:
- NO
- WATTAGE SELECTABLE:
- NO
- BAA COMPLIANT:
- NO
- INCANDESCENT EQUIVALENT:
- 200W
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- SDS SHEET LINK:
- #REF!
- EFFICACY:
- 138.00 LPW
- ENCLOSED FIXTURE USE:
- YES
- R9 VALUE:
- 12
- ROMANCE COPY:
- SATCO'S 54-WATT HI-PRO LED LAMP IS AN ENERGY EFFICIENT LIGHTING SOLUTION FOR LARGE SCALE LIGHTING APPLICATIONS. PERFECT FOR GYMNASIUMS FACTORY FLOORS HEALTH CLUBS AND WAREHOUSES THIS LAMP IS DESIGNED TO DELIVER CLEAN EFFICIENT LED LIG...
- SHORT DESCRIPTION:
- 54W/LED/HP/850/100-277V/EX39
- STYLE:
- CONTEMPORARY
- TITLE 20 COMPLIANT:
- NO
- CA PROP-65:
- LEAD
- BULB DIMMABLE:
- NON-DIMMABLE
- EA LENGTH:
- 3.94
- SHAP CARTON WIDTH:
- 3.94''
- INSTALLATION NOTES:
- NOT FOR USE IN VAPOR TIGHT FIXTURES.
- TITLE 24 COMPLIANT:
- NO
- JA8 COMPLIANT:
- NO
- DLC CLASSIFICATION:
- CONTRACTOR SERIES
- START TYPE:
- CONTEMPORARY
