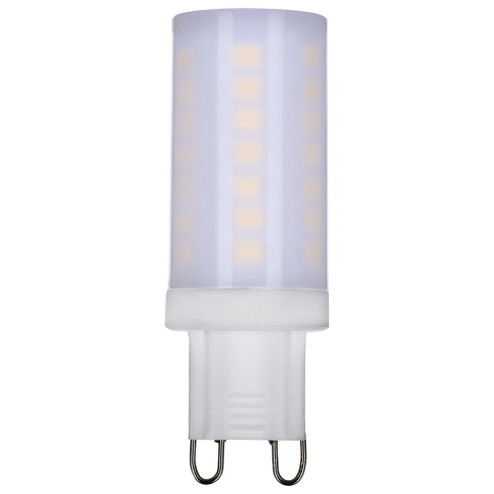

5 Watt; JCD LED; Frost; 3000K; G9 Base; 120 Volt {ADDITIONAL FINISH INFORMATION: ''Frost''}
- AVAILABLE FOR PURCHASE:
- NO
- BULB HOURS:
- 25000
- BULB KELVIN:
- 3000K
- BULB SHAPE:
- T4
- DIAMETER:
- 0.75
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 8539.52.0091
- LENGTH:
- 2.13
- LUMENS:
- 500L
- SHIP CARTON HEIGHT:
- 2.95''
- SHIP CARTON LENGTH:
- 1.57
- SHIP CARTON WIDTH:
- 1.57''
- SHIP WEIGHT:
- 0.06
- VOLTS:
- 120V
- WARRANTY:
- 3 YEAR LIMITED - MINI LED PIN BASE
- WEIGHT:
- 0.06
- BEAM SPREAD:
- 300
- BULB ANSI BASE:
- G9
- BULB BASE:
- G9 DOUBLE LOOP
- BULB FINISH:
- FROST
- CANDLE POWER:
- 45
- CARTON CUBIC FEET:
- 0.0042
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- NO
- CEC:
- EXEMPT - BASE NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- COLOR TEMPRATURE:
- SOFT WHITE
- CRI:
- 80
- DIMMING TYPE:
- FORWARD PHASE OR REVERSE PHASE OR PHASE SELECTABLE OR TRIAC
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- ENCLOSURE RATING1:
- YES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- 300 DEGREE OMNI-DIRECTIONAL LIGHT
- FEATURE 2:
- G9 BASE FEATURES 500 LUMENS
- FEATURE 3:
- 3000K CCT
- FEATURE 4:
- DAMP LOCATION RATED
- FEATURE 5:
- T4 DOUBLE LOOP G9 BASE
- FEATURE 6:
- ENCLOSED FIXTURE RATED
- FEATURE 7:
- 25000 LIFE HOURS
- FEATURE 8:
- RATED FOR 25000 HOURS
- FEATURE 9:
- CULUS LISTED FCC AND ROHS COMPLIANT
- HOUSING COLOR:
- WHITE
- INCANDESCENT EQUIVALENT:
- 40W
- INDOOR OUTDOOR:
- INDOOR
- IP RATING:
- IP20
- LAMP FILAMENT:
- LED
- LENS FINISH:
- FROST
- LENS MATERIAL:
- PLASTIC
- LOCATION RATING:
- DAMP
- LONG DESCRIPTION:
- TRANSFORM YOUR SURROUNDINGS WITH SATCO
- MATERIAL:
- CERAMIC / POLYCARBONATE (PC)
- OPERATING FREQUENCY:
- 60HZ
- OPERATING TEMP:
- -20C (-4F) TO +40C (+104F)
- PACK TYPE:
- BOX
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- TECHNOLOGY:
- LED
- WATTS:
- 5W
- LAMPS:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 3942
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- WIDTH:
- 0.75
- WIDTH RANGE:
- 0-15''
- IMAGE INFO:
- ''''
- BURNING POSITION:
- UNIVERSAL
- More Info {1}:
- 2.13 INCHES LONG BY 0.75 INCHES DEEP
- More Info {2}:
- 3 YEAR WARRANTY
- More Info {3}:
- 5 WATT T4 FROSTED LAMP
- More Info {4}:
- 80 CRI AND 3000K SOFT WHITE COLOR TEMPERATURE
- More Info {5}:
- CULUS LISTED FCC AND ROHS COMPLIANT
- More Info {6}:
- DAMP LOCATION RATED AND DIMMABLE
- More Info {7}:
- G9 BASE FEATURES 500 LUMENS
- More Info {8}:
- RATED FOR 25000 HOURS
- More Info {9}:
- SUITABLE FOR COMMERCIAL APPLICATIONS
- DLC APPROVED:
- NO
- ORDER IN MULTIPLES OF:
- 1
- WATTAGE SELECTABLE:
- NO
- BAA COMPLIANT:
- NO
- 3-WAY:
- #REF!
- INSTALLATION NOTES:
- NOT FOR USE IN VAPOR TIGHT FIXTURES. FOR PROPER VENTILATION ORIGINAL PROTECTIVE GLASS SHIELD FOR HALOGEN LAMPS SHOULD BE REMOVED DURING INSTALLATION.
- MAX. DIAMETER:
- #REF!
- SDS SHEET LINK:
- #REF!
- EFFICACY:
- 100.00 LPW
- ENCLOSED FIXTURE USE:
- YES
- R9 VALUE:
- 2
- ROMANCE COPY:
- TRANSFORM YOUR SURROUNDINGS WITH SATCO
- SHORT DESCRIPTION:
- 5W/LED/G9/830/FR/120V/DIM
- TITLE 20 COMPLIANT:
- NO
- CA PROP-65:
- LEAD
- HID EQUIVALENT:
- 40W
- BULB DIMMABLE:
- YES-DIMMABLE
- EA LENGTH:
- 1.57
- SHAP CARTON WIDTH:
- 1.57''
- TOTAL HARMONIC DISTORTION:
- 70%
- DLC CLASSIFICATION:
- COMMERCIAL GRADE G9
- START TYPE:
- UTILITY
- STYLE:
- UTILITY
