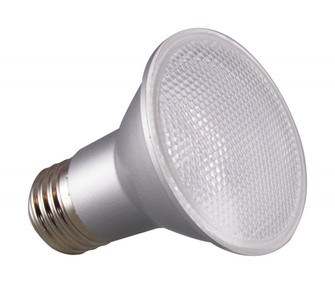

6.5 Watt; PAR20 LED; 4000K; 25 deg. Beam Angle; Medium base; 120 Volt {ADDITIONAL FINISH INFORMATION: ''No Finish''}
- BULB DIMMABLE:
- YES-DIMMABLE
- BULB HOURS:
- 25000
- BULB KELVIN:
- 4000K
- BULB SHAPE:
- PAR20
- DIAMETER:
- 2.44
- HARMONIZED CODES:
- 8539.52.0030
- LENGTH:
- 2.99
- LUMENS:
- 520L
- SHIP CARTON HEIGHT:
- 3.54''
- SHIP CARTON LENGTH:
- 2.56
- SHIP CARTON WIDTH:
- 2.56''
- SHIP WEIGHT:
- 0.15
- VOLTS:
- 120V
- WARRANTY:
- 3 YEAR LIMITED - 12 HR PER DAY
- BEAM SPREAD:
- 25
- BULB ANSI BASE:
- E26
- BULB BASE:
- Medium
- BULB FINISH:
- Clear
- CARTON CUBIC FEET:
- 0.0134
- CARTONS PER UNIT:
- 1
- CBCP:
- 1179
- CEC:
- CALIFORNIA T24 2016 - 2022 JA8 LISTED T20 LISTED
- CEC TERSE:
- Lawful for sale in California
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- COLOR TEMPRATURE:
- COOL WHITE
- CRI:
- 90
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- FLUORESCENT EQUIVALENT:
- 11W
- HOUSING COLOR:
- Silver
- INCANDESCENT EQUIVALENT:
- 50W
- LAMP FILAMENT:
- LED
- LENS:
- YES
- LOCATION RATING:
- Wet
- OPERATING TEMP:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- BOX
- PHOTOCELL:
- No
- WATTS:
- 6.5W
- WIDTH:
- 2.44
- WIDTH RANGE:
- 0-15''
- LAMPS:
- YES
- FINISH:
- SILVER
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- WEIGHT:
- 0.13
- Standard Style:
- Traditional
- DIMMABLE:
- Yes-Dimmable
- DIMMABLE TYPE:
- Thyristor
- AVAILABLE FOR PURCHASE:
- NO
- DIMMABLE FUNCTION:
- DIMMING RANGE FROM 100 TO LESS THAN OR EQUAL TO 20 PERCENT DEPENDING ON DIMMER CONTROL
- QUANTITY AVAILABLE AT MANUFACTURER:
- 850
- CCT SELECTABLE:
- NO
- DIMMING TYPE:
- FORWARD PHASE OR REVERSE PHASE OR PHASE SELECTABLE
- ENCLOSURE RATING1:
- YES
- ES UNIQUE ID:
- ESID-2366321
- FCC COMPLIANT:
- YES
- FEATURE 1:
- SILVER COLORED REFLECTOR
- FEATURE 2:
- WET LOCATION RATED
- FEATURE 3:
- DIMMABLE
- FEATURE 4:
- COOL WHITE COLOR TEMPERATURE
- FEATURE 5:
- LONG LIFE -- 25000 AVERAGE RATED HOURS
- FEATURE 6:
- 11-WATT FLUORESCENT EQUIVALENT AND 50-WATT INCANDESCENT EQUIVALENT
- HAS DRIVER:
- NO
- HAS EMERGENCY BATTERY:
- NO
- INDOOR OUTDOOR:
- INDOOR OUTDOOR
- IOT ENABLED:
- NO
- LENS FINISH:
- CLEAR
- LENS MATERIAL:
- THERMO PLASTIC (PBT)
- LONG DESCRIPTION:
- SATCO'S LED 6.5-WATT PAR20 LAMP MAINTAINS THE FAMILIAR LOOK OF THE HALOGEN PAR AND GEN1 LED LAMPS THEY REPLACE BUT AT 90 CRI AND A HIGHER LUMENS PER WATT RATIO IT DELIVERS SUPERIOR LIGHT AND IMPROVED EFFICIENCY. DESIGNED FOR USE IN TRAC...
- MATERIAL:
- PLASTIC
- OPERATING FREQUENCY:
- 60HZ
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SDS SHEET LINK:
- #REF!
- TECHNOLOGY:
- LED
- BURNING POSITION:
- UNIVERSAL
- ORDER IN MULTIPLES OF:
- 1
- More Info {1}:
- COOL WHITE COLOR TEMPERATURE
- More Info {2}:
- DIMMABLE
- More Info {3}:
- ENERGY STAR RATED
- More Info {4}:
- LONG LIFE -- 25000 AVERAGE RATED HOURS
- More Info {5}:
- SILVER COLORED REFLECTOR
- More Info {6}:
- WET LOCATION RATED
- DLC APPROVED:
- NO
- WATTAGE SELECTABLE:
- NO
- BAA COMPLIANT:
- NO
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EFFICACY:
- 80.00 LPW
- ENCLOSED FIXTURE USE:
- YES
- JA8 COMPLIANT:
- YES
- ROMANCE COPY:
- SATCO'S S29403 LED 6.5-WATT PAR20 LAMP MAINTAINS THE FAMILIAR LOOK OF THE HALOGEN PAR AND GEN1 LED LAMPS THEY REPLACE BUT AT 90 CRI AND A HIGHER LUMENS PER WATT RATIO IT DELIVERS SUPERIOR LIGHT AND IMPROVED EFFICIENCY. DESIGNED FOR USE ...
- SHORT DESCRIPTION:
- 6.5PAR20/LED/25'/940/120V
- STYLE:
- UTILITY
- TITLE 20 COMPLIANT:
- YES
- TITLE 24 COMPLIANT:
- YES
- CA PROP-65:
- LEAD
- IMAGE INFO:
- ''''
- EA LENGTH:
- 2.56
- SHAP CARTON WIDTH:
- 2.56''
- FLOURESCENT EQUIVALENT:
- 11W
- DLC CLASSIFICATION:
- GENERAL SERVICE PARS
- SENSOR TYPE:
- NON FEDERALLY-REGULATED
- START TYPE:
- UTILITY
