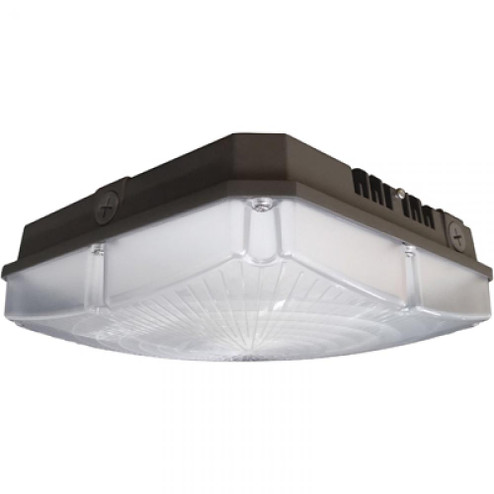

LED Canopy Fixture; 60W; 4000K; 120-277V {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- STYLE:
- Utility
- BULB DIMMABLE:
- 1-10V Dimming Only
- BULB HOURS:
- 50000
- BULB SHAPE:
- Integrated LED
- BULB TYPE:
- LED
- HARMONIZED CODES:
- 9405.11.6020
- LENGTH:
- 10
- LUMENS:
- 7200L
- SHIP CARTON HEIGHT:
- 11.61''
- SHIP CARTON LENGTH:
- 11.89
- SHIP CARTON WIDTH:
- 5.51''
- SHIP WEIGHT:
- 5.51
- VOLTAGE:
- 277V
- WARRANTY:
- 5 Year Limited - Fixtures
- CARTON CUBIC FEET:
- 0.4402
- CARTONS PER UNIT:
- 1
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- COLOR TEMPRATURE:
- Cool White
- CRI:
- 80
- DLC APPROVED:
- Yes
- DLC ID:
- PL6X6DPSGSVK
- IP RATING:
- IP65
- LOCATION RATING:
- Wet
- OPERATING TEMP:
- -40C (-40F) TO +40C (+104F)
- PACK TYPE:
- Box
- PHOTOCELL:
- Multiple Optional Sensors Available
- HEIGHT:
- 3.75
- WIDTH:
- 10.00
- FINISH:
- BRONZE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- BULBS:
- 60W WATT:60W WATT:1
- BEAM ANGLE:
- 150
- STANDARD STYLE:
- TRADITIONAL
- DIMMABLE:
- Yes-Dimmable
- DIMMABLE FUNCTION:
- 0-10V DIMMING ONLY
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- ANSI BASE:
- INTEGRATED
- B_U_G_RATING:
- B3-U3-G2
- CONNECTION:
- DIRECT WIRED
- DIMMING TYPE:
- 0-10V
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- PARKING GARAGE LUMINAIRES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- LENGTH: 10.00 INCHES WIDTH: 10.00 INCHES HEIGHT INCHES: 3.75 INCHES''
- FEATURE 2:
- DIMMABLE
- FEATURE 3:
- WET LOCATION RATED FOR OUTDOOR USE
- FEATURE 4:
- 150 DEGREE BEAM SPREAD
- FEATURE 5:
- SUPERIOR 80 CRI LIGHT QUALITY
- FEATURE 6:
- 5 YEAR LIMITED WARRANTY
- FEATURE 7:
- 7200 LUMENS
- FEATURE 8:
- RATED FOR 50000 HOURS
- FEATURE 9:
- UV STABILIZED POWDER COATED FINISH
- FINISH FAMILY:
- BRONZE
- FIXTURE SHAPE:
- SQUARE
- INDOOR OUTDOOR:
- OUTDOOR
- LONG DESCRIPTION:
- SATCO
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 4000K
- WEIGHT LB.:
- 5.23
- LAMPS:
- YES
- AMPS:
- 0.600-0.217A
- SDS SHEET LINK:
- #REF!
- BULB KELVIN:
- COOL WHITE
- BEAM SPREAD:
- 150
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- LAWFUL FOR SALE
- OPERATING TEMPRATURE:
- -40C (-40F) TO +40C (+104F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CUL - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CCT SELECTABLE:
- NO
- LENS MATERIAL:
- POLYCARBONATE (PC)
- MATERIAL:
- DIE-CAST ALUMINUM
- WATTAGE SELECTABLE:
- NO
- INCANDESCENT EQUIVALENT:
- 300W
- OPERATING FREQUENCY:
- 50/60HZ
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- COOL WHITE
- EACH HEIGHT:
- 11.61''
- EACH LENGTH:
- 11.89
- EACH WIDTH:
- 5.51''
- TARIFF CODE:
- 9405.11.6020
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.4402
- EACH QUANTITY:
- 1
- EFFICACY:
- 120.00 LPW
- JA8 COMPLIANT:
- NO
- R9 VALUE:
- 25
- ROMANCE COPY:
- SATCO
- SHORT DESCRIPTION:
- 60W LED CANOPY FIXTURE 10''
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 11%
