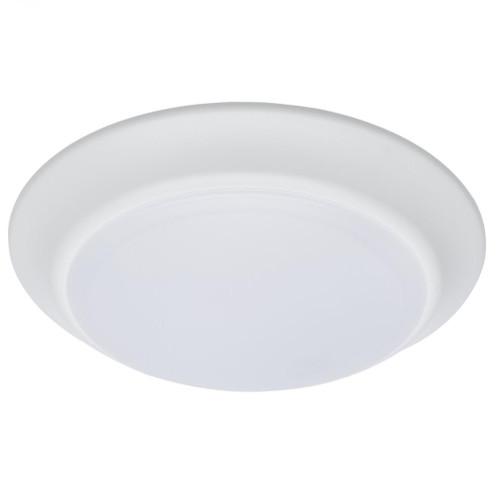

7 inch; LED Disk Light; 5-CCT Selectable 27K/3K/35K/4K/5K; White Finish {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- YES
- BULB HOURS:
- 50000
- BULB KELVIN:
- WARM TO COOL WHITE
- BULB TYPE:
- LED
- DIAMETER:
- 7.42
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.11.8020
- LUMENS:
- 930L-1000L
- SHIP CARTON HEIGHT:
- 7.63''
- SHIP CARTON LENGTH:
- 7.63
- SHIP CARTON WIDTH:
- 1.69''
- WARRANTY:
- 5 YEAR LIMITED - FIXTURES
- AMPS:
- 0.125A
- CA PROP-65:
- LEAD
- CARTON CUBIC FEET:
- 0.0534
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- CALIFORNIA T24 2016 - 2022 JA8 LISTED
- CONNECTION:
- HARDWIRE
- CRI:
- 93
- DIMMING TYPE:
- FORWARD PHASE OR REVERSE PHASE
- FCC COMPLIANT:
- YES
- FIXTURE SHAPE:
- ROUND
- HAS DRIVER:
- NO
- INCANDESCENT EQUIVALENT:
- 60W
- INDOOR OUTDOOR:
- INDOOR
- INSTALLATION NOTES:
- KEYHOLE SLOTS
- IOT ENABLED:
- NO
- LENS MATERIAL:
- ACRYLIC
- MATERIAL:
- STEEL
- MOUNTING PROCEDURE:
- CEILING
- NSF APPROVED:
- NO
- OPERATING FREQUENCY:
- 60HZ
- OPERATING TEMPRATURE:
- -25C (-13F) TO +40C (+104F)
- PACK TYPE:
- COLOR BOX
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- REPLACEABLE LIGHT SOURCE:
- NO
- ROHS COMPLIANT:
- YES
- SAFETY LISTING:
- CETLUS - LISTED
- SLOPED CEILING COMPATIBLE:
- YES
- TEMPERATURE (CCT):
- 2700K/3000K/3500K/4000K/5000K
- WEIGHT LB.:
- 0.58
- CEILING:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 10543
- LOCAL_ON_DISPLAY:
- 1
- ON DISPLAY IN SHOWROOM:
- Yes
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 1.42
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 7.42
- WIDTH RANGE:
- 0-15''
- REQUIRED (NOT INCLUDED):
- 1 15 WATT INTEGRATED BULBS
- BULB SHAPE:
- INTEGRATED LED
- VOLTAGE:
- 120V
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- ES UNIQUE ID:
- ESID-2507677
- SDS CLASS:
- LED_FIXTURE
- STYLE:
- CONTEMPORARY
- BEAM SPREAD:
- 110
- FEATURE 1:
- 5 CCT SELECTABLE
- FEATURE 2:
- DIMMABLE
- FEATURE 3:
- WET LOCATION RATED
- FEATURE 4:
- 93 CRI
- FEATURE 5:
- WHITE
- FEATURE 6:
- MOUNTS TO 3 INCH AND 4 INCH JUNCTION BOXES
- FEATURE 7:
- DIA: 7.42 INCHES X H: 1.42 INCHES
- FEATURE 8:
- DIA: 7.42 INCHES X H: 1.42 INCHES
- LONG DESCRIPTION:
- INTRODUCING SATCO
- REPLACES:
- #REF!
- WATTAGE SELECTABLE:
- NO
- IMAGE INFO:
- ''''
- SDS SHEET LINK:
- #REF!
- BULB VOLTS1:
- 120V
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM TO COOL WHITE
- EACH HEIGHT:
- 7.63''
- EACH LENGTH:
- 7.63
- EACH WIDTH:
- 1.69''
- TARIFF CODE:
- 9405.11.8020
- BAA COMPLIANT:
- NO
- BEAM ANGLE:
- 110
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EACH CUBE:
- 0.0569
- EACH QUANTITY:
- 1
- EFFICACY:
- 62.00/64.33/66.67 LM/W
- JA8 COMPLIANT:
- YES
- R9 VALUE:
- 58
- ROMANCE COPY:
- INTRODUCING SATCO
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- YES
- ANSI BASE:
- INTEGRATED
