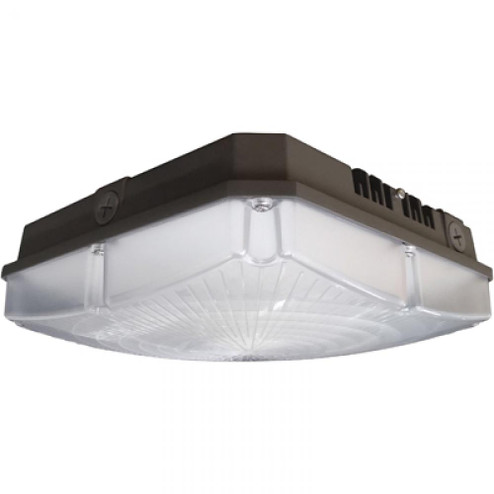

LED Canopy Fixture; 70W; 4000K; 120-277V {ADDITIONAL FINISH INFORMATION: ''Bronze''}
- STYLE:
- Utility
- BULB DIMMABLE:
- 1-10V Dimming Only
- BULB HOURS:
- 50000
- BULB SHAPE:
- Integrated LED
- BULB TYPE:
- LED
- HARMONIZED CODES:
- 9405.11.6020
- LENGTH:
- 10
- LUMENS:
- 8400L
- SHIP CARTON HEIGHT:
- 11.61''
- SHIP CARTON LENGTH:
- 11.89
- SHIP CARTON WIDTH:
- 5.51''
- SHIP WEIGHT:
- 5.95
- VOLTAGE:
- 277V
- WARRANTY:
- 5 Year Limited - Fixtures
- CARTON CUBIC FEET:
- 0.4402
- CARTONS PER UNIT:
- 1
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- COLOR TEMPRATURE:
- Cool White
- CRI:
- 80+
- DLC APPROVED:
- Yes
- DLC ID:
- PLE46C9RR7U7
- IP RATING:
- IP65
- LOCATION RATING:
- Wet
- OPERATING TEMP:
- -40C (-40F) TO +40C (+104F)
- PACK TYPE:
- Box
- PHOTOCELL:
- Multiple Optional Sensors Available
- HEIGHT:
- 3.75
- WIDTH:
- 10
- FINISH:
- SPECIALTY ITEMS
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- LOCAL_CLEARANCE:
- LED|PROP 65
- LOCAL_COUNT_CLEARANCE:
- TRADITIONAL
- BULBS:
- 70W WATT:70W WATT:1
- BEAM ANGLE:
- 150
- STANDARD STYLE:
- CANOPIES
- DIMMABLE:
- Yes-Dimmable
- DIMMABLE FUNCTION:
- 0-10V DIMMING ONLY
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 145
- ANSI BASE:
- INTEGRATED
- B_U_G_RATING:
- B3-U3-G2
- CONNECTION:
- DIRECT WIRED
- DIMMING TYPE:
- 0-10V
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- PARKING GARAGE LUMINAIRES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- LENGTH: 10.00 INCHES WIDTH: 10.00 INCHES HEIGHT INCHES: 3.75 INCHES''
- FEATURE 2:
- DIMMABLE
- FEATURE 3:
- WET LOCATION RATED FOR OUTDOOR USE
- FEATURE 4:
- 150 DEGREE BEAM SPREAD
- FEATURE 5:
- SUPERIOR 80 CRI LIGHT QUALITY
- FEATURE 6:
- 5 YEAR LIMITED WARRANTY
- FEATURE 7:
- 8400 LUMENS
- FEATURE 8:
- RATED FOR 50000 HOURS
- FEATURE 9:
- UV STABILIZED POWDER COATED FINISH
- FINISH FAMILY:
- BRONZE
- FIXTURE SHAPE:
- SQUARE
- INDOOR OUTDOOR:
- OUTDOOR
- LONG DESCRIPTION:
- SATCO NUVO'S 65-148 70 WATT 10 INCH LOW PROFILE CANOPY FIXTURE PROVIDES BROAD EVEN LIGHT DISTRIBUTION IN ALL COMMERCIAL APPLICATIONS. PERFECT FOR COMMERCIAL OR LARGE AREA LIGHTING APPLICATIONS THIS DIMMABLE SQUARE FIXTURE IS MADE OF DI...
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 4000K
- WEIGHT LB.:
- 5.65
- LAMPS:
- YES
- AMPS:
- 0.700-0.253A
- SDS SHEET LINK:
- #REF!
- BULB KELVIN:
- COOL WHITE
- BEAM SPREAD:
- 150
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- LAWFUL FOR SALE
- OPERATING TEMPRATURE:
- -40C (-40F) TO +40C (+104F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CULUS - CERTIFIED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CCT SELECTABLE:
- NO
- LENS MATERIAL:
- POLYCARBONATE (PC)
- MATERIAL:
- DIE-CAST ALUMINUM
- WATTAGE SELECTABLE:
- NO
- INCANDESCENT EQUIVALENT:
- 550W
- OPERATING FREQUENCY:
- 50/60HZ
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- COOL WHITE
- EACH HEIGHT:
- 11.61''
- EACH LENGTH:
- 11.89
- EACH WIDTH:
- 5.51''
- TARIFF CODE:
- 9405.11.6020
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.4402
- EACH QUANTITY:
- 1
- EFFICACY:
- 120.00 LPW
- JA8 COMPLIANT:
- NO
- R9 VALUE:
- 26
- ROMANCE COPY:
- SATCO NUVO'S 70 WATT 10 INCH LOW PROFILE CANOPY FIXTURE PROVIDES BROAD EVEN LIGHT DISTRIBUTION IN ALL COMMERCIAL APPLICATIONS. PERFECT FOR COMMERCIAL OR LARGE AREA LIGHTING APPLICATIONS THIS DIMMABLE SQUARE FIXTURE IS MADE OF DIE CAST ...
- SHORT DESCRIPTION:
- 70W LED CANOPY FIXTURE 10''
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 10.80%
- ORDER IN MULTIPLES OF:
- 1
- IMAGE INFO:
- 4/30/2025 2:00
