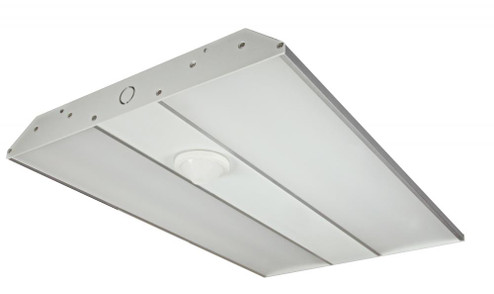

LED 2' Linear Hi-Bay; 75W; 120-277V {ADDITIONAL FINISH INFORMATION: ''Aluminum''}
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- STYLE:
- UTILITY
- BULB HOURS:
- 50000
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.42.6000
- LENGTH:
- 22
- LUMENS:
- 9750L
- SHIP CARTON HEIGHT:
- 3.94''
- SHIP CARTON LENGTH:
- 24.41
- SHIP CARTON WIDTH:
- 17.52''
- SHIP WEIGHT:
- 10.52
- WARRANTY:
- 5 YEAR LIMITED - FIXTURES
- ANSI BASE:
- INTEGRATED
- CARTON CUBIC FEET:
- 0.9751
- CARTONS PER UNIT:
- 1
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- COLOR TEMPRATURE:
- COOL WHITE
- CONNECTION:
- DIRECT WIRED
- CRI:
- 80
- DIMMABLE FUNCTION:
- 0-10V DIMMING ONLY
- DIMMING TYPE:
- 0-10V
- DLC APPROVED:
- NO
- FCC COMPLIANT:
- YES
- FINISH FAMILY:
- SILVER
- INDOOR OUTDOOR:
- INDOOR
- LOCATION RATING:
- DAMP
- MATERIAL:
- ALUMINUM / POLYCARBONATE (PC)
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- OPERATING TEMP:
- -30C (-22F) TO +55C (+131F)
- PACK TYPE:
- BOX
- PHOTOCELL:
- OPTIONAL OCCUPANCY SENSOR
- POWER FACTOR:
- 0.99
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- TEMPERATURE (CCT):
- 4000K
- WEIGHT LB.:
- 9.99
- LAMPS:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 261
- FINISH:
- ALUMINUM
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- STANDARD STYLE:
- TRADITIONAL
- HEIGHT:
- 1.97
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 15.94
- WIDTH RANGE:
- 15-20''
- AMPS:
- 0.750-0.271A
- SDS SHEET LINK:
- #REF!
- SDS CLASS:
- LED_FIXTURE
- BULB KELVIN:
- COOL WHITE
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- LAWFUL FOR SALE
- OPERATING TEMPRATURE:
- -30C (-22F) TO +55C (+131F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CETLUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CCT SELECTABLE:
- NO
- WATTAGE SELECTABLE:
- NO
- INCANDESCENT EQUIVALENT:
- 550W
- REPLACES:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- COOL WHITE
- EACH HEIGHT:
- 3.94''
- EACH LENGTH:
- 24.41
- EACH WIDTH:
- 17.52''
- TARIFF CODE:
- 9405.42.6000
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.9751
- EACH QUANTITY:
- 1
- EFFICACY:
- 130.00 LPW
- JA8 COMPLIANT:
- NO
- SHORT DESCRIPTION:
- 75W LED 2 FT. LINEAR HI-BAY
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
