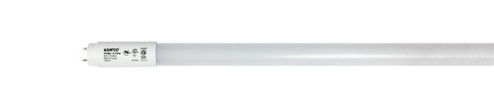

7 Watt; 18 Inch; T8 Linear LED; Medium Bi-Pin G13Base; 6500K; 50000 Average Rated Hours; 770 Lumens; Type B Ballast Bypass {ADDITIONAL FINISH INFORMATION: ''White''}
- BULB HOURS:
- 50000
- BULB KELVIN:
- 6500K
- BULB SHAPE:
- T8
- DIAMETER:
- 1.1
- DIMMABLE:
- Non-Dimmable
- HARMONIZED CODES:
- 8539.52.0051
- LENGTH:
- 17.8
- LUMENS:
- 770L
- SHIP CARTON HEIGHT:
- 1.1''
- SHIP CARTON LENGTH:
- 18
- SHIP CARTON WIDTH:
- 1.1''
- SHIP WEIGHT:
- 0.29
- VOLTS:
- 120V-277V
- WARRANTY:
- 5 YEAR LIMITED - T8 LED BULBS - BALLAST BYPASS
- WEIGHT:
- 0.22
- BEAM SPREAD:
- 160
- BULB ANSI BASE:
- G13
- BULB BASE:
- Medium Bi Pin
- BULB FINISH:
- Frost
- CARTON CUBIC FEET:
- 0.0126
- CARTONS PER UNIT:
- 1
- CEC:
- Exempt - Base Not Regulated
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- COLOR TEMPRATURE:
- DAYLIGHT
- CRI:
- 80+
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- FLUORESCENT EQUIVALENT:
- 15W
- HOUSING COLOR:
- White
- INCANDESCENT EQUIVALENT:
- 75W
- IP RATING:
- IP20
- LAMP FILAMENT:
- LED
- LOCATION RATING:
- DAMP
- NOMINAL LENGTH:
- 18
- NSF APPROVED:
- ETL Sanitation listed (conforms to NSF)
- OPERATING TEMP:
- -25C (-13F) TO +40C (+104F)
- PACK TYPE:
- SLEEVE
- WATTS:
- 7W
- LAMPS:
- YES
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- WIDTH:
- 1.10
- WIDTH RANGE:
- 0-15''
- SHATTER PROOF TEXT:
- PET COATED
- AVAILABLE FOR PURCHASE:
- NO
- QUANTITY AVAILABLE AT MANUFACTURER:
- 18
- BALLAST BYPASS DIRECT:
- BALLAST BYPASS
- BALLASTING REQUIREMENTS:
- BALLAST BYPASS
- CCT SELECTABLE:
- NO
- ENCLOSURE RATING1:
- YES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- LAWFUL FOR SALE IN CALIFORNIA
- FEATURE 2:
- FOR USE INDOORS
- FEATURE 3:
- OPERATING TEMPERATURE: -25C (-13F) TO A MAXIMUM OF +40C (+104F)
- FEATURE 4:
- NON-DIMMABLE
- FEATURE 5:
- MINIMUM ORDER QUANTITY 25
- INDOOR OUTDOOR:
- INDOOR
- IOT ENABLED:
- NO
- LAMP BALLAST TYPE A/B/C:
- TYPE B
- LENS FINISH:
- FROST
- LENS MATERIAL:
- GLASS
- LONG DESCRIPTION:
- SATCO'S S11952 7-WATT 18 INCH LED T8 BULB IS AN IDEAL LIGHTING SOLUTION FOR A VARIETY OF APPLICATIONS. THIS ENERGY SAVING LOW MAINTENANCE LAMP HAS A 160 DEGREE BEAM SPREAD AND A MEDIUM BI PIN BASE. THIS FROSTED BULB IS VERSATILE AND DEL...
- MATERIAL:
- GLASS / PLASTIC
- OPERATING FREQUENCY:
- 50/60HZ
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- RATED FOR VAPOR TIGHT FIXTURE:
- NO
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SDS SHEET LINK:
- #REF!
- TECHNOLOGY:
- LED
- FINISH:
- WHITE
- BURNING POSITION:
- UNIVERSAL
- More Info {1}:
- FOR USE INDOORS
- More Info {2}:
- LAWFUL FOR SALE IN CALIFORNIA
- More Info {3}:
- MINIMUM ORDER QUANTITY 25
- More Info {4}:
- NON-DIMMABLE
- More Info {5}:
- OPERATING TEMPERATURE: -25C (-13F) TO A MAXIMUM OF 40C ( 104F)
- DLC APPROVED:
- NO
- WATTAGE SELECTABLE:
- NO
- BAA COMPLIANT:
- NO
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- EFFICACY:
- 110.00 LPW
- ENCLOSED FIXTURE USE:
- YES
- LAMP END TYPE:
- SINGLE ENDED DOUBLE ENDED
- ROMANCE COPY:
- SATCO'S 7-WATT 18 INCH LED T8 BULB IS AN IDEAL LIGHTING SOLUTION FOR A VARIETY OF APPLICATIONS. THIS ENERGY SAVING LOW MAINTENANCE LAMP HAS A 160 DEGREE BEAM SPREAD AND A MEDIUM BI PIN BASE. THIS FROSTED BULB IS VERSATILE AND DELIVERS 5...
- SHORT DESCRIPTION:
- 7T8/LED/18-865/BP
- TITLE 20 COMPLIANT:
- EXEMPT
- TOTAL HARMONIC DISTORTION:
- 25%
- CA PROP-65:
- LEAD
- IMAGE INFO:
- ''''
- BULB DIMMABLE:
- NON-DIMMABLE
- EA LENGTH:
- 18
- SHAP CARTON WIDTH:
- 1.1''
- FLOURESCENT EQUIVALENT:
- 15W
- INSTALLATION NOTES:
- NOT FOR USE IN VAPOR TIGHT FIXTURES.
- SURGE PROTECTION:
- BUILT-IN-SURGE PROTECTION - 0.7KV
- DLC CLASSIFICATION:
- GENERAL SERVICE TYPE B
- START TYPE:
- UTILITY
- STYLE:
- UTILITY
- DLC ID:
- NO
- TITLE 24 COMPLIANT:
- NO
- JA8 COMPLIANT:
- NO
