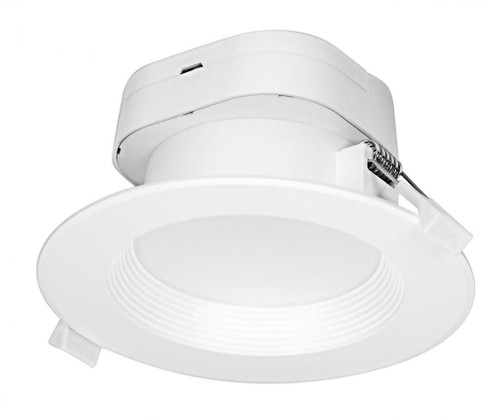

7 watt LED Direct Wire Downlight; 4 inch; 5000K; 120 volt; Dimmable {ADDITIONAL FINISH INFORMATION: ''White / Frosted''}
- REQUIRED (NOT INCLUDED):
- 1 CONNECTOR OR ADAPTER BULBS
- BULB DIMMABLE:
- Yes - Dimmable
- BULB HOURS:
- 40000
- BULB KELVIN:
- Natural Light
- BULB SHAPE:
- Integrated LED
- BULB TYPE:
- LED
- DIAMETER:
- 5.69
- HARMONIZED CODES:
- 9405.11.8010
- LUMENS:
- 490L
- SHIP CARTON HEIGHT:
- 5.9''
- SHIP CARTON LENGTH:
- 5.9
- SHIP CARTON WIDTH:
- 3.54''
- VOLTAGE:
- 120V
- WARRANTY:
- 5 Year Limited - Fixtures
- BEAM SPREAD:
- 100
- CA PROP-65:
- Lead
- CARTON CUBIC FEET:
- 0.0713
- CARTONS PER UNIT:
- 1
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- CEC TERSE:
- Lawful for sale in California
- CEILING APERTURE:
- 4.3125 in. Cutout
- CRI:
- 90
- INCANDESCENT EQUIVALENT:
- 45W
- OPERATING TEMPRATURE:
- -20C (-4F) TO +45C (+113F)
- PACK TYPE:
- Box
- REPLACEABLE LIGHT SOURCE:
- No
- REPLACES:
- S29021
- SAFETY LISTING:
- CETLUS - LISTED
- HEIGHT:
- 2.75
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 5.69
- WIDTH RANGE:
- 0-15''
- CEILING:
- YES
- FINISH:
- FROSTED
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- DIMMABLE:
- Yes-Dimmable
- DIMMABLE TYPE:
- Triac
- AVAILABLE FOR PURCHASE:
- NO
- DIMMABLE FUNCTION:
- DIMMING RANGE FROM 100 TO LESS THAN OR EQUAL TO 20 PERCENT DEPENDING ON DIMMER CONTROL
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- ANSI BASE:
- INTEGRATED
- CLEARANCE HEIGHT:
- 3.94''
- CONNECTION:
- DIRECT WIRED
- DIMMING TYPE:
- FORWARD PHASE OR REVERSE PHASE OR PHASE SELECTABLE OR TRIAC
- FCC COMPLIANT:
- YES
- FEATURE 1:
- INTEGRATED J-BOX FOR DIRECT WIRE INSTALLATION
- FEATURE 2:
- EASY INSTALL SPRING CLIPS
- FEATURE 3:
- IC AND WET LOCATION RATED
- FEATURE 4:
- NO RECESSED CAN REQUIRED
- FEATURE 5:
- H:2.75 D:5.69
- FINISH FAMILY:
- WHITE
- FIXTURE SHAPE:
- ROUND
- IC RATED:
- YES
- INDOOR OUTDOOR:
- INDOOR
- LENS FINISH:
- FROST
- LENS MATERIAL:
- PLASTIC (PS)
- LONG DESCRIPTION:
- SATCO'S S39021 7-WATT LED RECESSED DOWNLIGHT FIXTURE IS DIRECT WIRED AND EMITS NATURAL LIGHT WITH A 100 DEGREE BEAM SPREAD. THIS LED DOWNLIGHT IS AN ENERGY EFFICIENT LIGHTING SOLUTION FOR RETAIL SPACES OFFICES AND DROP CEILINGS. DIMMABL...
- MATERIAL:
- THERMAL CONDUCTIVE PLASTICS & ALUMINUM
- MOUNTING PROCEDURE:
- CEILING
- NUMBER OF LAMPS:
- 1
- OPERATING FREQUENCY:
- 60HZ
- POWER FACTOR:
- 0.95
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- TEMPERATURE (CCT):
- 5000K
- TRIM COLOR:
- WHITE
- WEIGHT LB.:
- 0.37
- LAMPS:
- YES
- STYLE:
- UTILITY
- AMPS:
- 0.058A
- CCT SELECTABLE:
- NO
- More Info {1}:
- EASY INSTALL SPRING CLIPS
- More Info {2}:
- H:2.75 D:5.69
- More Info {3}:
- IC AND WET LOCATION RATED
- More Info {4}:
- INTEGRATED J-BOX FOR DIRECT WIRE INSTALLATION
- More Info {5}:
- NO RECESSED CAN REQUIRED
- SDS CLASS:
- LED_LAMP
- CEC WEB TEXT:
- LAWFUL FOR SALE
- WATTAGE SELECTABLE:
- NO
- AIR TIGHT:
- YES
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EFFICACY:
- 70.00 LPW
- ROMANCE COPY:
- SATCO'S 7-WATT LED RECESSED DOWNLIGHT FIXTURE IS DIRECT WIRED AND EMITS NATURAL LIGHT WITH A 100 DEGREE BEAM SPREAD. THIS LED DOWNLIGHT IS AN ENERGY EFFICIENT LIGHTING SOLUTION FOR RETAIL SPACES OFFICES AND DROP CEILINGS. DIMMABLE AND L...
- SHORT DESCRIPTION:
- 7WLED/DW/RDL/4/50K/120V
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
