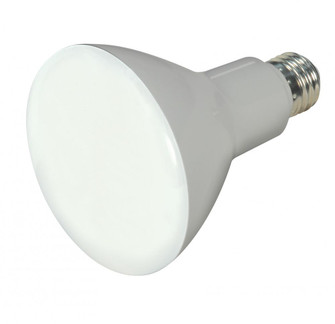

9.5 Watt; BR30 LED; 105 deg. Beam Angle; 5000K; Medium base; 120 Volt; Dimmable {ADDITIONAL FINISH INFORMATION: ''White''}
- BULB DIMMABLE:
- YES-DIMMABLE
- BULB HOURS:
- 25000
- BULB KELVIN:
- 5000K
- BULB SHAPE:
- BR30
- DIAMETER:
- 3.74
- HARMONIZED CODES:
- 8539.52.0030
- LENGTH:
- 5.157
- LUMENS:
- 750L
- SHIP CARTON HEIGHT:
- 5.51''
- SHIP CARTON LENGTH:
- 3.86
- SHIP CARTON WIDTH:
- 3.86''
- SHIP WEIGHT:
- 0.36
- VOLTS:
- 120V
- WARRANTY:
- 5 Year Limited - 10 hr per day
- BEAM SPREAD:
- 105
- BULB ANSI BASE:
- E26
- BULB BASE:
- Medium
- BULB FINISH:
- Frost
- CARTON CUBIC FEET:
- 0.0475
- CARTONS PER UNIT:
- 1
- CBCP:
- 260
- CEC:
- Non-Compliant - <82 CRI
- COLOR TEMPRATURE:
- Natural Light
- CRI:
- 80
- ENCLOSURE RATING:
- NO
- HOUSING COLOR:
- GRAY
- INCANDESCENT EQUIVALENT:
- 65W
- LAMP FILAMENT:
- LED
- LENS:
- YES
- LOCATION RATING:
- Damp
- OPERATING TEMP:
- -25C (-13F) TO +45C (+113F)
- PACK TYPE:
- Box
- WATTS:
- 9.5W
- WIDTH:
- 3.74
- LAMPS:
- YES
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- DIMMABLE:
- Yes-Dimmable
- CEC ALT SUB:
- S28596
- CEC TERSE:
- Non-Compliant
- CEC WEB TEXT:
- Non-Compliant
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- NO
- DIMMABLE FUNCTION:
- DIMMING RANGE FROM 100 TO LESS THAN OR EQUAL TO 20 PERCENT DEPENDING ON DIMMER CONTROL
- QUANTITY AVAILABLE AT MANUFACTURER:
- 14881
- CANDLE POWER:
- 260
- WEIGHT:
- 0.2
- DIMMING TYPE:
- FORWARD PHASE OR REVERSE PHASE OR PHASE SELECTABLE
- ENCLOSURE RATING1:
- OPEN RATED LAMP
- ES UNIQUE ID:
- ESID-2275530
- FCC COMPLIANT:
- YES
- INDOOR OUTDOOR:
- INDOOR
- LENS FINISH:
- FROST
- POWER FACTOR:
- 0.91
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_LAMP
- SDS SHEET LINK:
- SDS/LED_LAMP.PDF
- TECHNOLOGY:
- LED
- CCT SELECTABLE:
- NO
- BURNING POSITION:
- UNIVERSAL
- ORDER IN MULTIPLES OF:
- 1
- DLC APPROVED:
- NO
- WATTAGE SELECTABLE:
- NO
- BAA COMPLIANT:
- NO
- OPERATING FREQUENCY:
- 60HZ
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EFFICACY:
- 78.95 LPW
- ENCLOSED FIXTURE USE:
- NO
- R9 VALUE:
- 3
- SHORT DESCRIPTION:
- 9.5BR30/LED/5000K/750L/120V/D
- STYLE:
- CONTEMPORARY
- TITLE 20 COMPLIANT:
- NO
- EA LENGTH:
- 3.86
- SHAP CARTON WIDTH:
- 3.86''
