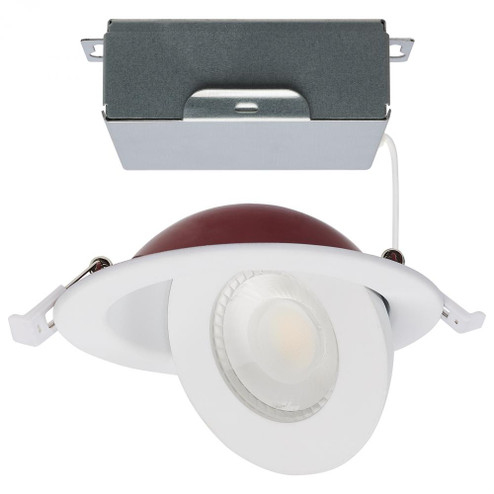

9 Watt LED; Fire Rated; 4 Inch Direct Wire Directional Downlight; Round Shape; White Finish; CCT Selectable; Dimmable; 120 Volts {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- NO
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- STYLE:
- UTILITY
- ADDITIONAL INFO:
- 2HR FIRE RATED: TESTED TO COMPLY WITH UL 263/ASTM E119/CAN-ULC S101-07
- BULB HOURS:
- 50000
- BULB KELVIN:
- WARM WHITE TO NATURAL LIGHT
- BULB TYPE:
- LED
- DIAMETER:
- 4.92
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.11.8010
- LUMENS:
- 650L
- SHIP CARTON HEIGHT:
- 5.08''
- SHIP CARTON LENGTH:
- 5.16
- SHIP CARTON WIDTH:
- 3.19''
- WARRANTY:
- 5-YEARS
- AMPS:
- 0.08A
- BEAM SPREAD:
- 36
- CA PROP-65:
- LEAD
- CAN SIZE:
- 4 IN.
- CARTON CUBIC FEET:
- 0.0484
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- YES
- CEC:
- CALIFORNIA T24 2016 - 2025 JA8 LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- CEILING APERTURE:
- 4.25 IN. CUTOUT
- CLEARANCE HEIGHT:
- 3.0''
- CONNECTION:
- DIRECT WIRED
- CRI:
- 90+
- DIMMING TYPE:
- TRIAC
- ES UNIQUE ID:
- ESID-2684100
- FCC COMPLIANT:
- YES
- FEATURE 1:
- 2-HOUR FIRE RATED
- FEATURE 10:
- IC RATED
- FEATURE 2:
- 4-INCH ROUND
- FEATURE 3:
- DIMMABLE
- FEATURE 4:
- CCT SELECTABLE
- FEATURE 5:
- 360-DEGREE ROTATION 80-DEGREE TILT
- FEATURE 6:
- WHITE TRIM
- FEATURE 7:
- RED PAINTED BACK PLATE
- FEATURE 8:
- WET LOCATION RATED
- FEATURE 9:
- 90 CRI
- FIXTURE SHAPE:
- ROUND
- HAS DRIVER:
- YES
- HAS EMERGENCY BATTERY:
- NO
- IC RATED:
- YES
- INCANDESCENT EQUIVALENT:
- 50W
- INDOOR OUTDOOR:
- INDOOR
- IOT ENABLED:
- NO
- LENS MATERIAL:
- POLY METHYL METHACRYLATE (PMMA)
- MATERIAL:
- ALUMINUM
- MAX DRYWALL THICKNESS:
- 1 IN.
- MOUNTING PROCEDURE:
- CEILING
- OPERATING FREQUENCY:
- 60HZ
- OPERATING TEMPRATURE:
- -20C (-4F) TO +40C (+104F)
- PACK TYPE:
- BOX
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- REC SPACING BETWEEN FIXTURES:
- 3 FT. TO 4 FT.
- REPLACEABLE LIGHT SOURCE:
- NO
- ROHS COMPLIANT:
- YES
- SAFETY LISTING:
- CETLUS - LISTED
- SDS CLASS:
- LED_LAMP
- SLOPED CEILING COMPATIBLE:
- YES
- SPECIFICATION NOTES:
- ROTATION ANGLE 360 DEGREES TILT ANGLE 80 DEGREES
- TEMPERATURE (CCT):
- 2700K/3000K/3500K/4000K/5000K
- WATTAGE SELECTABLE:
- NO
- WEIGHT LB.:
- 1.05
- CEILING:
- YES
- WALL:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- IMAGE INFO:
- ''S11880.JPG:DEFAULT''
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 1.42
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 4.92
- WIDTH RANGE:
- 0-15''
- LONG DESCRIPTION:
- SATCO NUVO'S S11880 4-INCH ROUND FIRE RATED DIRECTIONAL DOWNLIGHT IS THE PERFECT SOLUTION TO INCREASE SAFETY AND OFFER FOCUSED LIGHT. DESIGNED TO PROVIDE EXCEPTIONAL ILLUMINATION THIS DOWNLIGHT ALSO PROVIDES TWO HOURS OF PROTECTION IN THE...
- AIR TIGHT:
- YES
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EFFICACY:
- 72.22 LPW
- JA8 COMPLIANT:
- YES
- R9 VALUE:
- 51
- ROMANCE COPY:
- SATCO NUVO'S FIRE RATED DIRECTIONAL DOWNLIGHTS ARE THE PERFECT SOLUTION TO INCREASE SAFETY AND OFFER FOCUSED LIGHT. DESIGNED TO PROVIDE EXCEPTIONAL ILLUMINATION THESE DOWNLIGHTS ALSO PROVIDE TWO HOURS OF PROTECTION IN THE EVENT OF A FIRE...
- SHORT DESCRIPTION:
- 9WLED/DW-FR/4/CCT-SEL/RND/DIR
- TITLE 20 COMPLIANT:
- EXEMPT
- TITLE 24 COMPLIANT:
- YES
- TOTAL HARMONIC DISTORTION:
- <30%
- TRIM MATERIAL:
- ALUMINUM
- FINISH:
- WHITE
- BULB SHAPE:
- INTEGRATED LED
- ANSI BASE:
- INTEGRATED
- ORDER IN MULTIPLES OF:
- 1
- TRIM COLOR:
- WHITE
- CATEGORY:
- RECESSED
- SUB CATEGORY:
- DIRECT WIRE
- COUNTRY OF ORIGIN:
- VIETNAM
- 4/30/2025 14:
- 17
- STANDARD STYLE:
- RECESSED LIGHTING TRIMS
- 5/2/2025 21:
- 27
- HAS CAMERA:
- NO
