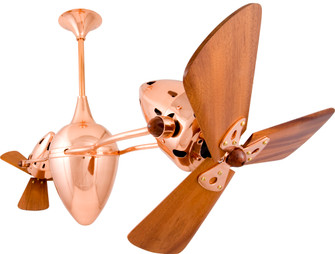

The Ar Ruthiane’s unique hourglass support arms grasp bullet-shaped motor housings which rotate 360° about its teardrop center. The fan heads can be infinitely positioned in 180-degree arcs for optimum air movement; the greater the angles of the motors to the horizontal support rods (up or down), the faster the axial rotation. A slow, controlled axial rotation is achieved by both fan head position and fan blade speed. Matthews 360° rotational fans circulate heat and air conditioning more efficiently than traditional paddle fans. Constructed of cast aluminum, heavy spun and stamped steel, the Ar Ruthiane carries a limited lifetime warranty. {ADDITIONAL FINISH INFORMATION: ''Matte Black, Brushed Nickel, Brushed Brass, Brushed Copper, Bronzette,Polished Copper, Polished Chrome, Polished Brass, Gloss White, Black Nickel, Rubi (red), Esmeralda (green), Ametista (purple), Ouro (gold), Safira (blue), Agua Marinha (light blue)''}
- AVAILABLE FOR PURCHASE:
- NO
- STYLE:
- CONTEMPORARY TRANSITIONAL
- FAMILY NAME:
- AR RUTHIANE
- AIR FLOW CFM:
- 4724
- AIR FLOW EFFICIENCY:
- 48
- BLADE PITCH:
- 19 DEGREES
- BLADES INCLUDED:
- 6
- DEPTH:
- 12'' PLUS DOWNROD
- DOWN ROD INCLUDED:
- LENGTH- 10'' DIAMETER- 3/4''
- ELECTRICITY USED:
- 96.94
- MAX HEIGHT:
- 12'' PLUS DOWNROD''
- MOTOR FAN SPEED:
- 3-SPEED
- MOTOR RPM:
- 1308
- MOTOR TYPE:
- AC
- SHIP CARTON HEIGHT:
- 15''
- SHIP CARTON LENGTH:
- 44
- SHIP CARTON WIDTH:
- 15''
- SOLD IN PACK OF:
- 1
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 21
- 120 V SAFETY RATING:
- UL CUL
- APPLICATION:
- INDOOR OUTDOOR DAMP KITCHEN LIVINGROOM PATIO LANAI PORCH DEN GREAT ROOM
- BLADE MATERIAL:
- SOLID BRAZILIAN MAHOGANY
- BRAND:
- MATTHEWS-GERBAR
- CANCELLABILITY - STOCKING:
- NO
- FAN SHIPPING WEIGHT-LBS:
- 33
- FEATURE:
- THE FOLLOWING BLADE OPTIONS ARE AVAILABLE
- FEATURE1:
- CONSTRUCTED OF CAST ALUMINUM HEAVY SPUN AND STAMPED STEEL THS FAN CARRIES A LIMITED LIFETIME WARRANTY.
- FEATURE2:
- DAMP LOCATION WITH POWDER OR CLEAR COAT ONLY. NOT RECOMMENDED FOR SALT WATER/OCEAN FRONT APPLICATIONS.
- FEATURE3:
- EACH UNIQUE MOTOR MOUNT AND FAN HEAD KNOB IS MADE OF GENUINE MARBLEIZED BAKELITE.
- FEATURE4:
- MATTHEWS ROTATIONAL FANS CIRCULATE HEAT AND AIR CONDITIONING MORE EFFICIENTLY THAN TRADITIONAL PADDLE FANS.
- FEATURE5:
- SAFETY CAGES AVAILABLE FOR LOW CEILING APPLICATIONS.
- FEATURE6:
- STANDARD EQUIPMENT: 10'' DOWNROD. **OPTIONAL: 5'' 20'' 30'' 48'' OR 72'' DOWNRODS AVAILABLE. DOWNRODS CAN BE EASILY FIELD CUT THEY ARE NOT THREADED.
- FEATURE7:
- STANDARD EQUIPMENT: DECORA-STYLE 3-SPEED WALL SWITCH IN WHITE.
- FEATURE8:
- STANDARD EQUIPMENT: FLAT CEILING CANOPY. COMPATIBLE WITH 29 DEGREE SLANT CEILING CANOPY ACCESSORY.
- FEATURE9:
- THE FOLLOWING BLADE OPTIONS ARE AVAILABLE: METAL BLADES WITH DECORATIVE METAL BLADE GUARDS SOLID ECOLOGICALLY HARVESTED BRAZILIAN MAHOGANY BLADES WITHOUT BLADE GUARDS AND METAL BLADES WITH METAL SAFETY CAGES FOR USE IN LOW CEILING APPL...
- HARMONIZED CODE:
- 8414.51.30
- INCLUDED CONTROL EQUIPMENT:
- WALL CONTROL
- INTEGRATED LIGHT KIT:
- NO
- IP RATING:
- NOT AVAILABLE
- LEAD TIME:
- 1-3 DAYS
- LO CRM:
- 2644
- LO RPM:
- 723
- LOCATION RATING:
- INTERIOR/EXTERIOR DAMP
- PROP 20:
- YES
- ROD LENGTH:
- 5'' 10'' 20'' 30'' 48'' 72''
- SAFETY RATING FILE NUMBERS:
- E153494
- STANDARD CARRIERS:
- FEDEX OR UPS
- QUANTITY AVAILABLE AT MANUFACTURER:
- 0
- FINISH:
- WHITE
- IMAGE INFO:
- ''AR-WH-WD-01.JPG:DEFAULT''
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- STANDARD STYLE:
- ''FINISH'':''GLOSS WHITE''
- WIDTH:
- 48.00
- WIDTH RANGE:
- 45-50''
- FAN OR PART:
- FAN
- CATEGORY:
- CEILING
- COUNTRY OF ORIGIN:
- BRAZIL/USA
