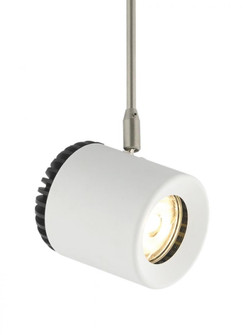

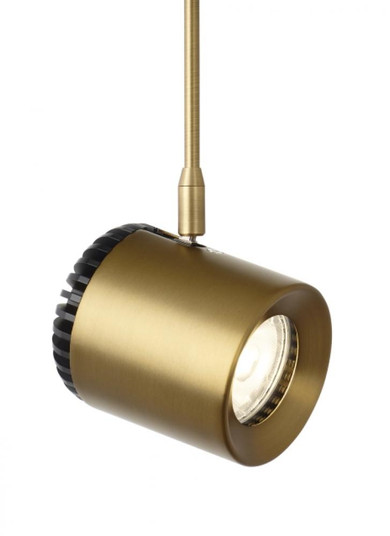

The Burk display head by Sean Lavin combines design simplicity with practical technology. Inspired by telephoto camera lens this simple display head houses a powerful LED source harnessed by field changeable optics for the most precise beam control. The Burk head is highly customizable featuring a plethora of finishes, beam spreads, lamping and stem lengths. Further customize the Burk head by combining it with any complementary VC Modern free-jack or rail system. This low-voltage display head is ideal for commercial lighting applications such as retail stores, libraries and galleries. Available in modern finishes. The Burk ships with your choice of 18° or 40° field changeable optics or integrated lens holders (both sold separately). Includes Field Replaceable 12 Watt, 737.1 Delivered Lumen, 2700K, 3000K Or 3500K Field Replaceable LED Module. Dimmable With Most LED Compatible Elv Or Triac Dimmers. Choice Of 20° Or 35° Field Changeable Optics. Integrated Lens Holder Accommodates Up To Two Mr16 Sized Lenses Or Louvers (Sold Separately). As A General Rule When Using The Burk Head, We Do Not Recommend Using Greater Than 33% Of The Maximum Wattage Specified For The Low Voltage Transformer Due To Inrush Current Requirements. For Assistance In Calculations, Please Contact Technical Support. {ADDITIONAL FINISH INFORMATION: ''Aged Brass''}
- REQUIRED (NOT INCLUDED):
- 1 12 WATT INTEGRATED LED Bulbs
- OPTION:
- Dry Rated
- STYLE:
- Contemporary
- NUMBER OF BULBS:
- 1
- ADDITIONAL INFO:
- Includes field replaceable 12 watt 737.1 delivered lumen 2700K 3000K or 3500K field replaceable LED module. Dimmable with most LED compatible ELV or Triac dimmers. Choice of 15° or 40° field changeable optics. Integrated lens holder acc...
- BULB DIMMABLE:
- YES
- BULB HOURS:
- 50000
- BULB SHAPE:
- Integrated LED
- BULB TYPE:
- INTEGRATED LED
- DESIGNER:
- Sean Lavin
- INTRODUCTION DATE:
- 01/01/2018
- KELVIN:
- 2700
- LENGTH:
- 3.00
- MATERIAL:
- Metal
- MAX HEIGHT:
- 6''
- SHIP CARTON HEIGHT:
- 6''
- SHIP CARTON LENGTH:
- 14
- SHIP CARTON WIDTH:
- 6''
- SHIP WEIGHT:
- 3
- SPECIAL FEATURES:
- Compatible With The Free-Jack Or Rail System Also Available By Tech Lighting
- VENDOR SHIP METHOD:
- UPS FEDEX
- VOLTAGE:
- 12 V
- WARRANTY:
- 5 YEARS
- WEIGHT:
- 2
- WIRE INCLUDED:
- 12''
- ADA COMPLIANT:
- NO
- ADJUSTABLE HEAD:
- FALSE
- CABLE FIELD CUTTABLE:
- NO
- CANNOT SHIP TO CALIFORNIA:
- FALSE
- CANNOT SHIP TO CANADA:
- FALSE
- CRI:
- 90
- DAMP RATED:
- FALSE
- DARK SKY:
- NO
- DEFAULT WATTAGE:
- 14.2
- DIMMER TYPE:
- ELV MLV
- DRY RATED:
- YES
- EFFICACY:
- 44.6
- FWC COMPLIANT:
- FALSE
- HARDWARE MATERIAL:
- Metal
- INTEGRATED LED:
- FALSE
- IS 24 VOLT:
- FALSE
- L70:
- >50000
- LAMP INCLUDED:
- TRUE
- LIGHT OUTPUT:
- 634.0
- MAX WATTAGE:
- 14.2 W
- MINIMUM HEIGHT:
- 6.00''
- MOTION SENSOR INCLUDED:
- FALSE
- PHOTOCELL INCLUDED:
- NO
- REPLACEABLE LAMP:
- NO
- REVERSIBLE:
- FALSE
- SAFETY RATING:
- ETL APPROVED
- SHADE DIAMETER:
- 3
- SHORT DESCRIPTION:
- Mo-Burk Head 927K 20°6 Ab
- SLOPED CEILING COMPATIBLE:
- NO
- SOLAR POWERED:
- FALSE
- SORAA:
- FALSE
- STOCKING TYPE:
- Made to Order
- SYSTEM:
- Monorail
- TITLE 20:
- NO
- TITLE 24:
- NO
- TOTAL MAX WATTAGE:
- 14.2
- TRANSFORMER REQUIRED:
- FALSE
- WARM COLOR DIMMING:
- NO
- WET IP65:
- FALSE
- WET RATED:
- FALSE
- HEIGHT:
- 3.00
- WIDTH:
- 3.60
- CEILING:
- YES
- FINISH:
- BRASS
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- STANDARD STYLE:
- INDUSTRIAL
- STYLE1:
- CONTEMPORARY
- STYLE2:
- Industrial
- STYLE3:
- Urban Loft
- SPECIAL FEATURES1:
- FROM THE BRAND FORMERLY KNOWN AS TECH LIGHTING
- SPECIAL FEATURES2:
- HIGH-TECH DISPLAY HEAD THAT COMBINES SIMPLICITY WITH PRACTICAL TECHNOLOGY
- SPECIAL FEATURES3:
- MONOPOINT VERSION - THE LED DRIVER IS HOUSED WITHIN THE JUNCTION BOX FOR THIS PRODUCT
- SPECIAL FEATURES4:
- PIVOTS 88° AND ABLE TO POINT STRAIGHT DOWN
- SPECIAL FEATURES5:
- PROTECTED BY A 5-YEAR WARRANTY
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- NO
- QUANTITY AVAILABLE AT MANUFACTURER:
- 6
- HEIGHT RANGE:
- 0-15''
- BULBS:
- 14.2 WATT INTEGRATED LED:14.2 WATT INTEGRATED LED:1
- SPECIAL FEATURES6:
- TELEPHOTO CAMERA LENS INSPIRED DESIGN
- 24 VOLT:
- FALSE
- BULB BASE:
- INTEGRATED LED
- BULB CRI:
- 90
- BULB INCLUDED:
- YES
- BULB WATTAGE:
- 14.2 W
- ENERGY STAR:
- NO
- PRIMARY MATERIAL:
- METAL
- UPS FEDEX:
- TRUE
- BEAM SPREAD:
- 18 DEGREES
- FAMILY:
- BURK
- LUMENS / LIGHT OUTPUT:
- 634
- More Info {1}:
- COMPATIBLE WITH THE FREE-JACK OR RAIL SYSTEM ALSO AVAILABLE BY VISUAL COMFORT MODERN COLLECTION
- More Info {2}:
- HIGH-TECH DISPLAY HEAD THAT COMBINES SIMPLICITY WITH PRACTICAL TECHNOLOGY
- More Info {3}:
- PIVOTS 88° AND ABLE TO POINT STRAIGHT DOWN
- More Info {4}:
- PROTECTED BY A 5-YEAR WARRANTY
- More Info {5}:
- TELEPHOTO CAMERA LENS INSPIRED DESIGN
- BATTERY INCLUDED:
- NO
- IP65 RATED:
- NO
- IS SOLAR POWERED:
- NO
- LED:
- NO
- LOCATION RATING:
- DRY RATED
- MIN HEIGHT:
- 6''
- PROP 65:
- NO
- REVERSABLE:
- NO
- STYLE-2:
- MODERN
- STYLE-3:
- INDUSTRIAL URBAN LOFT
- WIRE CORD LENGTH:
- 12''
