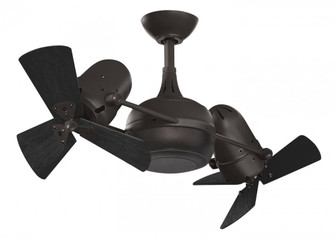

The double-headed 360° rotational fan, Dagny, with cylindrical central housing and straight, parallel arms, is designed in the retrospective aesthetic. The Dagny offers smooth and quiet axial rotation. Its fan heads can be infinitely positioned in 180-degree arcs for optimum air movement; the greater the angles of the motors to the horizontal support rods (up or down), the faster the axial rotation. A slow, controlled axial rotation is achieved by both fan head position and fan blade speed. Matthews rotational fans circulate heat and air-conditioning more efficiently than traditional paddle fans. Constructed of cast aluminum and heavy stamped steel, the Dagny carries a limited lifetime warranty. The Dagny is also available with a light kit as the Dagny-LK. {ADDITIONAL FINISH INFORMATION: ''Textured Bronze''}
- AVAILABLE FOR PURCHASE:
- NO
- STYLE:
- CONTEMPORARY TRANSITIONAL
- FAMILY NAME:
- DAGNY
- AIR FLOW CFM:
- 3168.94
- AIR FLOW EFFICIENCY:
- 42
- BLADE PITCH:
- 31
- BLADES INCLUDED:
- 6
- DEPTH:
- 14'' PLUS DOWNROD
- DOWN ROD INCLUDED:
- 10
- ELECTRICITY USED:
- 80.69
- MAX HEIGHT:
- 86''
- MOTOR FAN SPEED:
- 3-SPEED
- MOTOR RPM:
- 1448
- MOTOR TYPE:
- AC
- SHIP CARTON HEIGHT:
- 14''
- SHIP CARTON LENGTH:
- 40
- SHIP CARTON WIDTH:
- 16''
- SOLD IN PACK OF:
- 1
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 22
- 12:
- SAFETY CAGES AVAILABLE FOR LOW CEILING APPLICATIONS.
- APPLICATION:
- INDOOR OUTDOOR DAMP KITCHEN LIVINGROOM PATIO LANAI PORCH DEN GREAT ROOM
- BLADE MATERIAL:
- STEEL/ABS
- BRAND:
- ATLAS
- CANCELLABILITY - STOCKING:
- YES
- FAN SHIPPING WEIGHT-LBS:
- 33
- FEATURE:
- LIMITED LIFETIME WARRANTY
- FEATURE1:
- STANDARD EQUIPMENT: 10'' DOWNROD. THE FAN CAN BE MOUNTED WITH ANY OF THE FOLLOWING DOWNROD LENGTHS: 5'' 10'' 20'' 30'' 48'' AND 72'' HOWEVER.
- FEATURE2:
- STANDARD EQUIPMENT: HAND-HELD AND WALL-MOUNTABLE 3-SPEED REMOTE CONTROL.
- FEATURE3:
- STANDARD EQUIPMENT: SLANT CEILING CANOPY MOUNTING SYSTEM FOR UP TO 29 DEGREES. OPTIONAL 60 DEGREE CATHEDRAL CANOPY MOUNTING SYSTEM AVAILABLE.
- FEATURE4:
- THE FAN IS AVAILABLE WITH THE FOLLOWING BLADE OPTIONS: - HAND-BALANCED METAL BLADES WITH DECORATIVE METAL BLADE GUARDS - HAND-BALANCED METAL BLADES WITH METAL SAFETY CAGES FOR LOW-CEILING APPLICATIONS - HAND-BALANCED SOLID WOOD BLADES WITH...
- FEATURE5:
- THE FAN IS EQUIPPED WITH A 3 SPEED REMOTE CONTROL AND IS COMPATIBLE WITH THE ACCESSORY WALL CONTROL AT-AC-WALL-DGLK
- HARMONIZED CODE:
- 8414.51.30
- INCLUDED CONTROL EQUIPMENT:
- REMOTE CONTROL
- INTEGRATED LIGHT KIT:
- NO
- IP RATING:
- IP20
- LEAD TIME:
- 3 DAYS
- LO CRM:
- 2199
- LO RPM:
- 1035
- LOCATION RATING:
- DAMP RATED
- PROP 20:
- YES
- ROD LENGTH:
- 5'' 10'' 20'' 30'' 48'' 72''
- SAFETY RATING:
- UL APPROVED CUL APPROVED
- STANDARD CARRIERS:
- FEDEX OR UPS
- WALL:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- FINISH:
- BRONZE
- IMAGE INFO:
- ''DG-TB-MTL-01.JPG:DEFAULT''
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- STANDARD STYLE:
- TRADITIONAL
- WIDTH:
- 40.00
- WIDTH RANGE:
- 35-40''
- FAN OR PART:
- FAN
- OPTION:
- OUTDOOR
- OPTION1:
- TITLE 20
- AMPERAGE:
- 1
- BLADE SPAN:
- 13
- CANOPY:
- 6 W X 6 D X 2 H
- INTRODUCTION DATE:
- 01/01/2020
- LIGHT KIT INCLUDED:
- NO
- MATERIAL:
- CAST ALUMINUM HEAVY STAMPED STEEL ABS
- ORDER MINIMUM:
- 1
- SHIP WEIGHT:
- 33
- VENDOR SHIP METHOD:
- SMALL PARCEL
- More Info {1}:
- 1 AMP
- More Info {2}:
- 360° ROTATION
- More Info {3}:
- ASSEMBLED IN USA
- More Info {4}:
- COMPATIBLE WITH SLANTED CEILINGS UP TO 30 DEGREES FOR FLEXIBLE INSTALLATION. OPTIONAL 60 DEGREES CATHEDRAL CANOPY MOUNTING SYSTEM AVAILABLE
- More Info {5}:
- HAND-BALANCED METAL BLADES WITH DECORATIVE METAL BLADE GUARDS
- More Info {6}:
- INCREASING ANGLES OF FAN HEAD TO SUPPORT POLES INCREASES SPEED OF AXIAL ROTATION
- More Info {7}:
- IP20
- More Info {8}:
- MADE WITH MOISTURE AND HUMIDITY-RESISTANT MATERIALS SUITABLE FOR COVERED OUTDOOR SPACES SUCH AS PATIOS PORCHES OR SUNROOMS
- More Info {9}:
- MEDIUM: ROOMS 76-144 SQ. FT. 36-42 INCH BLADE SPAN
- 10:
- OPTIMUM FAN HEAD POSITION IS 60 DEGREES
- 11:
- QUIET OPERATION WITH A SOOTHING WHITE-NOISE EFFECT
- 13:
- STANDARD EQUIPMENT: 10'' DOWNROD. ADDITIONAL DOWNROD LENGTHS ARE AVAILABLE AND SOLD SEPARATELY TO ACHIEVE THE OPTIMAL LOOK AND FUNCTIONALITY FOR YOUR SPACE
- 14:
- THE FAN IS EQUIPPED WITH A 3 SPEED REMOTE CONTROL AND IS COMPATIBLE WITH THE ACCESSORY WALL CONTROL AT-AC-WALL-DGLK (SOLD SEPARATELY)
- ASSEMBLY REQUIRED:
- YES
- BLADE SIZE:
- 40
- CFM AVERAGE:
- 2684
- CFM HIGH:
- 3169
- CFM LOW:
- 2199
- COLOR:
- BRONZE BROWN
- COMMERCIAL OR RESIDENTIAL USE:
- BOTH
- CONTROL FREQUENCY 110V:
- 304MHZ
- CONTROL FREQUENCY 220V:
- 434MHZ
- DOWNROD DIAMETER:
- 1
- FAN WATTAGE AT HIGH SPEED:
- 80.69
- HANGING TYPE:
- DOWNROD
- HEIGHT ADJUSTABLE:
- YES''
- INDOOR:
- YES
- MARINE RATED:
- NO
- MATERIAL PERCENTAGE:
- 60% CAST ALUMINUM HEAVY STAMPED STEEL 40% SOLID WOOD/BALSA TYPE
- MIN HEIGHT:
- 19''
- MOTOR REVERSIBLE:
- NO
- NOISE LEVEL:
- SOOTHING WHITE NOISE
- NUMBER OF BLADES:
- 6
- NUMBER OF BOXES:
- 1
- NUMBER OF SPEEDS:
- 3
- OSCILLATES:
- NO
- OUTDOOR:
- YES
- PROP 65 DESCRIPTION:
- WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS WHICH ARE KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. WWW.P65WARNINGS.CA.GOV.
- RETURNABLE:
- YES
- RPM HIGH:
- 1448
- RPM LOW:
- 1035
- SHIP CONTAINER:
- BOX
- SHIP LEAD TIME:
- 3 DAYS
- SLOPED CEILING COMPATIBLE:
- YES
- TITLE 20:
- YES
- CEILING:
- YES
- HEIGHT:
- 14.00
