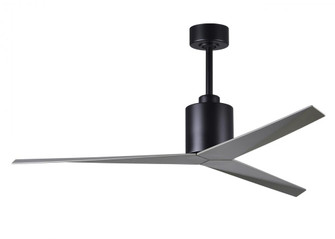

Designed by Chicago architect Stephen Katz in 2013, the wet location Eliza blends a beautiful technically derived form with superior function and movement. The unique blade shape is designed to maximize air movement at the outer edge of the blade. The result is more efficient air velocity rings, less blade drag and greater motor optimization. Equally important is Eliza’s stationary visual statement which combines modern utility with minimalist geometry. Constructed of cast aluminum and heavy stamped steel, the Eliza has a limited lifetime warranty. {ADDITIONAL FINISH INFORMATION: ''Brushed Nickel''}
- AVAILABLE FOR PURCHASE:
- NO
- SIZE:
- 56
- STYLE:
- CONTEMPORARY TRANSITIONAL
- FAMILY NAME:
- ELIZA
- AIR FLOW CFM:
- 5438.53
- AIR FLOW EFFICIENCY:
- 183
- BLADE PITCH:
- 27
- BLADES INCLUDED:
- 3
- DEPTH:
- 12'' PLUS DOWNROD
- DOWN ROD INCLUDED:
- 10
- ELECTRICITY USED:
- 33.13
- MAX HEIGHT:
- 84''
- MOTOR FAN SPEED:
- 6-SPEED
- MOTOR RPM:
- 172
- MOTOR TYPE:
- DC
- SHIP CARTON HEIGHT:
- 13''
- SHIP CARTON LENGTH:
- 30
- SHIP CARTON WIDTH:
- 10''
- SOLD IN PACK OF:
- 1
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 17
- 12:
- SILENT OPERATION FOR COOLING WITHOUT NOISE
- APPLICATION:
- INDOOR OUTDOOR KITCHEN LIVINGROOM PATIO LANAI PORCH DEN BEDROOM NOISE SENSITIVE ENVIRONMENTS GREAT ROOM OFFICE
- BLADE MATERIAL:
- ABS
- BRAND:
- ATLAS
- CANCELLABILITY - STOCKING:
- YES
- FAN SHIPPING WEIGHT-LBS:
- 17
- FEATURE:
- CONSTRUCTED OF CAST ALUMINUM AND HEAVY STAMPED STEEL
- FEATURE1:
- ENERGY EFFICIENT ULTRA-QUIET SIX SPEED REVERSIBLE DC MOTOR WITH NEW RELIABLE TECHNOLOGY.
- FEATURE2:
- LIMITED LIFETIME WARRANTY
- FEATURE3:
- STANDARD EQUIPMENT: SLANT CEILING CANOPY MOUNTING SYSTEM FOR UP TO 29 DEGREES. OPTIONAL 60 DEGREE CATHEDRAL CANOPY MOUNTING SYSTEM AVAILABLE.
- FEATURE4:
- STANDARD EQUIPMENT: - ONE DOWNROD OF 10'' AND CAN BE MOUNTED WITH ANY ONE OF THE FOLLOWING OTHER DOWNROD LENGTHS: 5'' 10'' 20'' 30'' 48'' 72''
- FEATURE5:
- STANDARD EQUIPMENT: ONE SIX SPEED HAND-HELD AND ONE SIX SPEED DECORA STYLE WHITE WALL MOUNTED CONTROL. BOTH CONTROLS REVERSE DIRECTION OF FAN.
- FEATURE6:
- WET LOCATION. NOT RECOMMENDED FOR SALT WATER/OCEAN FRONT APPLICATIONS.
- HARMONIZED CODE:
- 8414.51.30
- INCLUDED CONTROL EQUIPMENT:
- REMOTE CONTROL WALL CONTROL
- INTEGRATED LIGHT KIT:
- NO
- IP RATING:
- IP21
- LEAD TIME:
- 3 DAYS
- LO CRM:
- 1633
- LO RPM:
- 52
- LOCATION RATING:
- INTERIOR EXTERIOR INTERIOR/DAMP INTERIOR/WET EXTERIOR/DAMP OR EXTERIOR/WET
- PROP 20:
- YES
- ROD LENGTH:
- 5'' 10'' 20'' 30'' 48'' 72''
- SAFETY RATING:
- ETL APPROVED CETL APPROVED
- STANDARD CARRIERS:
- FEDEX OR UPS
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- FINISH:
- NICKEL
- IMAGE INFO:
- ''EK-BN-BK-01.JPG:DEFAULT''
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- STANDARD STYLE:
- TRANSITIONAL
- WIDTH:
- 56.00
- WIDTH RANGE:
- 56'' AND OVER
- FAN OR PART:
- FAN
- OPTION:
- OUTDOOR
- OPTION1:
- TITLE 20
- AMPERAGE:
- 0.5
- BLADE SPAN:
- 56
- CANOPY:
- 6 W X 6 D X 2 H
- DESIGNER:
- STEPHEN KATZ
- INTRODUCTION DATE:
- 01/01/2017
- LIGHT KIT INCLUDED:
- NO
- MATERIAL:
- CAST ALUMINUM HEAVY STAMPED STEEL
- ORDER MINIMUM:
- 1
- SHIP WEIGHT:
- 17
- VENDOR SHIP METHOD:
- SMALL PARCEL
- More Info {1}:
- 0.5 AMP
- More Info {2}:
- 7'' HEIGHT FROM FLOOR''
- More Info {3}:
- ABS ALL WEATHER SYSTEM PROTECTED BLADES.
- More Info {4}:
- COMPATIBLE WITH SLANTED CEILINGS UP TO 30 DEGREES FOR FLEXIBLE INSTALLATION. OPTIONAL 60 DEGREES CATHEDRAL CANOPY MOUNTING SYSTEM AVAILABLE
- More Info {5}:
- CONSTRUCTED OF CAST ALUMINUM AND HEAVY STAMPED STEEL
- More Info {6}:
- ENERGY EFFICIENT ULTRA-QUIET SIX SPEED REVERSIBLE DC MOTOR WITH NEW RELIABLE TECHNOLOGY.
- More Info {7}:
- ENHANCE COMFORT AND EFFICIENCY THROUGHOUT DIFFERENT SEASONS BY ADJUSTING THE DIRECTION OF AIRFLOW WITH THE REVERSE FUNCTION
- More Info {8}:
- IDEAL FOR GREAT ROOMS LARGE BASEMENTS OR OPEN-CONCEPT LIVING AREAS.
- More Info {9}:
- IP21
- 10:
- ONE SIX SPEED HAND-HELD AND ONE SIX SPEED DECORA STYLE WHITE WALL MOUNTED CONTROL. BOTH CONTROLS REVERSE DIRECTION OF FAN.
- 11:
- OVERSIZED: ROOMS OVER 400 SQ. FT. 56 INCHES OR LARGER BLADE SPAN
- 13:
- STANDARD EQUIPMENT: 10'' DOWNROD. ADDITIONAL DOWNROD LENGTHS ARE AVAILABLE AND SOLD SEPARATELY TO ACHIEVE THE OPTIMAL LOOK AND FUNCTIONALITY FOR YOUR SPACE
- 14:
- SUITABLE FOR FULLY EXPOSED OUTDOOR AREAS SUCH AS OPEN DECKS PERGOLAS AND GAZEBOS AND DESIGNED TO WITHSTAND ALL WEATHER CONDITIONS
- ASSEMBLY REQUIRED:
- YES
- BLADE SIZE:
- 56
- BLADE WIDTH:
- 2''
- CFM AVERAGE:
- 3474
- CFM HIGH:
- 5308
- CFM LOW:
- 1639
- COLOR:
- NICKEL SILVER GRAY BLACK
- COMMERCIAL OR RESIDENTIAL USE:
- BOTH
- CONTROL FREQUENCY 110V:
- 304MHZ
- CONTROL FREQUENCY 220V:
- 434MHZ
- DOWNROD DIAMETER:
- 1
- FAN WATTAGE AT HIGH SPEED:
- 33.13
- HANGING TYPE:
- DOWNROD
- HEIGHT ADJUSTABLE:
- YES''
- INDOOR:
- YES
- MARINE RATED:
- NO
- MATERIAL PERCENTAGE:
- 50% CAST ALUMINUM 50% HEAVY STAMPED STEEL
- MIN HEIGHT:
- 17''
- MOTOR REVERSIBLE:
- YES
- NOISE LEVEL:
- SILENT
- NUMBER OF BLADES:
- 3
- NUMBER OF BOXES:
- 1
- NUMBER OF SPEEDS:
- 6
- OSCILLATES:
- NO
- OUTDOOR:
- YES
- PROP 65 DESCRIPTION:
- WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS WHICH ARE KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. WWW.P65WARNINGS.CA.GOV.
- RETURNABLE:
- YES
- RPM HIGH:
- 153
- RPM LOW:
- 52
- SHIP CONTAINER:
- BOX
- SHIP LEAD TIME:
- 3 DAYS
- SLOPED CEILING COMPATIBLE:
- YES
- TITLE 20:
- YES
- CEILING:
- YES
- HEIGHT:
- 12.00
