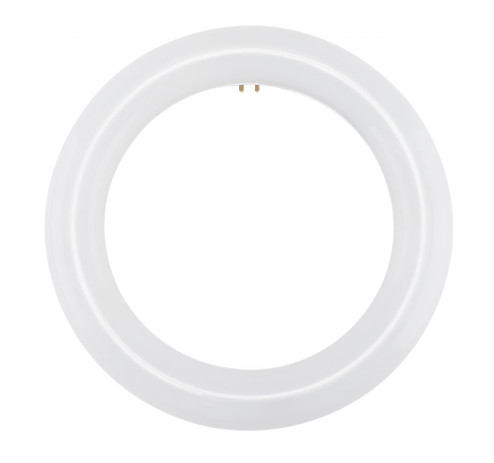

LED Circline; 11 Watt; T9; 6500K; G10Q Base; 120-277 Volt; Type B; Ballast Bypass {ADDITIONAL FINISH INFORMATION: ''White''}
- BULB DIMMABLE:
- BOX
- BULB HOURS:
- 50000
- BULB KELVIN:
- 6500K
- BULB SHAPE:
- T9
- DIAMETER:
- 1.13
- HARMONIZED CODES:
- 8539.52.0091
- LENGTH:
- 8
- LUMENS:
- 1210L
- SHIP CARTON HEIGHT:
- 8.25''
- SHIP CARTON LENGTH:
- 1.38
- SHIP CARTON WIDTH:
- 8.25''
- SHIP WEIGHT:
- 0.24
- VOLTS:
- 120V-277V
- WARRANTY:
- YES
- WEIGHT:
- 0.32
- BEAM SPREAD:
- 135
- BULB ANSI BASE:
- G10q
- BULB BASE:
- G10Q (4-PIN)
- BULB FINISH:
- Frost
- CARTON CUBIC FEET:
- 0.0544
- CARTONS PER UNIT:
- 1
- CEC:
- Exempt - Base Not Regulated
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- COLOR TEMPRATURE:
- 5 YEAR LIMITED - T8 LED BULBS - BALLAST BYPASS
- CRI:
- 80
- ENCLOSURE RATING:
- ENCLOSED RATED LAMP
- FLUORESCENT EQUIVALENT:
- 22W
- HOUSING COLOR:
- White
- LAMP FILAMENT:
- NON-DIMMABLE
- LENS:
- YES
- LOCATION RATING:
- TYPE B
- OPERATING TEMP:
- -25C (-13F) TO +45C (+113F)
- PACK TYPE:
- CETLUS - CLASSIFIED
- WATTS:
- 11W
- WIDTH:
- 1.13
- WIDTH RANGE:
- 0-15''
- LAMPS:
- YES
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- DIMMABLE:
- Non-Dimmable
- AVAILABLE FOR PURCHASE:
- NO
- QUANTITY AVAILABLE AT MANUFACTURER:
- 972
- ADDITIONAL INFO:
- REPLACES 22W FLUORESCENT CIRCLINES
- BALLAST BYPASS DIRECT:
- BALLAST BYPASS
- BALLASTING REQUIREMENTS:
- BALLAST BYPASS
- ENCLOSURE RATING1:
- YES
- FCC COMPLIANT:
- YES
- FEATURE 1:
- MOL: 8.00 INCHES MOD: 8.00 INCHES
- FEATURE 2:
- SUPERIOR 80 CRI LIGHT QUALITY 1210 LUMENS 6500K DAYLIGHT WITH A 135 DEGREE BEAM SPREAD
- FEATURE 3:
- RATED FOR ENCLOSED FIXTURES
- FEATURE 4:
- DAMP LOCATION RATED
- FEATURE 5:
- 11 WATT LED REPLACES 22 WATT FLUORESCENT
- FEATURE 6:
- FROST FINISHED CIRCLINE PLASTIC BULB WITH WHITE HOUSING
- FEATURE 7:
- LED ENERGY EFFICIENT FIXTURE
- FEATURE 8:
- 5 YEAR LIMITED WARRANTY
- LAMP BALLAST TYPE A/B/C:
- TYPE B
- LENS FINISH:
- FROST
- LONG DESCRIPTION:
- SATCO'S S16502 11 WATT T9 LED CIRCLINE TYPE B BALLAST BYPASS LAMP PROVIDES EVEN ENERGY EFFICIENT LIGHT DISTRIBUTION. THE LAMP HAS A G10Q PIN BASE FOR USE WITH MATCHING SMALL DRUM STYLE CEILING FIXTURES AND MAGNIFIER LAMPS. WITH A BEAM SPR...
- MATERIAL:
- SAMSUNG
- OPERATING FREQUENCY:
- 50/60HZ
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- RATED FOR VAPOR TIGHT FIXTURE:
- NO
- ROHS COMPLIANT:
- CIRCLINE
- SDS CLASS:
- LED_LAMP
- SDS SHEET LINK:
- #REF!
- TECHNOLOGY:
- LED
- CCT SELECTABLE:
- NO
- BURNING POSITION:
- UNIVERSAL
- More Info {1}:
- REPLACES 22W FLUORESCENT CIRCLINES
- More Info {2}:
- 5 YEAR LIMITED WARRANTY
- More Info {3}:
- DAMP LOCATION RATED
- More Info {4}:
- LED ENERGY EFFICIENT FIXTURE
- More Info {5}:
- MOL: 8.00 INCHES MOD: 8.00 INCHES
- More Info {6}:
- RATED FOR ENCLOSED FIXTURES
- More Info {7}:
- SUPERIOR 80 CRI LIGHT QUALITY 1210 LUMENS 6500K DAYLIGHT WITH A 135 DEGREE BEAM SPREAD
- DLC APPROVED:
- NO
- WATTAGE SELECTABLE:
- NO
- BAA COMPLIANT:
- NO
- INCANDESCENT EQUIVALENT:
- 50W
- NOMINAL LENGTH:
- 8
- 3-WAY:
- #REF!
- MAX. DIAMETER:
- #REF!
- EFFICACY:
- 110.00 LPW
- ENCLOSED FIXTURE USE:
- YES
- R9 VALUE:
- 15
- ROMANCE COPY:
- SATCO'S 11 WATT T9 LED CIRCLINE TYPE B BALLAST BYPASS LAMP PROVIDES EVEN ENERGY EFFICIENT LIGHT DISTRIBUTION. THE LAMP HAS A G10Q PIN BASE FOR USE WITH MATCHING SMALL DRUM STYLE CEILING FIXTURES AND MAGNIFIER LAMPS. WITH A BEAM SPREAD OF ...
- SHORT DESCRIPTION:
- FC8T9/LED/CIR/865/BP
- STYLE:
- CONTEMPORARY
- TITLE 20 COMPLIANT:
- NO
- CA PROP-65:
- LEAD
- IMAGE INFO:
- ''''
- EA LENGTH:
- 1.38
- SHAP CARTON WIDTH:
- 8.25''
- FLOURESCENT EQUIVALENT:
- 22W
- INSTALLATION NOTES:
- NOT FOR USE IN VAPOR TIGHT FIXTURES.
- SURGE PROTECTION:
- BUILT-IN-SURGE PROTECTION - 0.5KV
- DLC CLASSIFICATION:
- CIRCLINE & U-BEND LAMPS
- INDOOR OUTDOOR:
- DAYLIGHT
- LENS MATERIAL:
- LED
- START TYPE:
- CONTEMPORARY
