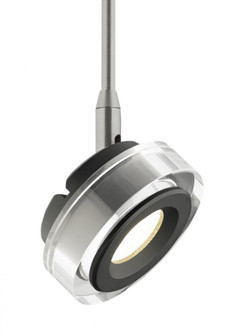

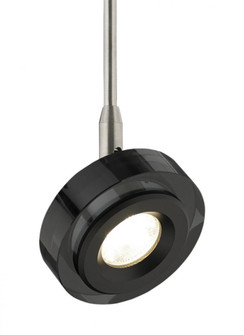

The Brim head and display light by Sean Lavin features a handsome and industrial design while delivering on functionality. The ultra-slim head features field-changeable optics and an optional decorative glass collar. The latest advances in technology deliver an extremely powerful LED head without the bulk typically needed to conceal a driver and manage thermal performance. Available in modern finishes. The Brim head is highly customizable and is compatible with the Monorail and Monopoint systems by VC Modern. This low-voltage display head is ideal for commercial and residential lighting applications. The Brim ships with an integrated lens holder to accommodate two dimmable lenses or louvers (both sold separately). Includes 7 Watt, 647.5 Delivered Lumens, 2700K Or 3000K, 90 Cri Field Replaceable LED Module Dimmable With Most LED Compatible Elv And Triac Dimmers. Choice Of 20°, 30° Or 40° Field Changeable Optics. Integrated Lens Holder Accommodates Up To 2 Lenses Or Louvers (Sold Separately) As A General Rule When Using The Brim Head, We Do Not Recommend Using Greater Than 33% Of The Maximum Wattage Specified For The Low Voltage Transformer Due To Inrush Current Requirements. For Assistance In Calculations, Please Contact Technical Support. {ADDITIONAL FINISH INFORMATION: ''Matte Black''}
- OPTION:
- DRY RATED
- STYLE:
- Contemporary
- NUMBER OF BULBS:
- 1
- BULB DIMMABLE:
- YES
- BULB TYPE:
- INTEGRATED LED
- INTRODUCTION DATE:
- 01/01/2016
- KELVIN:
- 3000
- LENGTH:
- 3.00
- MATERIAL:
- Metal
- SHIP CARTON HEIGHT:
- 17''
- SHIP CARTON LENGTH:
- 3
- SHIP CARTON WIDTH:
- 3''
- SHIP WEIGHT:
- 2.5
- SPECIAL FEATURES:
- Advanced Led Technology
- VENDOR SHIP METHOD:
- UPS FEDEX
- VOLTAGE:
- 12 V
- WEIGHT:
- 1.5
- ADA COMPLIANT:
- NO
- BULB WATTAGE:
- 9.2 W
- CABLE FIELD CUTTABLE:
- NO
- CRI:
- 90
- DAMP RATED:
- FALSE
- DARK SKY:
- NO
- DRY RATED:
- YES
- ENERGY STAR:
- NO
- FWC COMPLIANT:
- FALSE
- ITEM COLOR 1:
- Transparent Smoke
- LIGHT OUTPUT:
- 647.5
- MASTER COLOR:
- Brown
- PRIMARY MATERIAL:
- Metal
- REVERSIBLE:
- FALSE
- SAFETY RATING:
- ETL APPROVED
- SHADE DIAMETER:
- 3
- SHORT DESCRIPTION:
- Fj-Brim 930K 20° 14In Tk B
- STOCKING TYPE:
- Made to Order
- SYSTEM:
- FreeJack
- TITLE 20:
- NO
- TRANSFORMER REQUIRED:
- FALSE
- WARM COLOR DIMMING:
- NO
- WET IP65:
- FALSE
- WET RATED:
- FALSE
- HEIGHT:
- 1.30
- WIDTH:
- 3.00
- FINISH:
- BLACK
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- BULBS:
- 9.2 WATT INTEGRATED LED:9.2 WATT INTEGRATED LED:1
- STANDARD STYLE:
- INDUSTRIAL
- SPECIAL FEATURES1:
- Compatible With The Monorail And Monopoint Systems By Tech Lighting
- SPECIAL FEATURES2:
- Field-Changeable Optics For Ultimate Customization
- SPECIAL FEATURES3:
- FROM THE BRAND FORMERLY KNOWN AS TECH LIGHTING
- SPECIAL FEATURES4:
- Modest Size Profile To Minimize Bulky Appearance
- SPECIAL FEATURES5:
- MONOPOINT VERSION - THE LED DRIVER IS HOUSED WITHIN THE JUNCTION BOX FOR THIS PRODUCT
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 0-15''
- AVAILABLE FOR PURCHASE:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 119
- STYLE1:
- CONTEMPORARY
- STYLE2:
- INDUSTRIAL
- OPTION1:
- TITLE 24
- BULB HOURS:
- 50000
- BULB SHAPE:
- INTEGRATED LED
- MAX HEIGHT:
- 13.8''
- SPECIAL FEATURES6:
- PROTECTED BY A 5-YEAR WARRANTY
- WARRANTY:
- 5 YEARS
- WIRE INCLUDED:
- 13.8''
- 24 VOLT:
- FALSE
- ADJUSTABLE HEAD:
- FALSE
- BULB BASE:
- INTEGRATED LED
- BULB CRI:
- 90
- BULB INCLUDED:
- YES
- CANNOT SHIP TO CALIFORNIA:
- FALSE
- CANNOT SHIP TO CANADA:
- FALSE
- DEFAULT WATTAGE:
- 9.2
- DESIGNER:
- SEAN LAVIN
- DIMMER TYPE:
- ELV
- EFFICACY:
- 126.43
- INTEGRATED LED:
- FALSE
- L70:
- >50000
- LAMP INCLUDED:
- TRUE
- MAX WATTAGE:
- 9.2 W
- MINIMUM HEIGHT:
- 4.80''
- MOTION SENSOR INCLUDED:
- FALSE
- PHOTOCELL INCLUDED:
- NO
- REPLACEABLE LAMP:
- NO
- SLOPED CEILING COMPATIBLE:
- NO
- SOLAR POWERED:
- FALSE
- SORAA:
- FALSE
- TITLE 24:
- YES
- TOTAL MAX WATTAGE:
- 9.2
- UPS FEDEX:
- TRUE
- CEILING:
- YES
- FAMILY:
- BRIM
- BEAM SPREAD:
- 20 DEGREES
- LUMENS / LIGHT OUTPUT:
- 647.5
- More Info {1}:
- ADVANCED LED TECHNOLOGY
- More Info {2}:
- COMPATIBLE WITH THE MONORAIL AND MONOPOINT SYSTEMS BY VISUAL COMFORT MODERN COLLECTION
- More Info {3}:
- FIELD-CHANGEABLE OPTICS FOR ULTIMATE CUSTOMIZATION
- More Info {4}:
- MODEST SIZE PROFILE TO MINIMIZE BULKY APPEARANCE
- More Info {5}:
- PROTECTED BY A 5-YEAR WARRANTY
- BATTERY INCLUDED:
- NO
- COLOR:
- TRANSPARENT SMOKE
- HARDWARE MATERIAL:
- METAL
- IP65 RATED:
- NO
- IS SOLAR POWERED:
- NO
- LED:
- NO
- LOCATION RATING:
- DRY RATED
- MIN HEIGHT:
- 4.8''
- PROP 65:
- NO
- REVERSABLE:
- NO
- STYLE-2:
- MODERN
- STYLE-3:
- INDUSTRIAL
- WIRE CORD LENGTH:
- 13.8''
