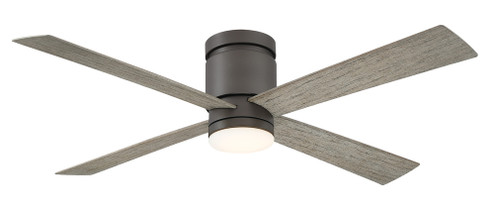

The Kwartet by Fanimation is indeed a beautiful ensemble of sophistication and style. The composition of the intelligent design of this four bladed ceiling fan create a contemporary style that is perfect for any room. The Kwartet is unipacked with fan control, blades available in multiple finishes, and CCT light kit with cap. *Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use *Correlated Color Temperature Select light kit feature for warm, white or cool settings The Kwartet by Fanimation is indeed a beautiful ensemble of sophistication and style. The composition of the intelligent design of this four bladed ceiling fan create a contemporary style that is perfect for any room. The Kwartet is unipacked with fan control, blades available in multiple finishes, and CCT light kit with cap. *Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use *Correlated Color Temperature Select light kit feature for warm, white or cool settings {ADDITIONAL FINISH INFORMATION: ''Matte Greige''}
- REQUIRED (NOT INCLUDED):
- 1 18 WATT CONNECTOR PIN Bulbs
- OPTION:
- DAMP
- GLASS:
- Opal Frosted
- FAMILY:
- Kwartet
- NUMBER OF BULBS:
- 1
- ADDITIONAL INFO:
- 3 speed AC motor with reverse switch
- ADDITIONAL INFO1:
- 4498 CFM in High
- ADDITIONAL INFO2:
- CCT Select light kit feature settings for warm white or cool (3000K 4000K or 5000K)
- ADDITIONAL INFO3:
- TR800 HANDHELD REMOTE WITH 23A BATTERY INCLUDED
- ADDITIONAL INFO4:
- WIFI OR BLUETOOTH COMPATIBLE (REQUIRED CONTROLS SOLD SEPARATELY)
- ADDITIONAL INFO5:
- WIFI OR BLUETOOTH COMPATIBLE (REQUIRED CONTROLS SOLD SEPARATELY)
- AIR FLOW CFM:
- 4498
- AIR FLOW EFFICIENCY:
- 81
- AMPERAGE:
- 0.47
- BLADE FINISH:
- Weathered Wood
- BLADE PITCH:
- 12.5
- BLADES INCLUDED:
- 4
- BULB TYPE:
- LED Module
- CANOPY:
- 7.09 DIA
- DIAMETER:
- 7.09
- ELECTRICITY USED:
- 56
- HARMONIZED CODES:
- 8414.51.3000
- KELVIN:
- 3000 / 4000 / 5000
- LENGTH:
- 52
- LIGHT KIT INCLUDED:
- Yes
- LUMENS / LIGHT OUTPUT:
- 1600
- MATERIAL:
- Composite
- MOTOR FAN SPEED:
- 3
- MOTOR RPM:
- 158
- MOTOR SIZE:
- 153 x 20
- MOTOR TYPE:
- AC
- SHIP CARTON HEIGHT:
- 10.55''
- SHIP CARTON LENGTH:
- 26.18
- SHIP CARTON WIDTH:
- 8.86''
- SHIP WEIGHT:
- 20.57
- SOLD BY:
- EACH
- VOLTAGE:
- 120 V
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 17.18
- AIRFLOW EFFICIENCY LOW:
- 141
- AIRFLOW EFFICIENCY MEDIUM:
- 102
- AVG AIRFLOW EFFICIENCY:
- 91
- AVG CFM ENERGY:
- 3340
- AVG ENERGY USE (WATTS):
- 37
- AVG ESTIMATED YEARLY ENERGY COST:
- 10
- AVG ESTIMATED YEARLY ENERGY COST ON HIGH:
- 16
- BLADE FINISH METHOD:
- Painted
- BLADE REVERSIBLE:
- No
- BLADE SWEEP:
- 52
- BRAND:
- Fanimation
- CAP INCLUDED:
- Yes
- CARTON CUBIC FEET:
- 1.42
- CASE HEIGHT:
- 10.55''
- CASE LENGTH:
- 26.18
- CASE QUANTITY:
- 1
- CASE WEIGHT POUNDS:
- 20.57
- CASE WIDTH:
- 8.86''
- CEC UPLOADED:
- Yes
- CEILING TO BLADE EDGE:
- 11.05
- CEILING TO BOTTOM (NO LK):
- 10.48
- CEILING TO BOTTOM (WITH LK):
- 11.52
- CFM LOW:
- 2027
- CFM MEDIUM:
- 3435
- COMPATIBLE WALL CONTROLS:
- WT503WH
- CONTROL TYPE:
- Handheld
- CRI:
- 90
- CURRENT DRAW LOW:
- 0.24
- CURRENT DRAW MEDIUM:
- 0.37
- DAMP RATED:
- Yes
- DOE CLASSIFICATION:
- LSSD
- DOE-FTC UPLOADED:
- Yes
- EXEMPT FROM DOE PROCEDURE:
- No
- FAN ENERGY STAR 4:
- No
- INCLUDED CONTROL:
- TR800
- LEADWIRE:
- 11
- LIGHT KIT ENERGY STAR 4:
- No
- MOTOR FINISH METHOD TYPE:
- Painted
- MOTOR REVERSIBLE:
- Yes
- REGULATED PRODUCT:
- Yes
- REVERSE SWITCH LOCATION:
- Motor Housing
- RPM LOW (II):
- 71
- RPM MEDIUM (IV):
- 120
- SAFETY RATING:
- UL APPROVED CUL APPROVED
- VOLTAGE CYCLES:
- 60 HZ
- WATTS LOW:
- 14
- WATTS MEDIUM:
- 34
- WATTS PER BULB:
- 18
- CEILING:
- YES
- WALL:
- YES
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- HEIGHT:
- 11.52
- WIDTH:
- 52.00
- WIDTH RANGE:
- 50-55''
- ADDITIONAL INFO6:
- TR800 handheld remote with 23A battery included
- CANOPY1:
- Diameter- 7.09
- BLADE MATERIAL:
- Composite
- BROCHURE:
- Manufacturer Brochure
- CARTONS PER UNIT:
- 1
- CEILING TO BLADE EDGE1:
- 8.6
- CEILING TO BOTTOM (NO LK)1:
- 13.2
- CEILING TO BOTTOM (NO LK)2:
- 13.69
- FINISH:
- GRAY
- Standard Style:
- Traditional
- AVAILABLE FOR PURCHASE:
- YES
- REMOTE CONTROL INCLUDED:
- TR800
- BLADE FINISH METHOD TYPE:
- PAINTED
- NUMBER OF BLADES:
- 4
- PRODUCT CERTIFICATION LABEL:
- UL/CUL
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- IMAGE INFO:
- ''''
- More Info {1}:
- 3 SPEED AC MOTOR WITH REVERSE SWITCH
- More Info {2}:
- 4498 CFM IN HIGH
- More Info {3}:
- CCT SELECT LIGHT KIT FEATURE SETTINGS FOR WARM WHITE OR COOL (3000K 4000K OR 5000K)
- More Info {4}:
- TR800 HANDHELD REMOTE WITH 23A BATTERY INCLUDED
- More Info {5}:
- WIFI OR BLUETOOTH COMPATIBLE (REQUIRED CONTROLS SOLD SEPARATELY)
- AVG ENERGY USE WATTS:
- 37
- BULB BASE:
- CONNECTOR PIN
- BULB CRI:
- 90
- BULB WATTAGE:
- 18
- CANOPY DIAMETER:
- 7.09 DIA
- CEILING TO BOTTOM1:
- 11.52
- COMPATIBLE CONTROLS:
- WFR55
- CURRENT DRAW HIGH:
- 0.47
- DOEFTC UPLOADED:
- YES
- HOUSING DIAMETER:
- 7.09
- INCLUDED CONTROL TYPE:
- HANDHELD
- MAX WATT:
- 56
- NUMBER OF SPEEDS:
- 3
- RPM HIGH (VI):
- 158
