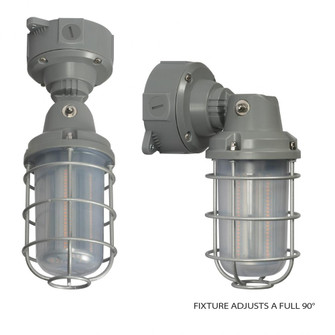

LED Adjustable Vapor Tight Fixture; 20W; CCT Selectable 3K/4K/5K; Gray Finish {ADDITIONAL FINISH INFORMATION: ''Gray''}
- AVAILABLE FOR PURCHASE:
- YES
- BULBS:
- 20W WATT:20W WATT:1
- STYLE:
- UTILITY
- BULB HOURS:
- 50000
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIAMETER:
- 4.72
- DIMMABLE:
- NON-DIMMABLE
- EXTENDS:
- 7.09
- HARMONIZED CODES:
- 9405.42.6000
- LUMENS:
- 1700L-2000L
- SHIP CARTON HEIGHT:
- 15.94''
- SHIP CARTON LENGTH:
- 5.63
- SHIP CARTON WIDTH:
- 5.63''
- VOLTAGE:
- 120V-277V
- WARRANTY:
- 5 YEAR LIMITED - FIXTURES
- BEAM ANGLE:
- 210
- CARTON CUBIC FEET:
- 0.2924
- CARTONS PER UNIT:
- 1
- COLOR TEMPRATURE:
- WARM TO COOL WHITE
- CRI:
- 80
- IP RATING:
- IP65
- LOCATION RATING:
- WET
- OPERATING TEMP:
- -30C (-22F) TO +50C (+122F)
- PACK TYPE:
- BOX
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 2KV
- QUANTITY AVAILABLE AT MANUFACTURER:
- 351
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 13.19
- WIDTH:
- 4.72
- WIDTH RANGE:
- 0-15''
- SHIP WEIGHT:
- 5.1
- CCT SELECTABLE:
- YES
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- CONNECTION:
- DIRECT WIRED
- ES UNIQUE ID:
- ESID-2394485
- FCC COMPLIANT:
- YES
- FEATURE 1:
- CCT SELECTABLE (3000K/4000K/5000K)
- FEATURE 2:
- ADJUSTABLE DESIGN
- FEATURE 3:
- 2KV - BUILT IN SURGE PROTECTION
- FEATURE 4:
- 5 YEAR WARRANTY
- FEATURE 5:
- IP65 RATED
- FEATURE 6:
- ENERGY STAR COMPLIANT
- FINISH FAMILY:
- GRAY
- INDOOR OUTDOOR:
- OUTDOOR
- IOT ENABLED:
- NO
- LONG DESCRIPTION:
- 65-550 SATCO'S NEW LED ADJUSTABLE VAPOR TIGHT FIXTURE OFFERS HIGH QUALITY LIGHTING THAT WILL WORK IN ANY NUMBER OF SITUATIONS. WITH THE CLASSIC VAPOR TIGHT DESIGN UPGRADED WITH CCT SELECTABLE LED TECHNOLOGY THIS RUGGED 20 WATT IP65 RAT...
- MATERIAL:
- DIE-CAST ALUMINUM
- MOUNTING PROCEDURE:
- CEILING/WALL
- OPERATING FREQUENCY:
- 50/60HZ
- POWER FACTOR:
- >0.9
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 3000K/4000K/5000K
- WEIGHT LB.:
- 4.19
- REQUIRED (NOT INCLUDED):
- 1 20 WATT INTEGRATED BULBS
- AMPS:
- 0.167-0.072A
- SDS SHEET LINK:
- #REF!
- LENS FINISH:
- FROST
- LENS MATERIAL:
- GLASS
- NUMBER OF LAMPS:
- 1
- LAMPS:
- YES
- BULB KELVIN:
- WARM TO COOL WHITE
- BEAM SPREAD:
- 210
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- LAWFUL FOR SALE
- INCANDESCENT EQUIVALENT:
- 125W
- OPERATING TEMPRATURE:
- -30C (-22F) TO +50C (+122F)
- REPLACEABLE LIGHT SOURCE:
- NO
- SAFETY LISTING:
- CETLUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- IMAGE INFO:
- ''''
- ANSI BASE:
- INTEGRATED
- WATTAGE SELECTABLE:
- NO
- REPLACES:
- #REF!
- BULB VOLTS1:
- 120V-277V
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM TO COOL WHITE
- EACH HEIGHT:
- 15.94''
- EACH LENGTH:
- 5.63
- EACH WIDTH:
- 5.63''
- TARIFF CODE:
- 9405.42.6000
- BAA COMPLIANT:
- NO
- EACH CUBE:
- 0.2924
- EACH QUANTITY:
- 1
- EFFICACY:
- 85.00/92.50/100.00 LPW
- JA8 COMPLIANT:
- NO
- ROMANCE COPY:
- SATCO'S NEW LED ADJUSTABLE VAPOR TIGHT FIXTURE OFFERS HIGH QUALITY LIGHTING THAT WILL WORK IN ANY NUMBER OF SITUATIONS. WITH THE CLASSIC VAPOR TIGHT DESIGN UPGRADED WITH CCT SELECTABLE LED TECHNOLOGY THIS RUGGED 20 WATT IP65 RATED DURAB...
- SHORT DESCRIPTION:
- LED ADJUSTABLE VAPOR TIGHT
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- <20%
