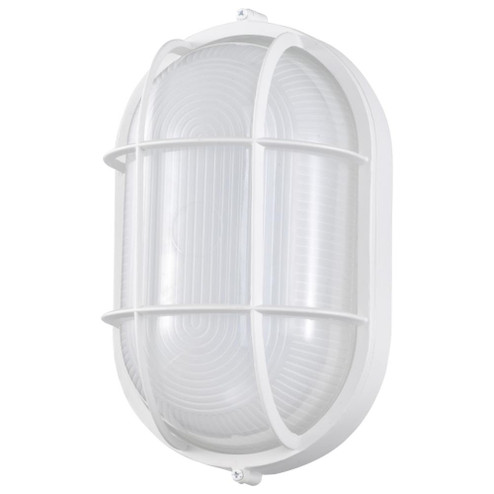

LED Oval Bulk Head Fixture; White Finish with White Glass {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- NO
- BULB HOURS:
- 50000
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIMMABLE:
- YES-DIMMABLE
- EXTENDS:
- 5.05
- HARMONIZED CODES:
- 9405.11.6010
- LUMENS:
- 1000L
- SHIP CARTON HEIGHT:
- 12''
- SHIP CARTON LENGTH:
- 6.13
- SHIP CARTON WIDTH:
- 7.88''
- WARRANTY:
- 5 YEAR LIMITED - FIXTURES
- CARTON CUBIC FEET:
- 0.3354
- CARTONS PER UNIT:
- 1
- CEC:
- CALIFORNIA T24 2016 - 2022 JA8 LISTED
- COLOR TEMPRATURE:
- WARM WHITE
- CRI:
- 90
- DIMMABLE FUNCTION:
- DIMMING RANGE FROM 100 TO LESS THAN OR EQUAL TO 20 PERCENT DEPENDING ON DIMMER CONTROL
- GLASS:
- WHITE
- LOCATION RATING:
- WET
- OPERATING TEMP:
- -17C (-1.4F) TO +45C (+113F)
- PACK TYPE:
- BOX
- PHOTOCELL:
- NO
- QUANTITY AVAILABLE AT MANUFACTURER:
- 0
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 11.03
- WIDTH:
- 6.46
- WIDTH RANGE:
- 0-15''
- SHIP WEIGHT:
- 2.87
- CCT SELECTABLE:
- NO
- CONNECTION:
- HARDWIRE
- ES UNIQUE ID:
- ESID-2393483
- FCC COMPLIANT:
- YES
- FEATURE 1:
- UV STABILIZED POWDER COATED FINISH
- FEATURE 2:
- DIE-CAST ALUMINUM BODY
- FEATURE 3:
- RATED FOR 50000 HOURS
- FEATURE 4:
- DIMMABLE
- FEATURE 5:
- WET LOCATION CERTIFIED
- FEATURE 6:
- T24/JA8 COMPLIANT
- FEATURE 7:
- ENERGY STAR CERTIFIED
- FEATURE 8:
- 5 YEAR WARRANTY
- FINISH FAMILY:
- WHITE
- HAS DRIVER:
- NO
- HAS EMERGENCY BATTERY:
- NO
- INDOOR OUTDOOR:
- OUTDOOR
- IOT ENABLED:
- NO
- LENS FINISH:
- WHITE
- LENS MATERIAL:
- GLASS
- LONG DESCRIPTION:
- 62-1390 IS A MEMBER OF SATCO NUVO'S NEWEST COLLECTION OF LIGHTING STANDARD FIXTURES DESIGNED TO INCORPORATE THE LATEST ENERGY-EFFICIENT LED TECHNOLOGY WITH RUGGED CASE AND LENS MATERIALS BUILT TO WITHSTAND THE ELEMENTS. THIS OVAL BULKHEAD ...
- MATERIAL:
- DIE-CAST ALUMINUM
- MOUNTING PROCEDURE:
- WALL
- QUANTITY IN PACK:
- 1
- ROHS COMPLIANT:
- YES
- SDS CLASS:
- LED_FIXTURE
- SURGE PROTECTION:
- BUILT-IN SURGE PROTECTION - 1KV
- TEMPERATURE (CCT):
- 3000K
- WEIGHT LB.:
- 2.57
- STYLE:
- TRADITIONAL
- AMPS:
- 0.154A
- SDS SHEET LINK:
- #REF!
- BULB KELVIN:
- WARM WHITE
- CA PROP-65:
- LEAD
- CEC WEB TEXT:
- CALIFORNIA T24 LISTED
- INCANDESCENT EQUIVALENT:
- 75W
- OPERATING TEMPRATURE:
- -17C (-1.4F) TO +45C (+113F)
- REPLACEABLE LIGHT SOURCE:
- NO
- REPLACES:
- #REF!
- SAFETY LISTING:
- CETLUS - LISTED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- IMAGE INFO:
- ''''
- STANDARD STYLE:
- TRADITIONAL
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- ANSI BASE:
- INTEGRATED
- WATTAGE SELECTABLE:
- NO
- OPERATING FREQUENCY:
- 60HZ
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- WARM WHITE
- EACH HEIGHT:
- 12''
- EACH LENGTH:
- 6.13
- EACH WIDTH:
- 7.88''
- TARIFF CODE:
- 9405.11.6010
- BAA COMPLIANT:
- NO
- DIMMABLE DOWN TO:
- 100 TO 10 PERCENT
- EACH CUBE:
- 0.3354
- EACH QUANTITY:
- 1
- EFFICACY:
- 54.05 LPW
- JA8 COMPLIANT:
- YES
- R9 VALUE:
- 59
- ROMANCE COPY:
- SATCO NUVO'S NEWEST COLLECTION OF LIGHTING STANDARD FIXTURES ARE DESIGNED TO INCORPORATE THE LATEST ENERGY-EFFICIENT LED TECHNOLOGY WITH RUGGED CASE AND LENS MATERIALS BUILT TO WITHSTAND THE ELEMENTS. THESE FIXTURES ARE PERFECT FOR OUTDOOR...
- SHORT DESCRIPTION:
- LED OVAL BULK HEAD
- TITLE 20 COMPLIANT:
- NO
- TITLE 24 COMPLIANT:
- YES
- POWER FACTOR:
- 0.91
