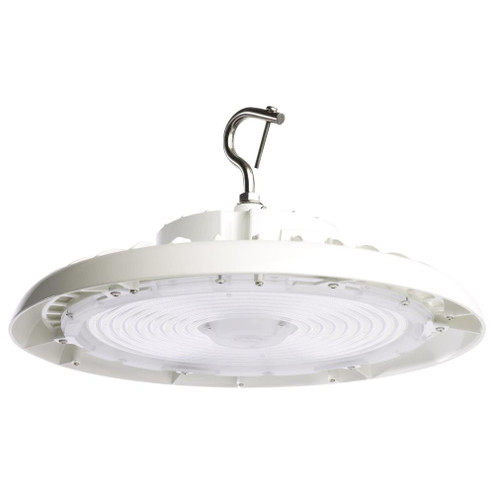

200 Watt UFO LED High Bay; 5000K; 28800 Lumens; 120-277 Volt; White Finish {ADDITIONAL FINISH INFORMATION: ''White''}
- AVAILABLE FOR PURCHASE:
- YES
- REQUIRED (NOT INCLUDED):
- 1 INTEGRATED BULBS
- STYLE:
- UTILITY
- BULB HOURS:
- 50000
- BULB KELVIN:
- NATURAL LIGHT
- BULB SHAPE:
- INTEGRATED LED
- BULB TYPE:
- LED
- DIAMETER:
- 13.39
- DIMMABLE:
- YES-DIMMABLE
- HARMONIZED CODES:
- 9405.11.6020
- LUMENS:
- 28800L
- SHIP CARTON HEIGHT:
- 4.92''
- SHIP CARTON LENGTH:
- 14.17
- SHIP CARTON WIDTH:
- 14.17''
- WARRANTY:
- 5 YEAR LIMITED - FIXTURES
- WIRE INCLUDED:
- 72
- BEAM SPREAD:
- 90
- CA PROP-65:
- LEAD
- CARTON CUBIC FEET:
- 0.5717
- CARTONS PER UNIT:
- 1
- CCT SELECTABLE:
- NO
- CRI:
- 80
- DIMMABLE FUNCTION:
- 0-10V DIMMING ONLY
- DLC CLASSIFICATION:
- PREMIUM
- DLC PRIMARY USE:
- HIGH-BAY LUMINAIRES FOR COMMERCIAL AND INDUSTRIAL BUILDINGS
- FCC COMPLIANT:
- YES
- FEATURE 1:
- INTEGRATED SENSOR PORT
- FEATURE 2:
- IP65
- FEATURE 3:
- 6KV SURGE PROTECTION
- FEATURE 4:
- 6 FOOT WHIP
- FEATURE 5:
- 90 DEGREE BEAM ANGLE
- FEATURE 6:
- 50000 HOURS
- FEATURE 7:
- 5 YEAR WARRANTY
- HAS EMERGENCY BATTERY:
- NO
- HID EQUIV:
- 600W
- IMPACT RATING (IK):
- IK08
- INCANDESCENT EQUIVALENT:
- 1500W
- INCLUDES:
- LOCKING HANGING HOOK 6 FOOT WHIP
- INDOOR OUTDOOR:
- INDOOR
- INSTALLATION NOTES:
- MOUNTING HEIGHT: UP TO 30 FEET''
- IP RATING:
- IP65
- LENS MATERIAL:
- POLYCARBONATE (PC)
- LONG DESCRIPTION:
- SATCO
- MATERIAL:
- DIE-CAST ALUMINUM
- MOUNTING PROCEDURE:
- PENDANT HANGING SURFACE
- NSF APPROVED:
- YES
- OPERATING FREQUENCY:
- 50/60HZ
- OPERATING TEMPRATURE:
- -40C (-40F) TO +50C (+122F)
- PACK TYPE:
- KRAFT BOX
- PHOTOCELL:
- OPTIONAL ADD-ON
- POWER FACTOR:
- 0.9
- QUANTITY IN PACK:
- 1
- REPLACEABLE LIGHT SOURCE:
- NO
- REPLACES:
- #REF!
- ROHS COMPLIANT:
- YES
- SAFETY LISTING:
- CULUS - LISTED
- SDS CLASS:
- LED_FIXTURE
- TEMPERATURE (CCT):
- 5000K
- WATTAGE SELECTABLE:
- NO
- WEIGHT LB.:
- 6.42
- QUANTITY AVAILABLE AT MANUFACTURER:
- 268
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- HEIGHT:
- 8.11
- HEIGHT RANGE:
- 0-15''
- WIDTH:
- 13.39
- AMPS:
- 1.667-0.722A
- CEC:
- T20 EXEMPT - FIXTURES NOT REGULATED
- CEC TERSE:
- LAWFUL FOR SALE IN CALIFORNIA
- CEC WEB TEXT:
- LAWFUL FOR SALE
- ANSI BASE:
- INTEGRATED
- IMAGE INFO:
- ''''
- SDS SHEET LINK:
- #REF!
- AVG RATED HOURS:
- 50000
- BULB SHAPE1:
- INTEGRATED LED
- BULB TYPE1:
- LED
- COLOR TEMPERATURE:
- NATURAL LIGHT
- EACH HEIGHT:
- 4.92''
- EACH LENGTH:
- 14.17
- EACH WIDTH:
- 14.17''
- TARIFF CODE:
- 9405.11.6020
- WIRE LENGTH:
- 72
- BAA COMPLIANT:
- NO
- BEAM ANGLE:
- 90
- DIMMABLE DOWN TO:
- 100 TO 20 PERCENT
- EACH CUBE:
- 0.5717
- EACH QUANTITY:
- 1
- EFFICACY:
- 144.00 LPW
- JA8 COMPLIANT:
- NO
- R9 VALUE:
- 5
- ROMANCE COPY:
- SATCO
- SHORT DESCRIPTION:
- LED UFO HIGHBAY 200W/5000K
- TITLE 20 COMPLIANT:
- NO
- TOTAL HARMONIC DISTORTION:
- 15%
