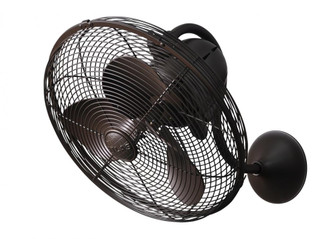

The oscillating Melody, 3–speed wall-mounted fan, designed in the Art Nouveau style with a grand, arching gooseneck, provides maximum multi-directional airflow with its 90° left to right sweep. Melody can be mounted in small, awkward spaces or in front of HVAC ducts to improve the efficiency of the heating, ventilation or air conditioning of any space. Constructed of cast aluminum and heavy stamped steel, the Melody carries a limited lifetime warranty. {ADDITIONAL FINISH INFORMATION: ''Textured Bronze''}
- AVAILABLE FOR PURCHASE:
- NO
- STYLE:
- CONTEMPORARY TRANSITIONAL
- FAMILY NAME:
- MELODY
- AIR FLOW CFM:
- 1302.65
- AIR FLOW EFFICIENCY:
- 48
- BLADE PITCH:
- 31
- BLADES INCLUDED:
- 3
- ELECTRICITY USED:
- 47.68
- MAX HEIGHT:
- 20
- MOTOR FAN SPEED:
- 3-SPEED
- MOTOR RPM:
- 1495
- MOTOR TYPE:
- AC
- SHIP CARTON HEIGHT:
- 16''
- SHIP CARTON LENGTH:
- 27
- SHIP CARTON WIDTH:
- 17''
- SOLD IN PACK OF:
- 1
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 14
- 120 V SAFETY RATING:
- ETL CETL
- APPLICATION:
- INDOOR OUTDOOR DAMP KITCHEN LIVINGROOM PATIO LANAI PORCH DEN OFFICE BATHROOM BEDROOM
- BLADE MATERIAL:
- STEEL/ABS
- BRAND:
- ATLAS
- CANCELLABILITY - STOCKING:
- YES
- EXTENSION FROM WALL:
- 20
- FAN SHIPPING WEIGHT-LBS:
- 16
- FEATURE:
- A THREE-WIRE SYSTEM IS NEEDED TO OPERATE THE OSCILLATION MECHANISM INDEPENDENT OF THE FAN BLADES.
- FEATURE1:
- CONSTRUCTED OF CAST ALUMINUM AND HEAVY STAMPED STEEL.
- FEATURE2:
- LIMITED LIFETIME WARRANTY
- FEATURE3:
- REMOTE CONTROL IS POSSIBLE. PLEASE INQUIRE FOR DETAILS.
- FEATURE4:
- STANDARD EQUIPMENT: SIDE-MOUNTED WALL JUNCTION BOX
- FEATURE5:
- STANDARD EQUIPMENT: 3-SPEED DECORA STYLE WHITE WALL CONTROL.
- HARMONIZED CODE:
- 8414.51.90
- INCLUDED CONTROL EQUIPMENT:
- WALL CONTROL
- INTEGRATED LIGHT KIT:
- NO
- IP RATING:
- IP20
- LEAD TIME:
- 3 DAYS
- LO CRM:
- 868
- LO RPM:
- 1213
- LOCATION RATING:
- DAMP RATED
- SAFETY RATING:
- ETL APPROVED CETL APPROVED
- STANDARD CARRIERS:
- FEDEX OR UPS
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- FINISH:
- BRONZE
- IMAGE INFO:
- ''ME-TB-01.JPG:DEFAULT''
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- STANDARD STYLE:
- TRANSITIONAL
- WIDTH:
- 13.00
- FAN OR PART:
- FAN
- OPTION:
- OUTDOOR
- AMPERAGE:
- 0.5
- BLADE SPAN:
- 13
- DEPTH:
- 20
- INTRODUCTION DATE:
- 01/01/2020
- LIGHT KIT INCLUDED:
- NO
- MATERIAL:
- CAST ALUMINUM HEAVY STAMPED STEEL
- ORDER MINIMUM:
- 1
- SHIP WEIGHT:
- 16
- VENDOR SHIP METHOD:
- SMALL PARCEL
- More Info {1}:
- 0.5 AMP
- More Info {2}:
- 3-SPEED DECORA STYLE WHITE WALL CONTROL INCLUDED
- More Info {3}:
- 90 DEGREES OSCILLATION
- More Info {4}:
- A THREE-WIRE SYSTEM IS NEEDED TO OPERATE THE OSCILLATION MECHANISM INDEPENDENT OF THE FAN BLADES
- More Info {5}:
- CONSTRUCTED OF CAST ALUMINUM AND HEAVY STAMPED STEEL
- More Info {6}:
- IP20
- More Info {7}:
- MEDIUM: ROOMS 76-144 SQ. FT. 36-42 INCH BLADE SPAN
- More Info {8}:
- RECOMMENDED MOUNTING HEIGHT: APPROXIMATELY 24
- More Info {9}:
- SAFETY CAGES AVAILABLE FOR LOW CEILING APPLICATIONS.
- 10:
- SIDE-MOUNTED WALL JUNCTION BOX
- BLADE SIZE:
- 13
- CFM AVERAGE:
- 1086
- CFM HIGH:
- 1303
- CFM LOW:
- 868
- COLOR:
- BRONZE BROWN
- COMMERCIAL OR RESIDENTIAL USE:
- BOTH
- FAN WATTAGE AT HIGH SPEED:
- 47.68
- INDOOR:
- YES
- MARINE RATED:
- NO
- MATERIAL PERCENTAGE:
- 50% CAST ALUMINUM 50% HEAVY STAMPED STEEL
- MOTOR REVERSIBLE:
- NO
- NOISE LEVEL:
- SOOTHING WHITE NOISE
- NUMBER OF BLADES:
- 3
- NUMBER OF BOXES:
- 1
- NUMBER OF SPEEDS:
- 3
- OSCILLATES:
- YES
- OUTDOOR:
- YES
- PROP 65 DESCRIPTION:
- WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS WHICH ARE KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. WWW.P65WARNINGS.CA.GOV.
- RETURNABLE:
- YES
- RPM HIGH:
- 1495
- RPM LOW:
- 1213
- SHIP CONTAINER:
- BOX
- SHIP LEAD TIME:
- 3 DAYS
- SLOPED CEILING COMPATIBLE:
- NO
- CEILING:
- YES
- HEIGHT:
- 20.00
- HEIGHT RANGE:
- 15-20''
